SAXSdb — 9ozj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein transport protein Sec23A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Protein transport protein Sec24A × 1 （O95486） Vesicle-trafficking protein SEC22b × 1 （O75396） ZINC ION × 2 (2~{R})-2-phenylcyclopropane-1,1-dicarboxylic acid × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SC23A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–765； UniProt 1–765

Protein transport protein Sec24A

Homo sapiens

UniProt O95486

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Protein transport protein Sec23A × 1 （Q15436） Vesicle-trafficking protein SEC22b × 1 （O75396） ZINC ION × 2 (2~{R})-2-phenylcyclopropane-1,1-dicarboxylic acid × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SC24A_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–748； UniProt 346–1093

Vesicle-trafficking protein SEC22b

Homo sapiens

UniProt O75396

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Protein transport protein Sec23A × 1 （Q15436） Protein transport protein Sec24A × 1 （O95486） ZINC ION × 2 (2~{R})-2-phenylcyclopropane-1,1-dicarboxylic acid × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SC22B_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–157； UniProt 1–157

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ozj
Deposition date deposition_date	2025-06-05
Last revision last_revision	2026-06-10
Structure title title	Structure of human Sec23a/Sec24a/Sec22b bound to ligand CPD1
Keywords keywords	protein trafficking, COPII, ERAD, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ozj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ozj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

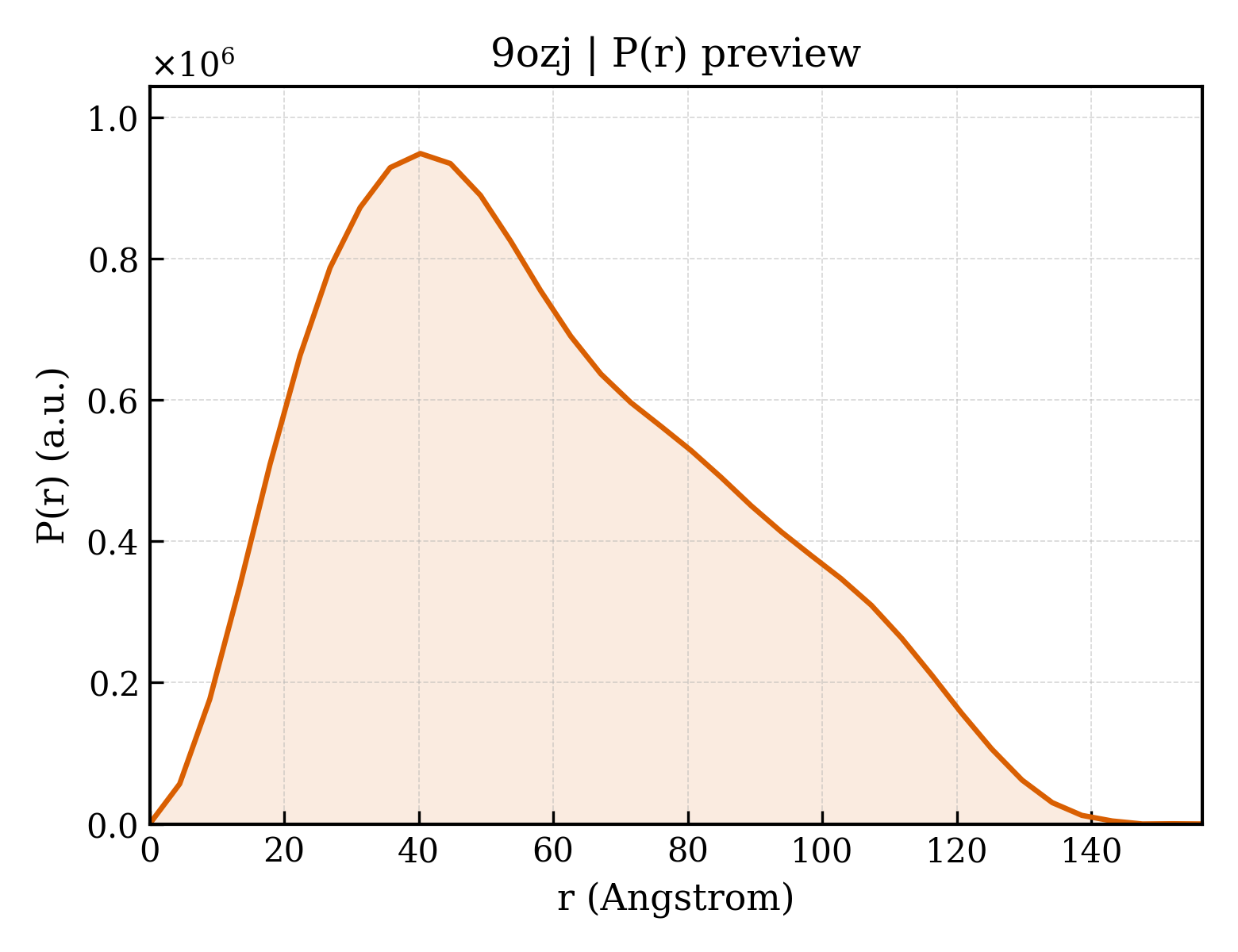

9ozj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.47 Å
Rg (electron density)	45.65 Å
Total Rg	45.64 Å
Atom count	12110
Residues	1548
Excluded volume	217070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ozj__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Protein transport protein Sec23A
Molecular weight formula_weight	86249.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	12143

MTTYLEFIQQNEERDGVRFSWNVWPSSRLEATRMVVPVAALFTPLKERPDLPPIQYEPVLCSRTTCRAVLNPLCQVDYRAKLWACNFCYQRNQFPPSYAGISELNQPAELLPQFSSIEYVVLRGPQMPLIFLYVVDTCMEDEDLQALKESMQMSLSLLPPTALVGLITFGRMVQVHELGCEGISKSYVFRGTKDLSAKQLQEMLGLSKVPLTQATRGPQVQQPPPSNRFLQPVQKIDMNLTDLLGELQRDPWPVPQGKRPLRSSGVALSIAVGLLECTFPNTGARIMMFIGGPATQGPGMVVGDELKTPIRSWHDIDKDNAKYVKKGTKHFEALANRAATTGHVIDIYACALDQTGLLEMKCCPNLTGGYMVMGDSFNTSLFKQTFQRVFTKDMHGQFKMGFGGTLEIKTSREIKISGAIGPCVSLNSKGPCVSENEIGTGGTCQWKICGLSPTTTLAIYFEVVNQHNAPIPQGGRGAIQFVTQYQHSSGQRRIRVTTIARNWADAQTQIQNIAASFDQEAAAILMARLAIYRAETEEGPDVLRWLDRQLIRLCQKFGEYHKDDPSSFRFSETFSLYPQFMFHLRRSSFLQVFNNSPDESSYYRHHFMRQDLTQSLIMIQPILYAYSFSGPPEPVLLDSSSILADRILLMDTFFQILIYHGETIAQWRKSGYQDMPEYENFRHLLQAPVDDAQEILHSRFPMPRYIDTEHGGSQARFLLSKVNPSQTHNNMYAWGQESGAPILTDDVSLQVFMDHLKKLAVSSAA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 2 Entity 2 polymer

Description description	Protein transport protein Sec24A
Molecular weight formula_weight	84422.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EGLRVVNLLQERNMLPSTPLKPPVPNLHEDIQKLNCNPELFRCTLTSIPQTQALLNKAKLPLGLLLHPFKDLVQLPVVTSSTIVRCRSCRTYINPFVSFLDQRRWKCNLCYRVNDVPEEFLYNPLTRVYGEPHRRPEVQNATIEFMAPSEYMLRPPQPPVYLFVFDVSHNAVETGYLNSVCQSLLDNLDLLPGNTRTKIGFITFDSTIHFYGLQESLSQPQMLIVSDIEDVFIPMPENLLVNLNESKELVQDLLKTLPQMFTKTLETQSALGPALQAAFKLMSPTGGRMSVFQTQLPTLGVGALKPREEPNHRSSAKDIHMTPSTDFYKKLALDCSGQQVAVDLFLLSGQYSDLASLGCISRYSAGSVYYYPSYHHQHNPVQVQKLQKELQRYLTRKIGFEAVMRIRCTKGLSIHTFHGNFFVRSTDLLSLPNVNPDAGYAVQMSVEESLTDTQLVSFQSALLYTSSKGERRIRVHTLCLPVVSTLNDVFLGADVQAISGLLANMAVDRSMTASLSDARDALVNAVIDSLSAYRSSVLSNQQPGLMVPFSLRLFPLFVLALLKQKSFQTGTNARLDERIFAMCQVKNQPLVYLMLTTHPSLYRVDNLSDEGALNISDRTIPQPPILQLSVEKLSRDGAFLMDAGSVLMLWVGKNCTQNFLSQVLGVQNYASIPQPMTDLPELDTPESARIIAFISWLREQRPFFPILYVIRDESPMKANFLQNMIEDRTESALSYYEFLLHIQQQVNK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 3 Entity 3 polymer

Description description	Vesicle-trafficking protein SEC22b
Molecular weight formula_weight	18031.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MVLLTMIARVADGLPLAASMQEDEQSGRDLQQYQSQAKQLFRKLNEQSPTRCTLEAGAMTFHYIIEQGVCYLVLCEAAFPKKLAFAYLEDLHSEFDEQHGKKVPTVSRPYSFIEFDTFIQKTKKLYIDSRARRNLGSINTELQDVQRIMVANIEEVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	(2~{R})-2-phenylcyclopropane-1,1-dicarboxylic acid
Molecular weight formula_weight	206.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	33

▶

Unit-cell length a length_a	147.639 Å
Unit-cell length b length_b	96.477 Å
Unit-cell length c length_c	130.684 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.720 Å
Low-resolution limit resolution_low	130.680 Å
R factor r_factor	0.2126
R_work r_work	0.2105
R_free r_free	0.2595
