SAXSdb — 9p0d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemolysin

Bordetella pertussis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1529–1680	Not recorded	SR STRONTIUM ION × 8 CL CHLORIDE ION × 1 NA SODIUM ION × 1 FOR FORMYL GROUP × 2 GOL GLYCEROL × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；Buffer: 100 mM amino acids, 100 mM imidazole, 100 mM 2-(N-morpholino)ethanesulfonic acid (MES), pH 6.5. Precipitant: 37.5% v/v of 25% v/v 2-Methyl-2,4-pentanediol (MPD), 25% w/v PEG 1000, 25% w/v PEG 3350	Resolution 1.50 Å R-free 0.201

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9P0D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5CXL CRYSTAL STRUCTURE OF RTX DOMAIN BLOCK V OF ADENYLATE CYCLASE TOXIN FROM BORDETELLA PERTUSSIS Deposited 2015-07-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1529–1681（153 aa） Fragment：BLOCK V OF RTX DOMAIN (UNP RESISDUES 1529-1681)	Not recorded	CA CALCIUM ION × 8 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291.15 K；BUFFER COMPOSITION: 5 mM TRIS-HCL PH=7.4, 150 mM NaCl, 10 mM CaCl2. PRECIPITANT COMPOSITION: 0.2 M MAGNESIUM NITRATE, 20% V/V PEG 3350,	Resolution 1.45 Å R-free 0.207
5CXL CRYSTAL STRUCTURE OF RTX DOMAIN BLOCK V OF ADENYLATE CYCLASE TOXIN FROM BORDETELLA PERTUSSIS Deposited 2015-07-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1529–1681（153 aa） Fragment：BLOCK V OF RTX DOMAIN (UNP RESISDUES 1529-1681)	Not recorded	CA CALCIUM ION × 8 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291.15 K；BUFFER COMPOSITION: 5 mM TRIS-HCL PH=7.4, 150 mM NaCl, 10 mM CaCl2. PRECIPITANT COMPOSITION: 0.2 M MAGNESIUM NITRATE, 20% V/V PEG 3350,	Resolution 1.45 Å R-free 0.207
6SUS Crystal structure of RTX domain blocks IV and V of adenylate cyclase toxin from Bordetella pertussis Deposited 2019-09-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1371–1690（320 aa）	Not recorded	CA CALCIUM ION × 15 PGE TRIETHYLENE GLYCOL × 2 GOL GLYCEROL × 2 NO3 NITRATE ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M NH4NO3 20% w/v PEG 3350	Resolution 1.76 Å R-free 0.201
9P0C Crystal structure of Ca2+-bound RTX domain block V of adenylate cyclase toxin from Bordetella pertussis Deposited 2025-06-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1529–1680（152 aa）	Not recorded	CA CALCIUM ION × 8 ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289.15 K；Buffer: 40 mM polyamines, 100 mM glycylglycine and 2-Amino-2-methyl-1,3-propanediol (AMPD), pH 8.5. Precipitant: 31% v/v of 10% w/v PEG 20k, 50% w/v trimethylpropane (TMP), 2% w/v NDSB-195.	Resolution 1.70 Å R-free 0.208
9P0C Crystal structure of Ca2+-bound RTX domain block V of adenylate cyclase toxin from Bordetella pertussis Deposited 2025-06-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1529–1680（152 aa）	Not recorded	CA CALCIUM ION × 8 ZN ZINC ION × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289.15 K；Buffer: 40 mM polyamines, 100 mM glycylglycine and 2-Amino-2-methyl-1,3-propanediol (AMPD), pH 8.5. Precipitant: 31% v/v of 10% w/v PEG 20k, 50% w/v trimethylpropane (TMP), 2% w/v NDSB-195.	Resolution 1.70 Å R-free 0.208
9P6C RTX domain block V of adenylate cyclase toxin with mutations D1533N, A1542N, D1560N, S1569N, D1587N, H1598N, H1608N Deposited 2025-06-18	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1529–1680（152 aa）	Mutation：D1533N, A1542N, D1560N, S1569N, D1587N, H1598N, H1608N	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；Buffer: 0.1 M MES, 0.1 M imidazole, pH 6.5 Precipitant: 12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD; 0.02 M of each amino acid (L-glutamate, DL-alanine, glycine, DL-lysine, and DL-serine) Protein solution: 50 mM Tris, 150 mM NaCl, 10 mM CaCl2, pH 8	Resolution 1.99 Å R-free 0.292
9P6C RTX domain block V of adenylate cyclase toxin with mutations D1533N, A1542N, D1560N, S1569N, D1587N, H1598N, H1608N Deposited 2025-06-18	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1529–1680（152 aa）	Mutation：D1533N, A1542N, D1560N, S1569N, D1587N, H1598N, H1608N	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；Buffer: 0.1 M MES, 0.1 M imidazole, pH 6.5 Precipitant: 12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD; 0.02 M of each amino acid (L-glutamate, DL-alanine, glycine, DL-lysine, and DL-serine) Protein solution: 50 mM Tris, 150 mM NaCl, 10 mM CaCl2, pH 8	Resolution 1.99 Å R-free 0.292

4 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYAA_BORPE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 20–171； UniProt 1529–1680

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9p0d
Deposition date deposition_date	2025-06-06
最后修订 last_revision	2026-01-07
Structure title title	Crystal structure of Sr2+-bound RTX domain block V of adenylate cyclase toxin from Bordetella pertussis
Keywords keywords	ion binding, beta roll, cation binding, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.03 Å
Radius of gyration Rg (electron density) rg_electron	15.11 Å
Forward intensity I(0) i0	6788470.00
Molecular weight molecular_weight	17359.0 kDa
Excluded volume excluded_volume	20751 Å³
Envelope volume envelope_volume	23027 Å³
Hydration-shell volume shell_volume	13099 Å³
Envelope diameter envelope_diameter	56.9 Å
Shell Rg shell_rg	20.77 Å
Envelope Rg envelope_rg	15.60 Å
Shape Rg shape_rg	15.09 Å
Total Rg total_rg	16.10 Å
Total atoms total_atoms	1181
Residues n_residues	156
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.2 Å
Rg (real space) rg_real	15.98 Å
Rg uncertainty (real space) rg_real_error	0.40 Å
I(0) (real space) i0_real	6.7880e+06
I(0) uncertainty (real space) i0_real_error	7.9390e+04
Rg (reciprocal space) rg_reciprocal	15.99 Å
I(0) (reciprocal space) i0_reciprocal	6788000.0000
Solution quality estimate total_estimate	0.7821
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	21.0 Å
Skewness Skewness skewness	0.268
Kurtosis Kurtosis kurtosis	-0.109
Angular range angular_range	— – 0.4950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	485300.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.729; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Hemolysin
Molecular weight formula_weight	19009.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1297

MRGSHHHHHHGSHMELGASGSARDDVLIGDAGANVLNGLAGNDVLSGGAGDDVLLGDEGSDLLSGDAGNDDLFGGQGDDTYLFGVGYGHDTIYESGGGHDTIRINAGADQLWFARQGNDLEIRILGTDDALTVHDWYRDADHRVEIIHAANQAVDQAGIEKLVEAMAQYPDEFTSLEKN

来源 Source

来源生物 organism	Bordetella pertussis
NCBI Class编号 ncbi_taxonomy_id	520
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	STRONTIUM ION
Molecular weight formula_weight	87.6 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	FORMYL GROUP
Molecular weight formula_weight	30.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.540 Å
Unit-cell length b length_b	73.095 Å
Unit-cell length c length_c	73.839 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	1.502 Å
Low-resolution limit resolution_low	30.949 Å
R factor r_factor	—
R_work r_work	0.1745
R_free r_free	0.2014

fit	/app/data/saxs_computation/p0/9p0d/9p0d.fit
pddf	/app/data/pr_computation/p0/9p0d/9p0d.pr.out
profile	/app/data/saxs_computation/p0/9p0d/9p0d.dat

Crystal structure of Sr2+-bound RTX domain block V of adenylate cyclase toxin from Bordetella pertussis

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemolysin

State in the Current Structure

Other States of the Same Protein in the Database

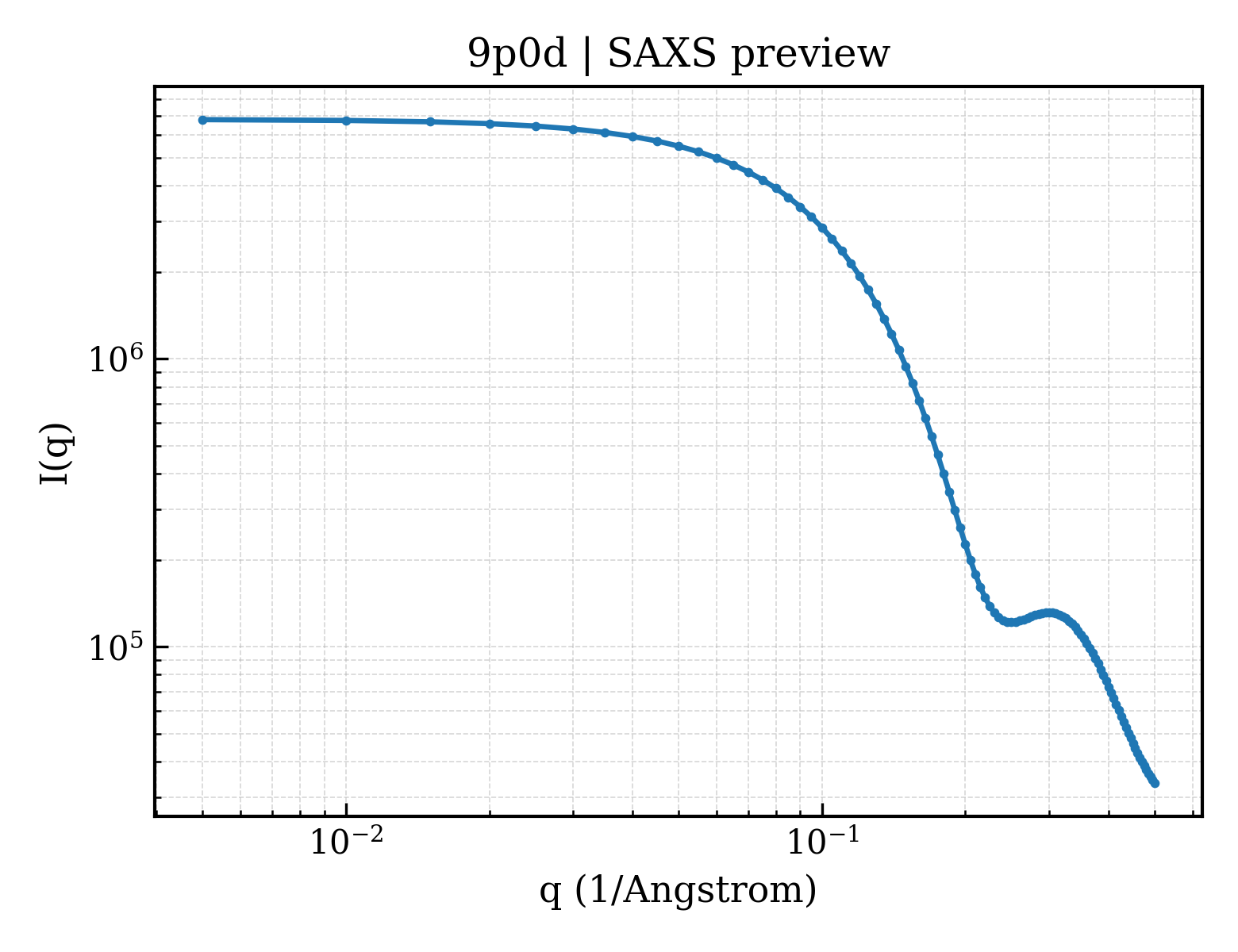

SAXS scattering curve SAXS Profile

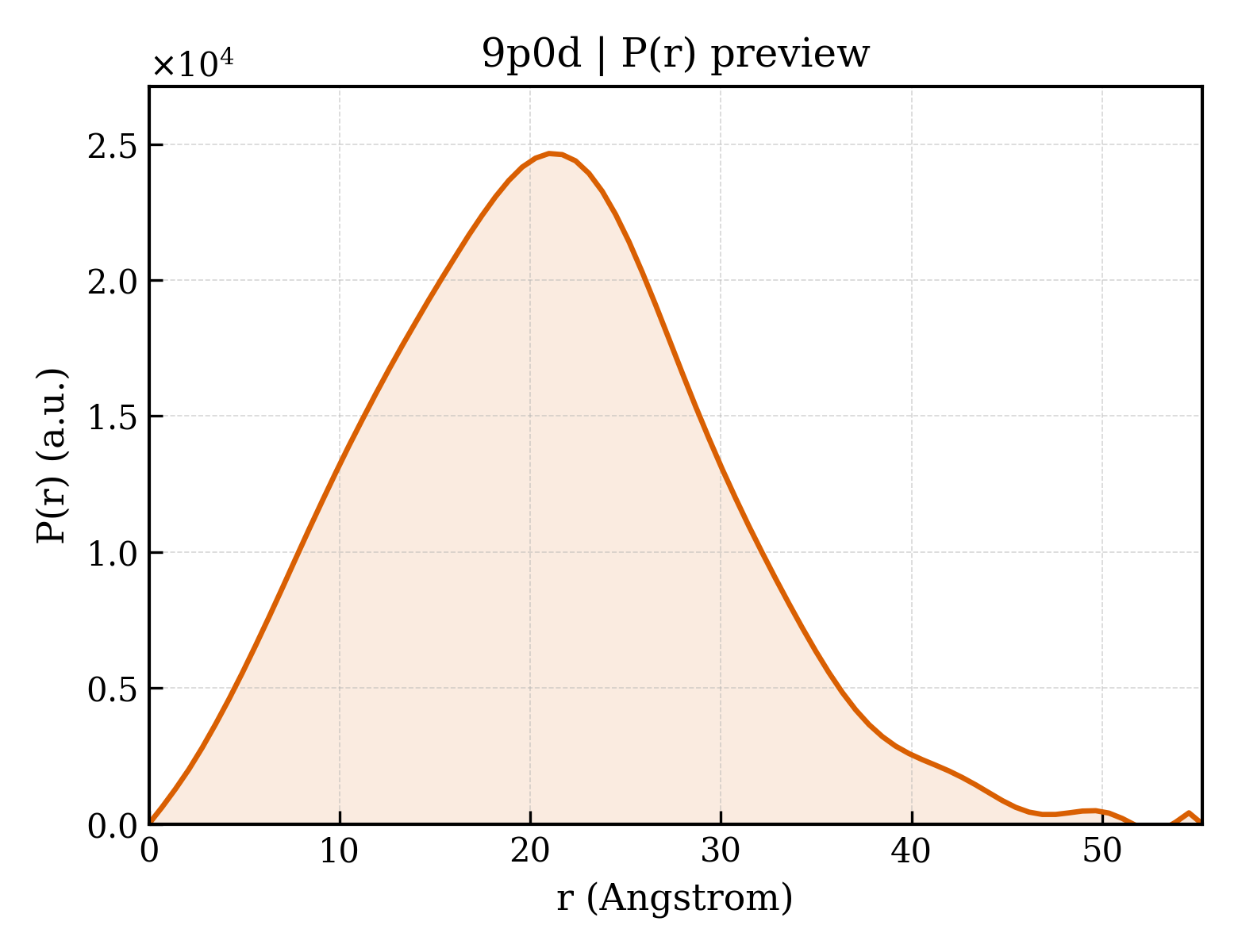

P(r) Distance Distribution P(r) Distribution
