SAXSdb — 9pd2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Paired immunoglobulin-like type 2 receptor alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 32–150	Not recorded	Anti-PILRA Fab Heavy Chain × 1 Anti-PILRA Fab Light Chain × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.1 M CAPS pH 10.5, 20% PEG 8000, 0.2 M NaCl	Resolution 2.58 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9PD2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4NFB Structure of paired immunoglobulin-like type 2 receptor (PILR ) Deposited 2013-10-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.1M sodium citrate tribasic dehydrate pH 5.6, 20%(v/v) 2-propanol, 20%(w/v) polyethylene glycol 4,000, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.60 Å R-free 0.225
5XO2 Crystal structure of human paired immunoglobulin-like type 2 receptor alpha with synthesized glycopeptide II Deposited 2017-05-25	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MES monohydrate pH 6.5, 1.6M Magnesium sulfate heptahydrate	Resolution 2.20 Å R-free 0.262
5XO2 Crystal structure of human paired immunoglobulin-like type 2 receptor alpha with synthesized glycopeptide II Deposited 2017-05-25	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MES monohydrate pH 6.5, 1.6M Magnesium sulfate heptahydrate	Resolution 2.20 Å R-free 0.262
5XOF Crystal structure of human paired immunoglobulin-like type 2 receptor alpha with synthesized glycopeptide I Deposited 2017-05-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Tris-HCl pH8.5, 25% (w/v) PEG 6000	Resolution 1.96 Å R-free 0.269
5XOF Crystal structure of human paired immunoglobulin-like type 2 receptor alpha with synthesized glycopeptide I Deposited 2017-05-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Tris-HCl pH8.5, 25% (w/v) PEG 6000	Resolution 1.96 Å R-free 0.269
5XOF Crystal structure of human paired immunoglobulin-like type 2 receptor alpha with synthesized glycopeptide I Deposited 2017-05-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Tris-HCl pH8.5, 25% (w/v) PEG 6000	Resolution 1.96 Å R-free 0.269
5XOF Crystal structure of human paired immunoglobulin-like type 2 receptor alpha with synthesized glycopeptide I Deposited 2017-05-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 32–150（119 aa） Fragment：UNP residues 32-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Tris-HCl pH8.5, 25% (w/v) PEG 6000	Resolution 1.96 Å R-free 0.269

3 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PILRA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 33–151； UniProt 32–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pd2
Deposition date deposition_date	2025-06-30
最后修订 last_revision	2025-12-17
Structure title title	Crystal structure of PILRA in complex with Fab portion of antagonist antibody
Keywords keywords	receptor, complex, fab, antibody, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.75 Å
Radius of gyration Rg (electron density) rg_electron	29.31 Å
Forward intensity I(0) i0	60485200.00
Molecular weight molecular_weight	61092.0 kDa
Excluded volume excluded_volume	76396 Å³
Envelope volume envelope_volume	97617 Å³
Hydration-shell volume shell_volume	29639 Å³
Envelope diameter envelope_diameter	104.6 Å
Shell Rg shell_rg	34.51 Å
Envelope Rg envelope_rg	29.10 Å
Shape Rg shape_rg	29.28 Å
Total Rg total_rg	29.90 Å
Total atoms total_atoms	4313
Residues n_residues	549
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

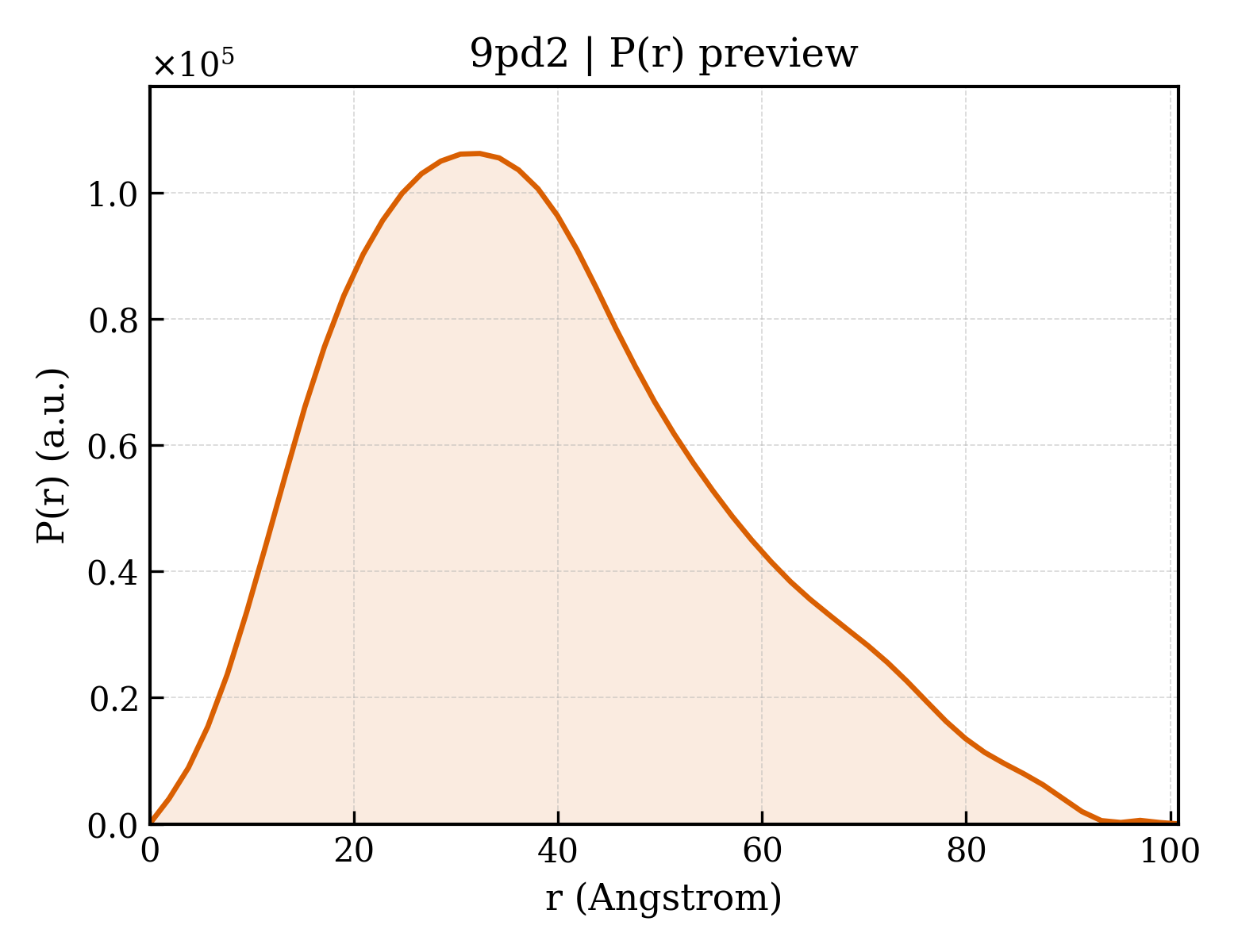

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.8 Å
Rg (real space) rg_real	29.93 Å
Rg uncertainty (real space) rg_real_error	1.17 Å
I(0) (real space) i0_real	6.0490e+07
I(0) uncertainty (real space) i0_real_error	1.0270e+06
Rg (reciprocal space) rg_reciprocal	29.86 Å
I(0) (reciprocal space) i0_reciprocal	60480000.0000
Solution quality estimate total_estimate	0.8633
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.4 Å
Skewness Skewness skewness	0.506
Kurtosis Kurtosis kurtosis	-0.288
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9084000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.808; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.881; Smooth: 0.921

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Paired immunoglobulin-like type 2 receptor alpha
Molecular weight formula_weight	17769.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4370

MHHHHHHHHGLNDIFEAQKIEWHELEVLFQGPLYGVTQPKHLSASMGGSVEIPFSFYYPWELATAPDVRISWRRGHFHGQSFYSTRPPSIHKDYVNRLFLNWTEGQKSGFLRISNLQKQDQSVYFCRVELDTRSSGRQQWQSIEGTKLSIT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Anti-PILRA Fab Heavy Chain
Molecular weight formula_weight	23977.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVQSGAEVKKPGASVKVSCKASGYTFTEYYMYWVRQAPGQGLELIGRIDPEDGGTDYIEKFKNRVTLTADTSTSTAYLELSSLRSEDTAVYYCATTIRGTVFAFWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Anti-PILRA Fab Light Chain
Molecular weight formula_weight	23558.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASVGDRVTITCRASEDIFNGLAWYQQKPGKSPKLLIYNAKTLHTGVPSRFSGSGSGSDYTLTISSLQPEDFATYFCQQYYDYPLTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	27

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.854 Å
Unit-cell length b length_b	46.753 Å
Unit-cell length c length_c	335.052 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.579 Å
Low-resolution limit resolution_low	46.347 Å
R factor r_factor	—
R_work r_work	0.2261
R_free r_free	0.2774

fit	/app/data/saxs_computation/pd/9pd2/9pd2.fit
pddf	/app/data/pr_computation/pd/9pd2/9pd2.pr.out
profile	/app/data/saxs_computation/pd/9pd2/9pd2.dat
