9pg6

Crystal structure of Glyceraldehyde-3-phosphate dehydrogenase from Bordetella pertussis (NAD bound)

Method: X-RAY DIFFRACTION D_max: 151.9 Å Quality: GOOD

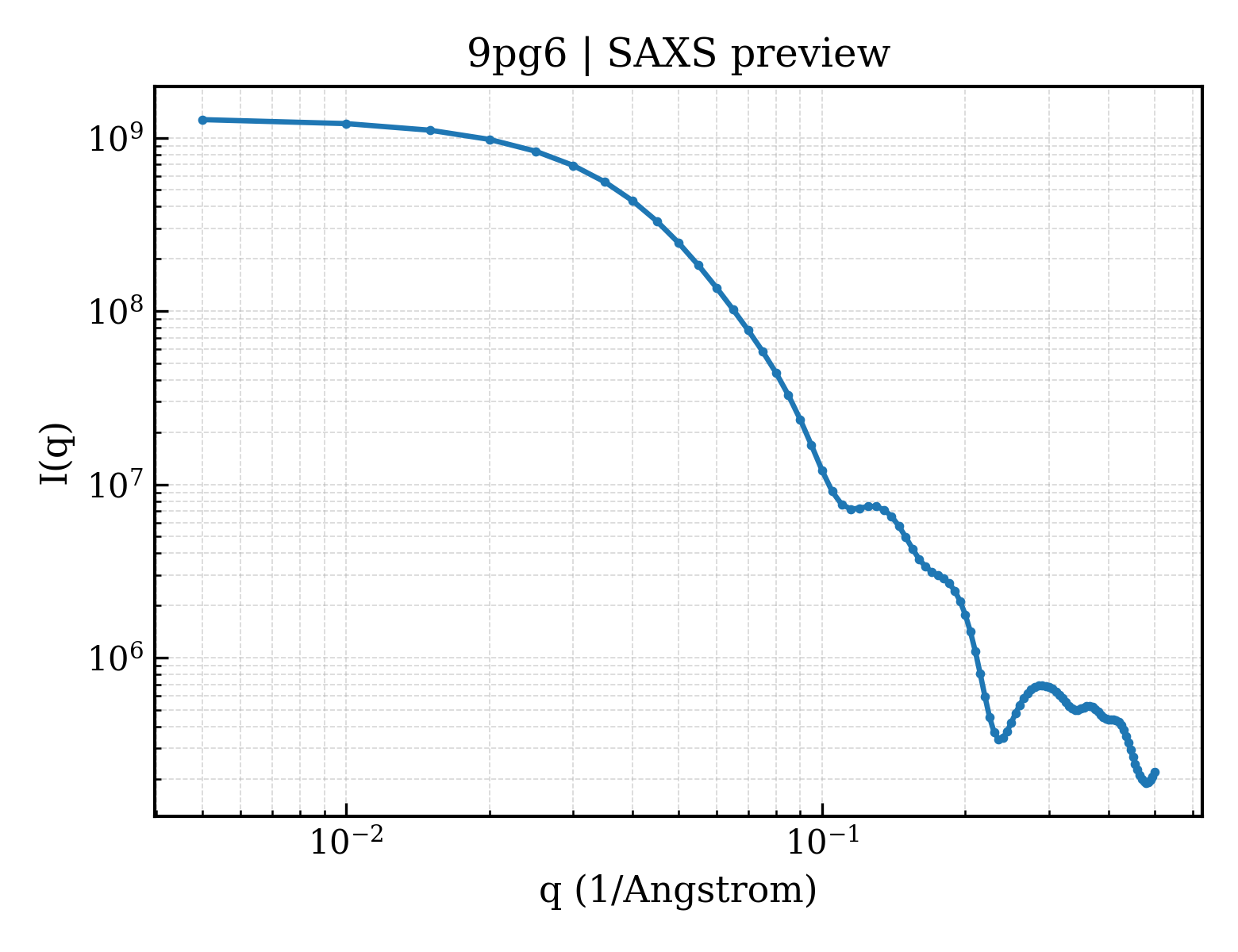

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9pg6
沉积日期 deposition_date	2025-07-07
最后修订 last_revision	2025-07-16
结构标题 title	Crystal structure of Glyceraldehyde-3-phosphate dehydrogenase from Bordetella pertussis (NAD bound)
关键词 keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, Glyceraldehyde-3-phosphate dehydrogenase, OXIDOREDUCTASE ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.81 Å
回转半径 Rg (电子) rg_electron	45.85 Å
零角强度 I(0) i0	1292770000.00
分子量 molecular_weight	294740.0 kDa
排除体积 excluded_volume	367590 Å³
包络体积 envelope_volume	463370 Å³
水化壳体积 shell_volume	82858 Å³
包络直径 envelope_diameter	155.6 Å
壳层 Rg shell_rg	51.20 Å
包络 Rg envelope_rg	45.37 Å
形状 Rg shape_rg	45.84 Å
总 Rg total_rg	46.07 Å
总原子数 total_atoms	20708
残基数 n_residues	2689
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.9 Å
Rg (实空间) rg_real	45.86 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	1.2930e+09
I(0) 误差 (实空间) i0_real_error	2.1800e+07
Rg (倒空间) rg_reciprocal	45.81 Å
I(0) (倒空间) i0_reciprocal	1293000000.0000
解质量估计 total_estimate	0.8758
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.1 Å
偏度 Skewness skewness	0.374
峰度 Kurtosis kurtosis	-0.456
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	146400000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.822

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Glyceraldehyde-3-phosphate dehydrogenase
分子量 formula_weight	37360.5 kDa
EC 编号 ec_number	1.2.1.-
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	21477

MAHHHHHHMTIRVVINGYGRIGRNILRAHYENGKKHDIEIVAINDLGDPKTNAHLTRFDTAHGKFPGTVTVDGDYMVVNGDKIRVLANRNPAELPWGELGVDVVLECTGFFTSKEKAGAHLKGGAKKVIISAPGGKDVDATIVFGVNQNVLKAEHTVISNASCTTNCLAPLVKPLHDKLGVETGLMTTVHAYTNDQVLTDVYHEDLRRARSATMSMIPTKTGAAAAVGLVLPELNGKLDGFAIRVPTINVSLVDLSFVAKRDTTVEEVNSILQAAAEGELKDILTYNTEPLVSIDFNHNPASSNFDATLTKVSGKLVKVSSWYDNEWGFSNRMLDTTVALMSAK

来源 Source

来源生物 organism	Bordetella pertussis Tohama I
NCBI 分类编号 ncbi_taxonomy_id	257313
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	584

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	78.826 Å
晶胞边长 b length_b	130.061 Å
晶胞边长 c length_c	140.967 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.86 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.150 Å
最低分辨率 resolution_low	49.030 Å
R 因子 r_factor	0.1947
R_work r_work	0.1928
R_free r_free	0.2297
