9pkw

Alpha1/Beta Heteromeric Glycine receptor in the presence of 0.200 mM strychnine and 200 nM ivermectin

Method: ELECTRON MICROSCOPY D_max: 129.8 Å Quality: GOOD

SAXS Profile

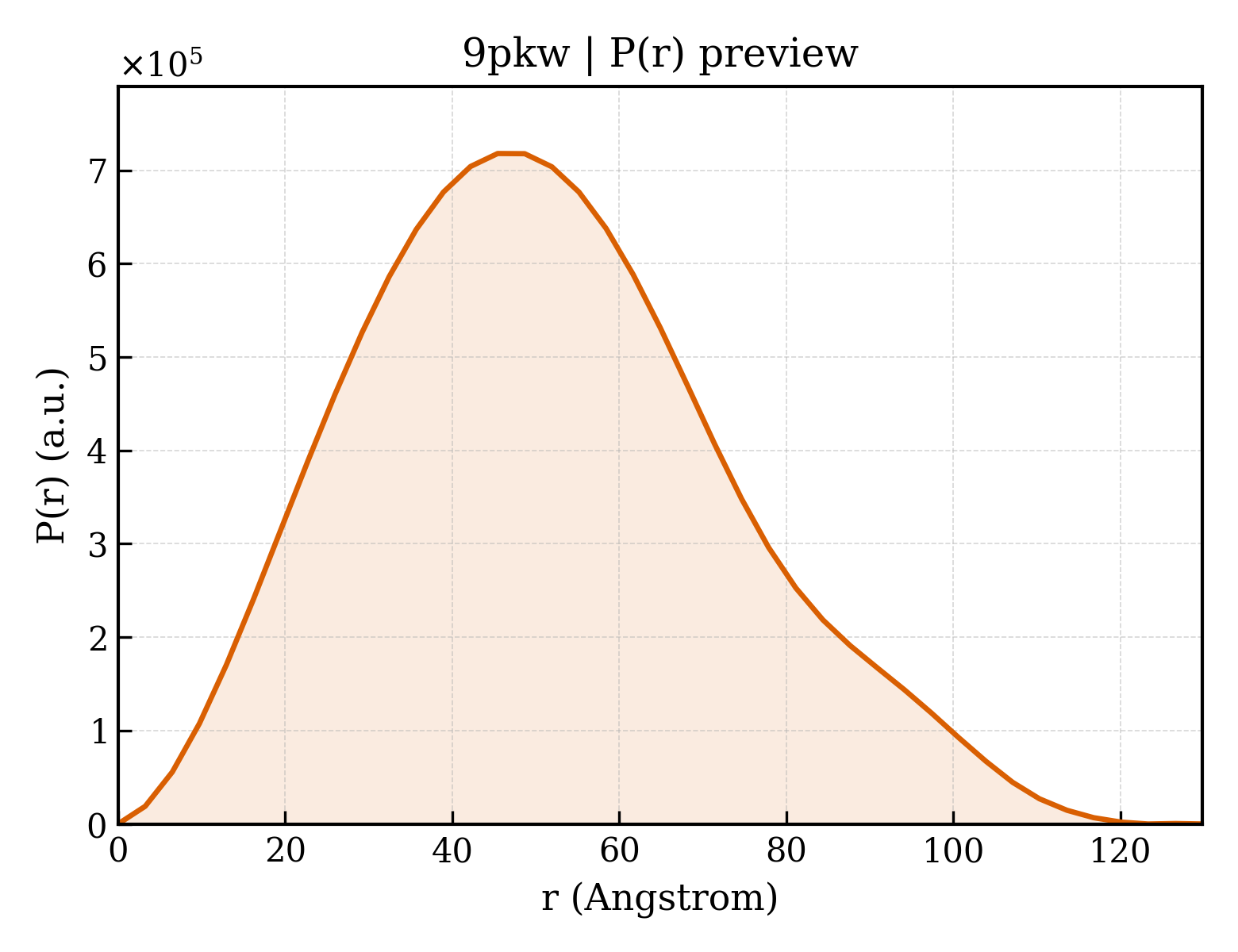

P(r) Distribution

▼

1. Structure Basics

entry_id	9pkw
deposition_date	2025-07-14
title	Alpha1/Beta Heteromeric Glycine receptor in the presence of 0.200 mM strychnine and 200 nM ivermectin
keywords	Ion Channel, Pentameric, Glycine, Receptor, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.30 Å
rg_electron	38.91 Å
i0	502795000.00
molecular_weight	195610.0 kDa
excluded_volume	249590 Å³
envelope_volume	324570 Å³
shell_volume	68120 Å³
envelope_diameter	135.4 Å
shell_rg	46.00 Å
envelope_rg	38.70 Å
shape_rg	38.94 Å
total_rg	39.23 Å
total_atoms	13791
n_residues	1677
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	129.8 Å
rg_real	39.24 Å
rg_real_error	1.11 Å
i0_real	5.0280e+08
i0_real_error	9.5280e+06
rg_reciprocal	39.28 Å
i0_reciprocal	502800000.0000
total_estimate	0.8081
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	45.4 Å
skewness	0.346
kurtosis	-0.305
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	111100000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.834; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Glycine receptor, alpha 1
formula_weight	52537.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,D,C,B
atom_count	13791

MFALGIYLWETIVFFSLAASQQAAARKAASPMPPSEFLDKLMGKVSGYDARIRPNFKGPPVNVTCNIFINSFGSIAETTMDYRVNIFLRQQWNDPRLAYSEYPDDSLDLDPSMLDSIWKPDLFFANEKGANFHEVTTDNKLLRISKNGNVLYSIRITLVLACPMDLKNFPMDVQTCIMQLESFGYTMNDLIFEWDEKGAVQVADGLTLPQFILKEEKDLRYCTKHYNTGKFTCIEARFHLERQMGYYLIQMYIPSLLIVILSWVSFWINMDAAPARVGLGITTVLTMTTQSSGSRASLPKVSYVKAIDIWMAVCLLFVFSALLEYAAVNFIARQHKELLRFQRRRRHLKEDEAGDGRFSFAAYGMGPACLQAKDGMAIKGNNNNAPTSTNPPEKTVEEMRKLFISRAKRIDTVSRVAFPLVFLIFNIFYWITYKIIRSEDIHKQLVPRGSHHHHHHHH

Source

organism	Danio rerio
common_name	zebrafish
ncbi_taxonomy_id	7955
host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 2 polymer

description	Glycine receptor beta subunit 2
formula_weight	65820.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MKALKVIFMLLIICLWMEGGFTKEKSAKKWSHPQFEKGGGSGGGSGGGSWSHPQFEKGGGSGGGSGGGSWSHPQFEKGGGSGGGSGGGSWSHPQFEKENLYFQGEKSAKKGKKKGKQVYCPSQLSSEDLARVPANSTSNILNKLLITYDPRIRPNFKGIPVEDRVNIFINSFGSIQETTMDYRVNIFLRQRWNDPRLRLPQDFKSDSLTVDPKMFKCLWKPDLFFANEKSANFHDVTQENILLFIFRNGDVLISMRLSVTLSCPLDLTLFPMDTQRCKMQLESFGYTTDDLQFMWQSGDPVQMDEIALPQFDIKQEDIEYGNCTKYYAGTGYYTCVEVIFTLRRQVGFYMMGVYAPTLLIVVLSWLSFWINPDASAARVPLGILSVLSLSSECTSLASELPKVSYVKAIDIWLIACLLFGFASLVEYAVVQVMLNSPKLLEAERAKIATKEKAEGKTPAKNTINGMGSTPIHVSTLQVTETRCKKVCTSKSDLRTNDFSIVGSLPRDFELSNFDCYGKPIEVGSAFSKSQAKNNKKPPPPKPVIPSAAKRIDLYARALFPFSFLFFNVIYWSVYLENLYFQGTETSQVAPA

Source

organism	Danio rerio
common_name	zebrafish
ncbi_taxonomy_id	7955
host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 3 non-polymer

description	STRYCHNINE
formula_weight	334.4 kDa
src_method	syn
entity_count	5

Entity 4 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.860 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.86 Å
resolution_method	—
num_particles	73223

fit	/app/data/saxs_computation/pk/9pkw/9pkw.fit
pddf	/app/data/pr_computation/pk/9pkw/9pkw.pr.out
profile	/app/data/saxs_computation/pk/9pkw/9pkw.dat
