9pky

Alpha1/Beta Heteromeric Glycine receptor in the presence of 0.200 mM strychnine and 2000 nM ivermectin

Method: ELECTRON MICROSCOPY D_max: 128.4 Å Quality: GOOD

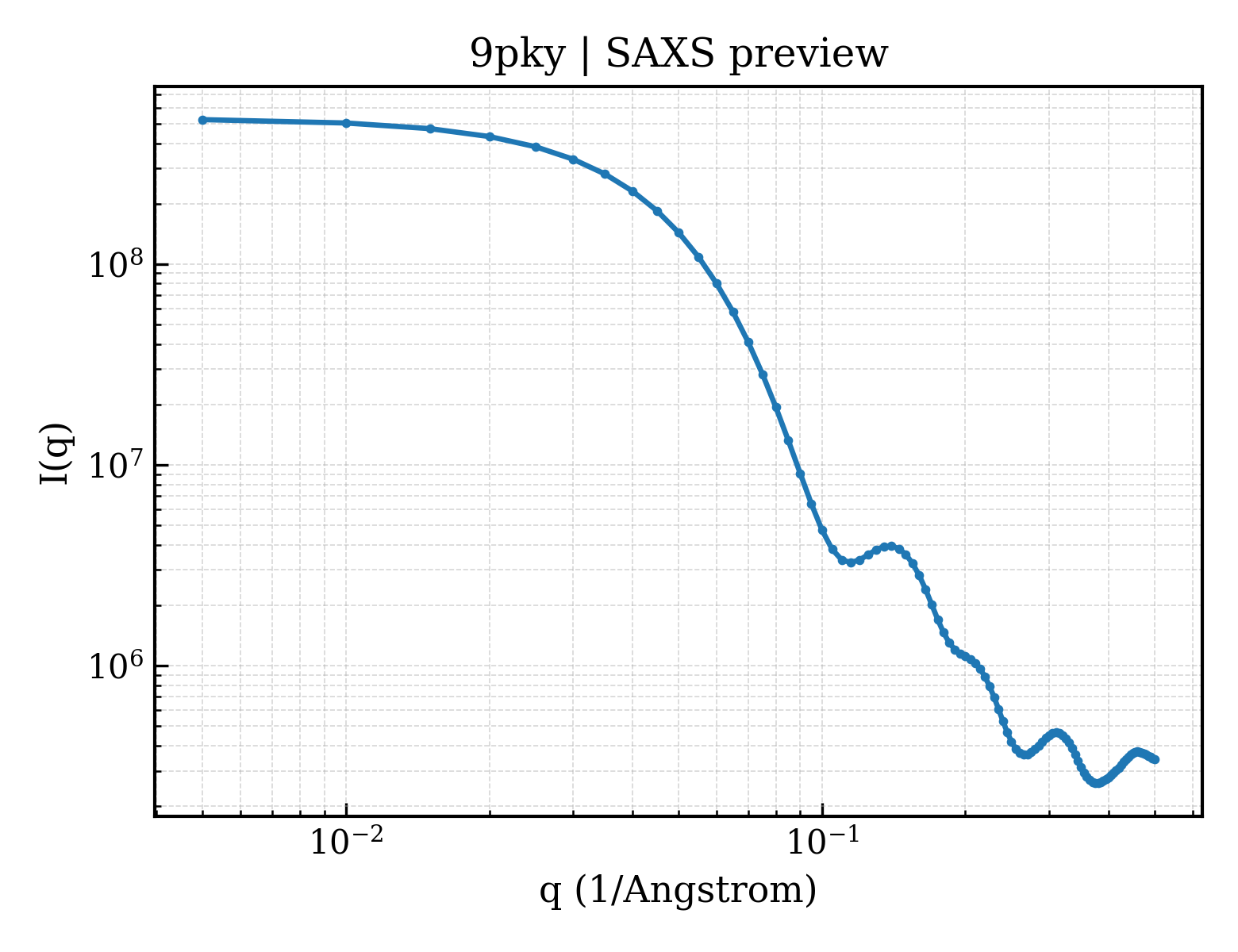

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9pky
deposition_date	2025-07-14
title	Alpha1/Beta Heteromeric Glycine receptor in the presence of 0.200 mM strychnine and 2000 nM ivermectin
keywords	Ion Channel, Pentameric, Glycine, Receptor, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.39 Å
rg_electron	38.97 Å
i0	530875000.00
molecular_weight	202820.0 kDa
excluded_volume	259640 Å³
envelope_volume	339710 Å³
shell_volume	70981 Å³
envelope_diameter	135.3 Å
shell_rg	46.10 Å
envelope_rg	38.49 Å
shape_rg	38.99 Å
total_rg	39.31 Å
total_atoms	14301
n_residues	1698
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	128.4 Å
rg_real	39.28 Å
rg_real_error	0.84 Å
i0_real	5.3090e+08
i0_real_error	7.9320e+06
rg_reciprocal	39.35 Å
i0_reciprocal	530900000.0000
total_estimate	0.8755
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	48.1 Å
skewness	0.322
kurtosis	-0.282
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	91660000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.839; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.865

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Glycine receptor, alpha 1
formula_weight	52537.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,D,C,B
atom_count	14301

MFALGIYLWETIVFFSLAASQQAAARKAASPMPPSEFLDKLMGKVSGYDARIRPNFKGPPVNVTCNIFINSFGSIAETTMDYRVNIFLRQQWNDPRLAYSEYPDDSLDLDPSMLDSIWKPDLFFANEKGANFHEVTTDNKLLRISKNGNVLYSIRITLVLACPMDLKNFPMDVQTCIMQLESFGYTMNDLIFEWDEKGAVQVADGLTLPQFILKEEKDLRYCTKHYNTGKFTCIEARFHLERQMGYYLIQMYIPSLLIVILSWVSFWINMDAAPARVGLGITTVLTMTTQSSGSRASLPKVSYVKAIDIWMAVCLLFVFSALLEYAAVNFIARQHKELLRFQRRRRHLKEDEAGDGRFSFAAYGMGPACLQAKDGMAIKGNNNNAPTSTNPPEKTVEEMRKLFISRAKRIDTVSRVAFPLVFLIFNIFYWITYKIIRSEDIHKQLVPRGSHHHHHHHH

Source

organism	Danio rerio
common_name	zebrafish
ncbi_taxonomy_id	7955
host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 2 polymer

description	Glycine receptor beta subunit 2
formula_weight	65820.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MKALKVIFMLLIICLWMEGGFTKEKSAKKWSHPQFEKGGGSGGGSGGGSWSHPQFEKGGGSGGGSGGGSWSHPQFEKGGGSGGGSGGGSWSHPQFEKENLYFQGEKSAKKGKKKGKQVYCPSQLSSEDLARVPANSTSNILNKLLITYDPRIRPNFKGIPVEDRVNIFINSFGSIQETTMDYRVNIFLRQRWNDPRLRLPQDFKSDSLTVDPKMFKCLWKPDLFFANEKSANFHDVTQENILLFIFRNGDVLISMRLSVTLSCPLDLTLFPMDTQRCKMQLESFGYTTDDLQFMWQSGDPVQMDEIALPQFDIKQEDIEYGNCTKYYAGTGYYTCVEVIFTLRRQVGFYMMGVYAPTLLIVVLSWLSFWINPDASAARVPLGILSVLSLSSECTSLASELPKVSYVKAIDIWLIACLLFGFASLVEYAVVQVMLNSPKLLEAERAKIATKEKAEGKTPAKNTINGMGSTPIHVSTLQVTETRCKKVCTSKSDLRTNDFSIVGSLPRDFELSNFDCYGKPIEVGSAFSKSQAKNNKKPPPPKPVIPSAAKRIDLYARALFPFSFLFFNVIYWSVYLENLYFQGTETSQVAPA

Source

organism	Danio rerio
common_name	zebrafish
ncbi_taxonomy_id	7955
host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 3 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	6

Entity 4 non-polymer

description	STRYCHNINE
formula_weight	334.4 kDa
src_method	syn
entity_count	5

Entity 5 non-polymer

description	;(2aE,4E,5'S,6S,6'R,7S,8E,11R,13R,15S,17aR,20R,20aR,20bS)-6'-[(2S)-butan-2-yl]-20,20b-dihydroxy-5',6,8,19-tetramethyl-17 -oxo-3',4',5',6,6',10,11,14,15,17,17a,20,20a,20b-tetradecahydro-2H,7H-spiro[11,15-methanofuro[4,3,2-pq][2,6]benzodioxacy clooctadecine-13,2'-pyran]-7-yl 2,6-dideoxy-4-O-(2,6-dideoxy-3-O-methyl-alpha-L-arabino-hexopyranosyl)-3-O-methyl-alpha-L-arabino-hexopyranoside ;
formula_weight	875.1 kDa
src_method	syn
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.890 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.89 Å
resolution_method	—
num_particles	93904

fit	/app/data/saxs_computation/pk/9pky/9pky.fit
pddf	/app/data/pr_computation/pk/9pky/9pky.pr.out
profile	/app/data/saxs_computation/pk/9pky/9pky.dat
