9psb

Crystal structure of C. elegans PUF-3 in complex with pos-1 RNA

Method: X-RAY DIFFRACTION D_max: 108.8 Å Quality: GOOD

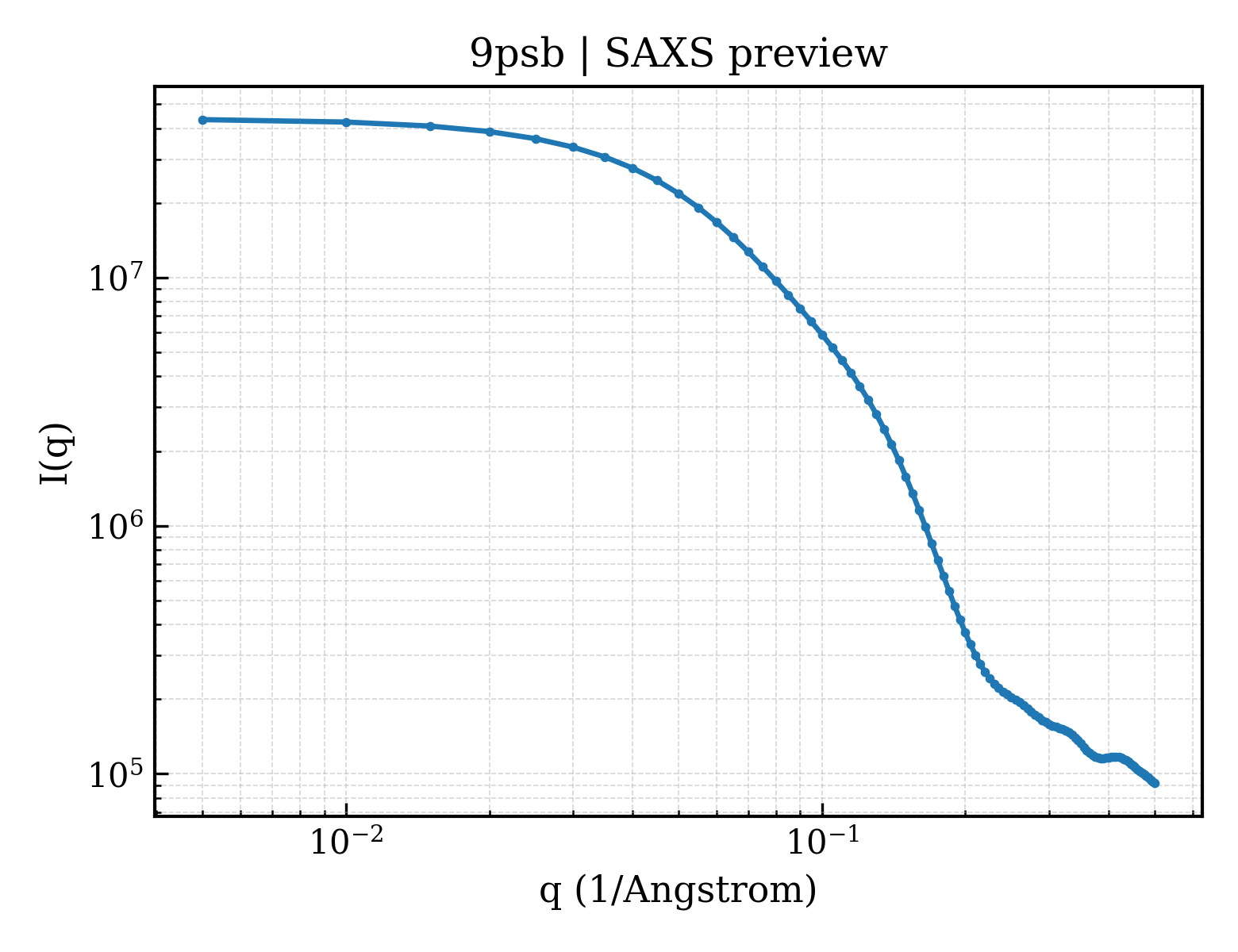

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9psb
deposition_date	2025-07-25
title	Crystal structure of C. elegans PUF-3 in complex with pos-1 RNA
keywords	RNA binding, Caenorhabditis elegans, PUF protein, RNA BINDING PROTEIN; RNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.58 Å
rg_electron	29.61 Å
i0	43605700.00
molecular_weight	48223.0 kDa
excluded_volume	58734 Å³
envelope_volume	79568 Å³
shell_volume	23729 Å³
envelope_diameter	114.1 Å
shell_rg	34.45 Å
envelope_rg	30.85 Å
shape_rg	29.65 Å
total_rg	29.93 Å
total_atoms	3370
n_residues	420
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	108.8 Å
rg_real	29.92 Å
rg_real_error	1.14 Å
i0_real	4.3610e+07
i0_real_error	7.4330e+05
rg_reciprocal	29.77 Å
i0_reciprocal	43600000.0000
total_estimate	0.7706
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.2 Å
skewness	0.570
kurtosis	-0.292
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	7320000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.539; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.477; Smooth: 0.918

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	PUM-HD domain-containing protein
formula_weight	47039.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3402

SAVRLIDLENNASFSKSLNSTTRSHKCTLPIWAGDGEGNVSDSVTLQDVLANDALVEFATDKNGCRFLQEHYPTENDNDVHQKLFRKLVEDRAIFLSLCSNMFGNFFVQRVLECSNTEEQEILTEHLATDLYNLCLDKSACRVIQLAIQKLDVHLATRLSLELRDTHLVRLSIDQNGNHVIQKIVKTLPVSSWTFLVDFFADDDNLIHVCQDKYGCRVIQSTVETLSTDQYAQCYQHRVILLRSLMAGVTRNCTQLASNEFANYVVQHVIKCGDALAVYRDIIIEQCLLQNLLSMSQEKYASHVVEVAFECAPYRLVAEMMNEIFEGYIPHPDTNRDALDILLFHQYGNYVVQQMIQTCVLGQNARDQKQSEMYGMWLEKIHGRVMRNAHRLERFSSGKKIIEALQSMSLY

Source

organism	Caenorhabditis elegans
ncbi_taxonomy_id	6239
host_organism	Escherichia coli

Entity 2 polymer

description	pos-1 RNA
formula_weight	3430.0 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	B

CUGUAUAUUAU

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	nat
entity_count	3

Entity 4 non-polymer

description	FORMIC ACID
formula_weight	46.0 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	32

▶

6. Citations (1)

▶

length_a	160.298 Å
length_b	160.298 Å
length_c	99.531 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 32 2 1
int_tables_number	154
crystal_system	—

resolution	3.250 Å
resolution_low	42.280 Å
r_factor	0.2476
r_work	0.2458
r_free	0.2801

fit	/app/data/saxs_computation/ps/9psb/9psb.fit
pddf	/app/data/pr_computation/ps/9psb/9psb.pr.out
profile	/app/data/saxs_computation/ps/9psb/9psb.dat
