9psc

Crystal structure of C. elegans PUF-3 in complex with pos-1 RNA mut1

Method: X-RAY DIFFRACTION D_max: 110.8 Å Quality: GOOD

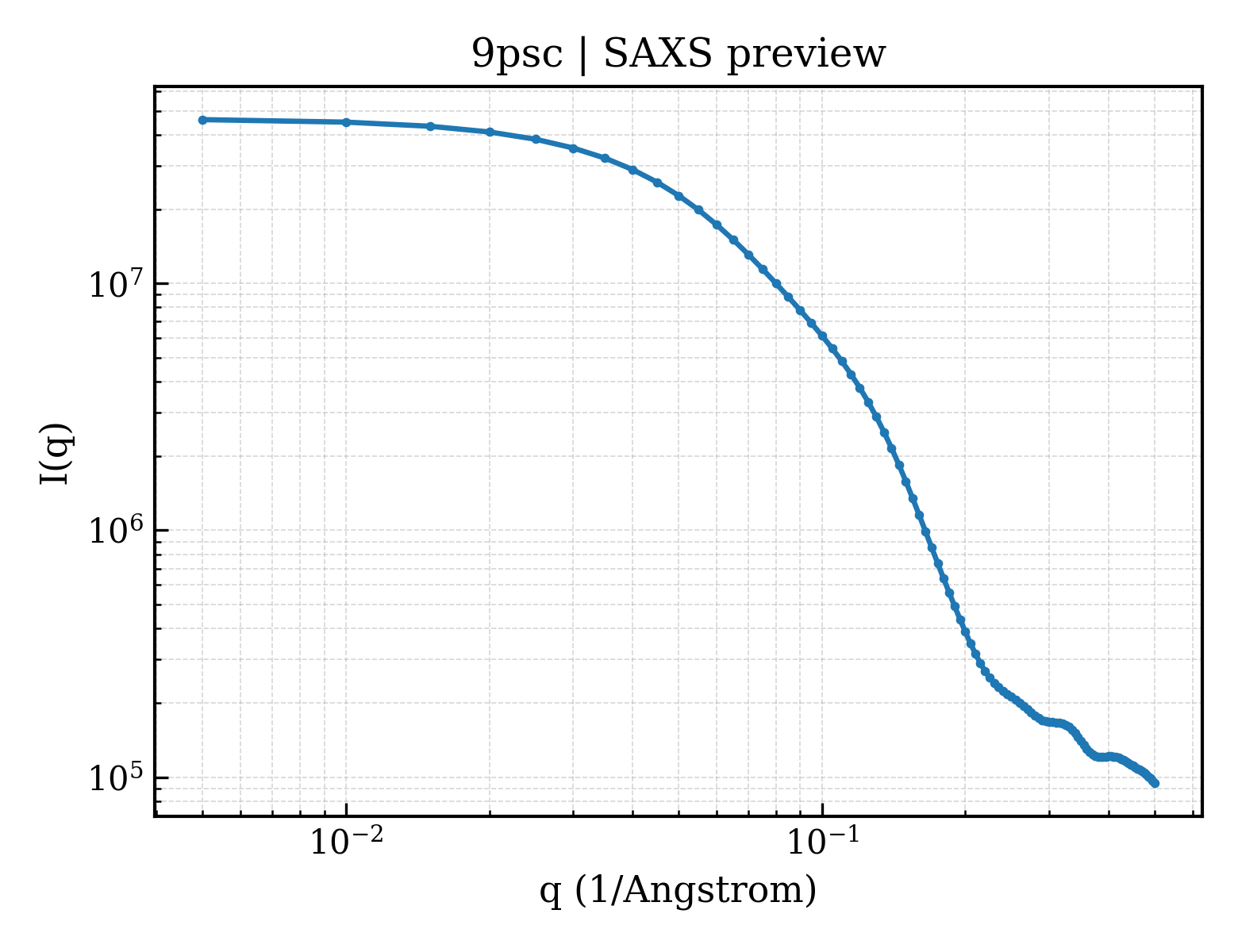

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9psc
deposition_date	2025-07-25
title	Crystal structure of C. elegans PUF-3 in complex with pos-1 RNA mut1
keywords	RNA binding, Caenorhabditis elegans, PUF protein, RNA BINDING PROTEIN; RNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.11 Å
rg_electron	30.22 Å
i0	46418600.00
molecular_weight	50233.0 kDa
excluded_volume	61439 Å³
envelope_volume	83169 Å³
shell_volume	24308 Å³
envelope_diameter	117.1 Å
shell_rg	34.97 Å
envelope_rg	31.61 Å
shape_rg	30.26 Å
total_rg	30.55 Å
total_atoms	3507
n_residues	419
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.8 Å
rg_real	30.47 Å
rg_real_error	1.38 Å
i0_real	4.6420e+07
i0_real_error	8.1460e+05
rg_reciprocal	30.32 Å
i0_reciprocal	46410000.0000
total_estimate	0.7665
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.1 Å
skewness	0.563
kurtosis	-0.334
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	7690000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.527; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.402; Smooth: 0.977

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	PUM-HD domain-containing protein
formula_weight	47039.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3601

SAVRLIDLENNASFSKSLNSTTRSHKCTLPIWAGDGEGNVSDSVTLQDVLANDALVEFATDKNGCRFLQEHYPTENDNDVHQKLFRKLVEDRAIFLSLCSNMFGNFFVQRVLECSNTEEQEILTEHLATDLYNLCLDKSACRVIQLAIQKLDVHLATRLSLELRDTHLVRLSIDQNGNHVIQKIVKTLPVSSWTFLVDFFADDDNLIHVCQDKYGCRVIQSTVETLSTDQYAQCYQHRVILLRSLMAGVTRNCTQLASNEFANYVVQHVIKCGDALAVYRDIIIEQCLLQNLLSMSQEKYASHVVEVAFECAPYRLVAEMMNEIFEGYIPHPDTNRDALDILLFHQYGNYVVQQMIQTCVLGQNARDQKQSEMYGMWLEKIHGRVMRNAHRLERFSSGKKIIEALQSMSLY

Source

organism	Caenorhabditis elegans
ncbi_taxonomy_id	6239
host_organism	Escherichia coli

Entity 2 polymer

description	pos-1 RNA mut1
formula_weight	3430.0 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	B

CUGUAUUAUAU

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	FORMIC ACID
formula_weight	46.0 kDa
src_method	syn
entity_count	3

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	83

▶

6. Citations (1)

▶

length_a	161.152 Å
length_b	161.152 Å
length_c	100.013 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 32 2 1
int_tables_number	154
crystal_system	trigonal

resolution	2.400 Å
resolution_low	42.180 Å
r_factor	0.2214
r_work	0.2202
r_free	0.2445

fit	/app/data/saxs_computation/ps/9psc/9psc.fit
pddf	/app/data/pr_computation/ps/9psc/9psc.pr.out
profile	/app/data/saxs_computation/ps/9psc/9psc.dat
