9q1b
MS2 bacteriophage coat protein after reassembly as a nanocrate (MS2nc) with no cargo and with waters modeled
SAXS Profile

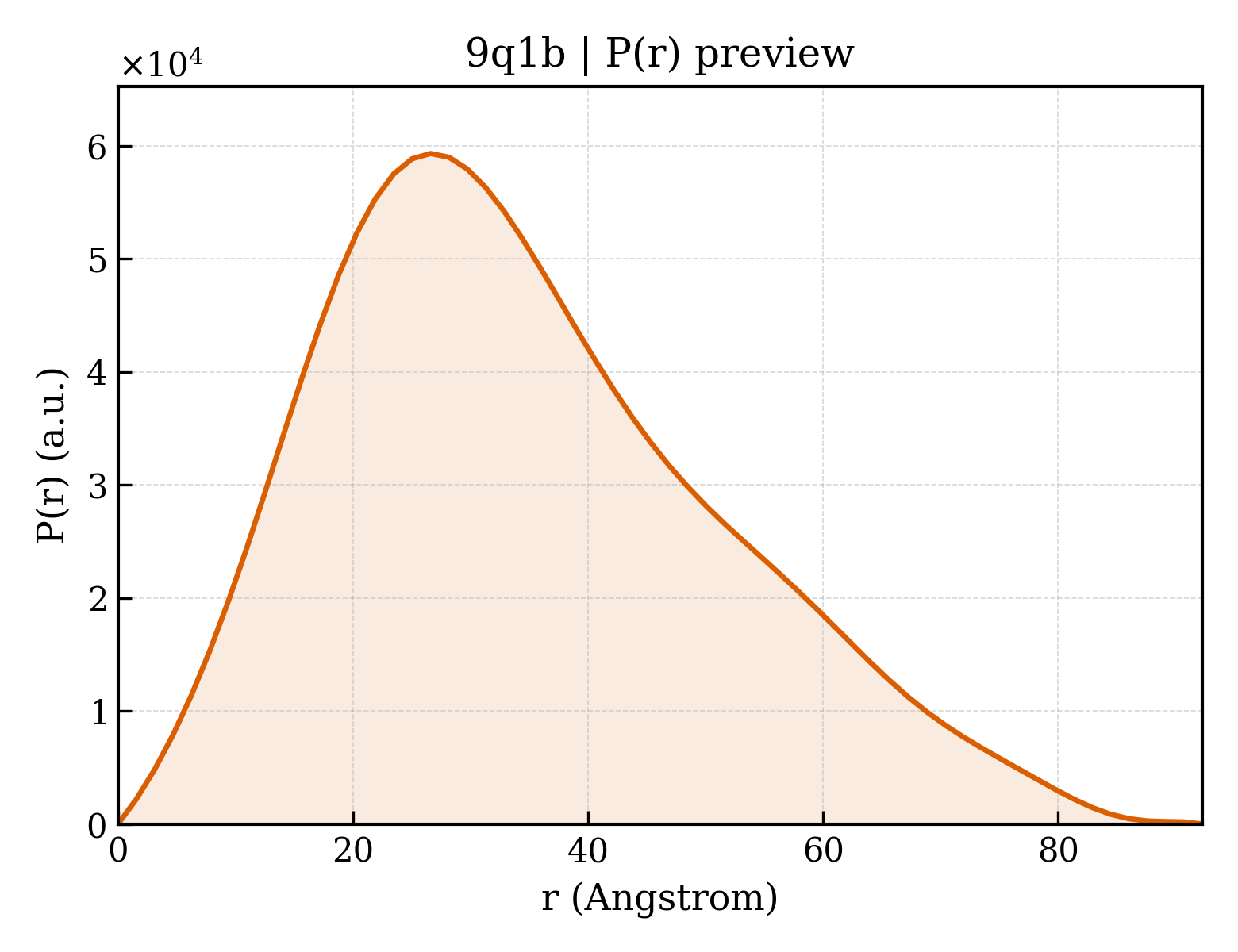

P(r) Distribution
1. Structure Basics
| entry_id | 9q1b |
| deposition_date | 2025-08-13 |
| title | MS2 bacteriophage coat protein after reassembly as a nanocrate (MS2nc) with no cargo and with waters modeled |
| keywords | Bacteriophage, VLP, MS2, nanocrate, VIRUS; VIRUS |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.91 Å |
| rg_electron | 26.46 Å |
| i0 | 29212000.00 |
| molecular_weight | 41189.0 kDa |
| excluded_volume | 51506 ų |
| envelope_volume | 68673 ų |
| shell_volume | 23146 ų |
| envelope_diameter | 93.5 Å |
| shell_rg | 31.62 Å |
| envelope_rg | 27.07 Å |
| shape_rg | 26.48 Å |
| total_rg | 27.00 Å |
| total_atoms | 2895 |
| n_residues | 387 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.3 Å |
| rg_real | 27.13 Å |
| rg_real_error | 0.50 Å |
| i0_real | 2.9210e+07 |
| i0_real_error | 3.8550e+05 |
| rg_reciprocal | 27.06 Å |
| i0_reciprocal | 29210000.0000 |
| total_estimate | 0.6601 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 26.6 Å |
| skewness | 0.534 |
| kurtosis | -0.246 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0003 |
| highest_alpha | 3712000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.754; Stabil: 1.000; Sysdev: 0.199; Positv: 1.000; Valcen: 0.790; Smooth: 0.930 |
