9q1d
MS2 bacteriophage coat protein with waters modeled
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9q1d |
| deposition_date | 2025-08-13 |
| title | MS2 bacteriophage coat protein with waters modeled |
| keywords | Bacteriophage, VLP, MS2, VIRUS; VIRUS |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.90 Å |
| rg_electron | 26.43 Å |
| i0 | 29336100.00 |
| molecular_weight | 41189.0 kDa |
| excluded_volume | 51506 ų |
| envelope_volume | 68850 ų |
| shell_volume | 23192 ų |
| envelope_diameter | 93.5 Å |
| shell_rg | 31.57 Å |
| envelope_rg | 27.08 Å |
| shape_rg | 26.46 Å |
| total_rg | 26.99 Å |
| total_atoms | 2895 |
| n_residues | 387 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

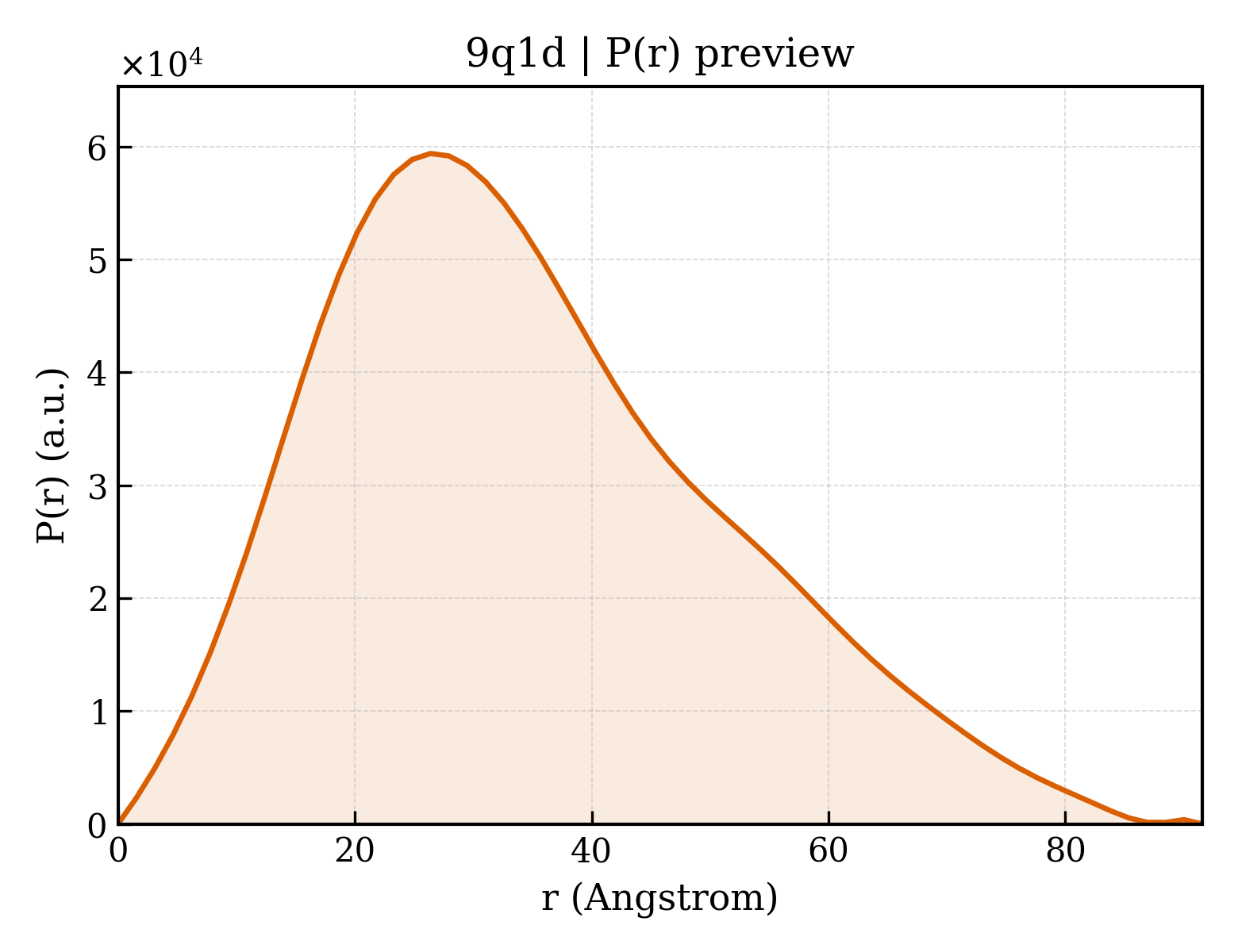

3. P(r) Analysis (GNOM)
| dmax | 91.6 Å |
| rg_real | 27.11 Å |
| rg_real_error | 0.78 Å |
| i0_real | 2.9340e+07 |
| i0_real_error | 4.5490e+05 |
| rg_reciprocal | 27.04 Å |
| i0_reciprocal | 29330000.0000 |
| total_estimate | 0.8424 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.4 Å |
| skewness | 0.533 |
| kurtosis | -0.244 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3726000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.765; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.805; Smooth: 0.848 |
