9q25

DX2-CX3-RAD51 in the closed state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA repair protein RAD51 homolog 3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 1	DNA repair protein RAD51 homolog 4 × 1 （O75771） DNA repair protein RAD51 homolog 1 × 1 （Q06609） ssDNA (5-mer) × 1 DNA repair protein XRCC3 × 1 （O43542） DNA repair protein XRCC2 × 1 （O43543） ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RA51C_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–376； UniProt 1–376

DNA repair protein RAD51 homolog 4

Homo sapiens

UniProt O75771

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 1	DNA repair protein RAD51 homolog 3 × 1 （O43502） DNA repair protein RAD51 homolog 1 × 1 （Q06609） ssDNA (5-mer) × 1 DNA repair protein XRCC3 × 1 （O43542） DNA repair protein XRCC2 × 1 （O43543） ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RA51D_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–328； UniProt 1–328

DNA repair protein RAD51 homolog 1

Homo sapiens

UniProt Q06609

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 1	DNA repair protein RAD51 homolog 3 × 1 （O43502） DNA repair protein RAD51 homolog 4 × 1 （O75771） ssDNA (5-mer) × 1 DNA repair protein XRCC3 × 1 （O43542） DNA repair protein XRCC2 × 1 （O43543） ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD51_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–339； UniProt 1–339

DNA repair protein XRCC3

Homo sapiens

UniProt O43542

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 1	DNA repair protein RAD51 homolog 3 × 1 （O43502） DNA repair protein RAD51 homolog 4 × 1 （O75771） DNA repair protein RAD51 homolog 1 × 1 （Q06609） ssDNA (5-mer) × 1 DNA repair protein XRCC2 × 1 （O43543） ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XRCC3_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 1–346； UniProt 1–346

DNA repair protein XRCC2

Homo sapiens

UniProt O43543

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 1	DNA repair protein RAD51 homolog 3 × 1 （O43502） DNA repair protein RAD51 homolog 4 × 1 （O75771） DNA repair protein RAD51 homolog 1 × 1 （Q06609） ssDNA (5-mer) × 1 DNA repair protein XRCC3 × 1 （O43542） ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XRCC2_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain X； PDBConstruct 1–280； UniProt 1–280

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9q25
Deposition date deposition_date	2025-08-14
Structure title title	DX2-CX3-RAD51 in the closed state
Keywords keywords	RAD51 paralog, DX2-CX3 complex, DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9q25__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9q25__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

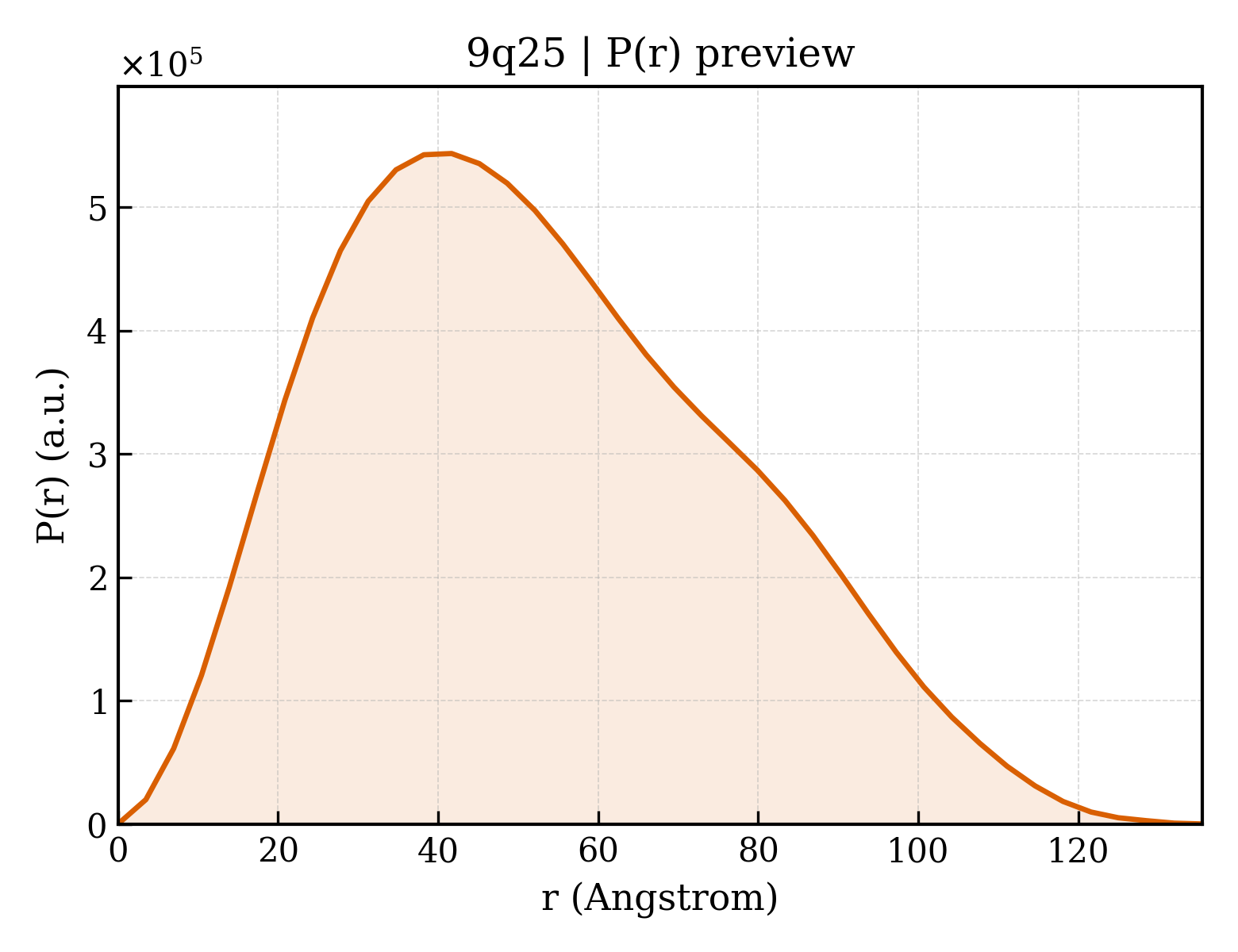

9q25__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.78 Å
Rg (electron density)	40.65 Å
Total Rg	40.88 Å
Atom count	21348
Residues	1499
Excluded volume	210910 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9q25__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	DNA repair protein RAD51 homolog 3
Molecular weight formula_weight	42244.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	21348

MRGKTFRFEMQRDLVSFPLSPAVRVKLVSAGFQTAEELLEVKPSELSKEVGISKAEALETLQIIRRECLTNKPRYAGTSESHKKCTALELLEQEHTQGFIITFCSALDDILGGGVPLMKTTEICGAPGVGKTQLCMQLAVDVQIPECFGGVAGEAVFIDTEGSFMVDRVVDLATACIQHLQLIAEKHKGEEHRKALEDFTLDNILSHIYYFRCRDYTELLAQVYLLPDFLSEHSKVRLVIVDGIAFPFRHDLDDLSLRTRLLNGLAQQMISLANNHRLAVILTNQMTTKIDRNQALLVPALGESWGHAATIRLIFHWDRKQRLATLYKSPSQKECTVLFQIKPQGFRDTVVTSACSLQTEGSLSTRKRSRDPEEEL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	DNA repair protein RAD51 homolog 4
Molecular weight formula_weight	36167.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MGVLRVGLCPGLTEEMIQLLRSHRIKTVVDLVSADLEEVAQKCGLSYKALVALRRVLLAQFSAFPVNGADLYEELKTSTAILSTGIGSLDKLLDAGLYTGEVTEIVGGPGSGKTQVCLCMAANVAHGLQQNVLYVDSNGGLTASRLLQLLQAKTQDEEEQAEALRRIQVVHAFDIFQMLDVLQELRGTVAQQVTGSSGTVKVVVVDSVTAVVSPLLGGQQREGLALMMQLARELKTLARDLGMAVVVTNHITRDRDSGRLKPALGRSWSFVPSTRILLDTIEGAGASGGRRMACLAKSSRQPTGFQEMVDIGTWGTSEQSATLQGDQTGSGSENLYFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	DNA repair protein RAD51 homolog 1
Molecular weight formula_weight	37009.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MAMQMQLEANADTSVEEESFGPQPISRLEQCGINANDVKKLEEAGFHTVEAVAYAPKKELINIKGISEAKADKILAEAAKLVPMGFTTATEFHQRRSEIIQITTGSKELDKLLQGGIETGSITEMFGEFRTGKTQICHTLAVTCQLPIDRGGGEGKAMYIDTEGTFRPERLLAVAERYGLSGSDVLDNVAYARAFNTDHQTQLLYQASAMMVESRYALLIVDSATALYRTDYSGRGELSARQMHLARFLRMLLRLADEFGVAVVITNQVVAQVDGAAMFAADPKKPIGGNIIAHASTTRLYLRKGRGETRICKIYDSPCLPEAEAMFAINADGVGDAKD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	ssDNA (5-mer)
Molecular weight formula_weight	1476.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	H

TTTTT

Entity 5 Entity 5 polymer

Description description	DNA repair protein XRCC3
Molecular weight formula_weight	37899.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MDLDLLDLNPRIIAAIKKAKLKSVKEVLHFSGPDLKRLTNLSSPEVWHLLRTASLHLRGSSILTALQLHQQKERFPTQHQRLSLGCPVLDALLRGGLPLDGITELAGRSSAGKTQLALQLCLAVQFPRQHGGLEAGAVYICTEDAFPHKRLQQLMAQQPRLRTDVPGELLQKLRFGSQIFIEHVADVDTLLECVNKKVPVLLSRGMARLVVIDSVAAPFRCEFDSQASAPRARHLQSLGATLRELSSAFQSPVLCINQVTEAMEEQGAAHGPLGFWDERVSPALGITWANQLLVRLLADRLREEEAALGCPARTLRVLSAPHLPPSSCSYTISAEGVRGTPGTQSH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	DNA repair protein XRCC2
Molecular weight formula_weight	31995.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

MCSAFHRAESGTELLARLEGRSSLKEIEPNLFADEDSPVHGDILEFHGPEGTGKTEMLYHLTARCILPKSEGGLEVEVLFIDTDYHFDMLRLVTILEHRLSQSSEEIIKYCLGRFFLVYCSSSTHLLLTLYSLESMFCSHPSLCLLILDSLSAFYWIDRVNGGESVNLQESTLRKCSQCLEKLVNDYRLVLFATTQTIMQKASSSSEEPSHASRRLCDVDIDYRPYLCKAWQQLVKHRMFFSKQDDSQSSNQFSLVSRCLKSNSLKKHFFIIGESGVEFC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.24 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	86917
