9q3f

Structure of neurodevelopmental mutant AGO1 F180del in complex with guide RNA

Method: ELECTRON MICROSCOPY D_max: 101.4 Å Quality: EXCELLENT

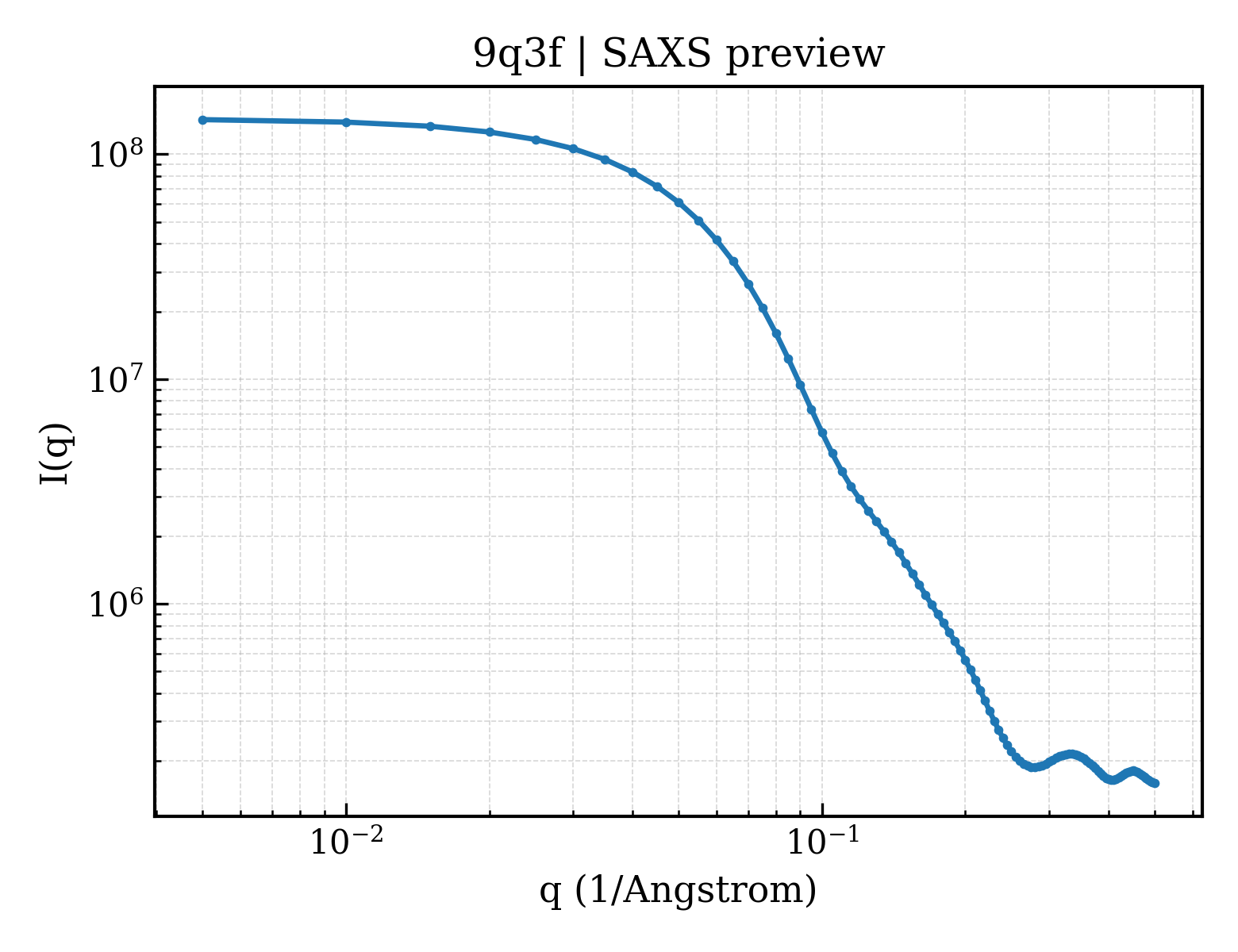

SAXS Profile

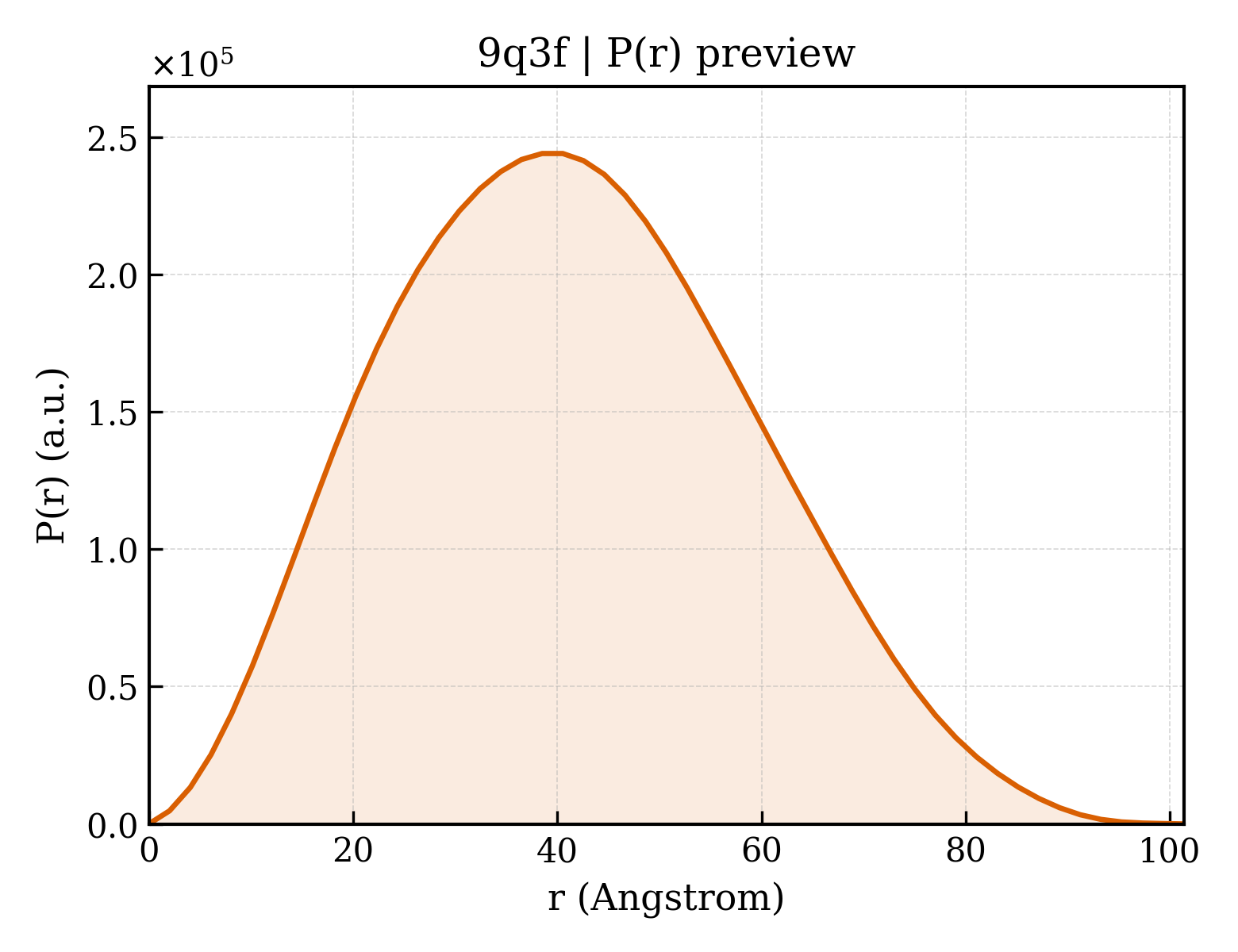

P(r) Distribution

▼

1. Structure Basics

entry_id	9q3f
deposition_date	2025-08-18
title	Structure of neurodevelopmental mutant AGO1 F180del in complex with guide RNA
keywords	Complex, mutant, GENE REGULATION; GENE REGULATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.89 Å
rg_electron	31.39 Å
i0	143753000.00
molecular_weight	94160.0 kDa
excluded_volume	117740 Å³
envelope_volume	165940 Å³
shell_volume	43949 Å³
envelope_diameter	100.4 Å
shell_rg	38.62 Å
envelope_rg	30.88 Å
shape_rg	31.40 Å
total_rg	32.05 Å
total_atoms	6615
n_residues	809
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.4 Å
rg_real	31.77 Å
rg_real_error	0.62 Å
i0_real	1.4380e+08
i0_real_error	2.1070e+06
rg_reciprocal	31.82 Å
i0_reciprocal	143800000.0000
total_estimate	0.9010
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	0
r_peak_primary	— Å
skewness	0.221
kurtosis	-0.481
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	41680000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.933

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Protein argonaute-1
formula_weight	98733.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6615

GAMGSMDYKDDDDKMEAGPSGAAAGAYLPPLQQVFQAPRRPGIGTVGKPIKLLANYFEVDIPKIDVYHYEVDIKPDKCPRRVNREVVEYMVQHFKPQIFGDRKPVYDGKKNIYTVTALPIGNERVDFEVTIPGEGKDRIFKVSIKWLAIVSWRMLHEALVSGQIPVPLESVQALDVAMRHLASMRYTPVGRSFSPPEGYYHPLGGGREVWFGFHQSVRPAMWKMMLNIDVSATAFYKAQPVIEFMCEVLDIRNIDEQPKPLTDSQRVRFTKEIKGLKVEVTHCGQMKRKYRVCNVTRRPASHQTFPLQLESGQTVECTVAQYFKQKYNLQLKYPHLPCLQVGQEQKHTYLPLEVCNIVAGQRCIKKLTDNQTSTMIKATARSAPDRQEEISRLMKNASYNLDPYIQEFGIKVKDDMTEVTGRVLPAPILQYGGRNRAIATPNQGVWDMRGKQFYNGIEIKVWAIACFAPQKQCREEVLKNFTDQLRKISKDAGMPIQGQPCFCKYAQGADSVEPMFRHLKNTYSGLQLIIVILPGKTPVYAEVKRVGDTLLGMATQCVQVKNVVKTSPQTLSNLCLKINVKLGGINNILVPHQRSAVFQQPVIFLGADVTHPPAGDGKKPSITAVVGSMDAHPSRYCATVRVQRPRQEIIEDLSYMVRELLIQFYKSTRFKPTRIIFYRDGVPEGQLPQILHYELLAIRDACIKLEKDYQPGITYIVVQKRHHTRLFCADKNERIGKSGNIPAGTTVDTNITHPFEFDFYLCSHAGIQGTSRPSHYYVLWDDNRFTADELQILTYQLCHTYVRCTRSVSIPAPAYYARLVAFRARYHLVDKEHDSGEGSHISGQSNGRDPQALAKAVQVHQDTLRTMYFA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Non-homogenous guide RNA
formula_weight	2588.7 kDa
src_method	man
entity_count	1

Polymer

type	polyribonucleotide
strand_id	B

AAAAAAAA

Source

organism	Trichoplusia ni
common_name	cabbage looper
ncbi_taxonomy_id	7111
host_organism	Trichoplusia ni

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.30 Å
resolution_method	—
num_particles	435426

fit	/app/data/saxs_computation/q3/9q3f/9q3f.fit
pddf	/app/data/pr_computation/q3/9q3f/9q3f.pr.out
profile	/app/data/saxs_computation/q3/9q3f/9q3f.dat
