9q4p

;Structure of rat neuronal nitric oxide synthase R349A mutant heme domain bound with 6-((5-(2-(dimethylamino)ethyl)-2,3-difluorophenoxy)methyl)-4-methylpyridin-2-amine ;

Method: X-RAY DIFFRACTION D_max: 82.8 Å Quality: GOOD

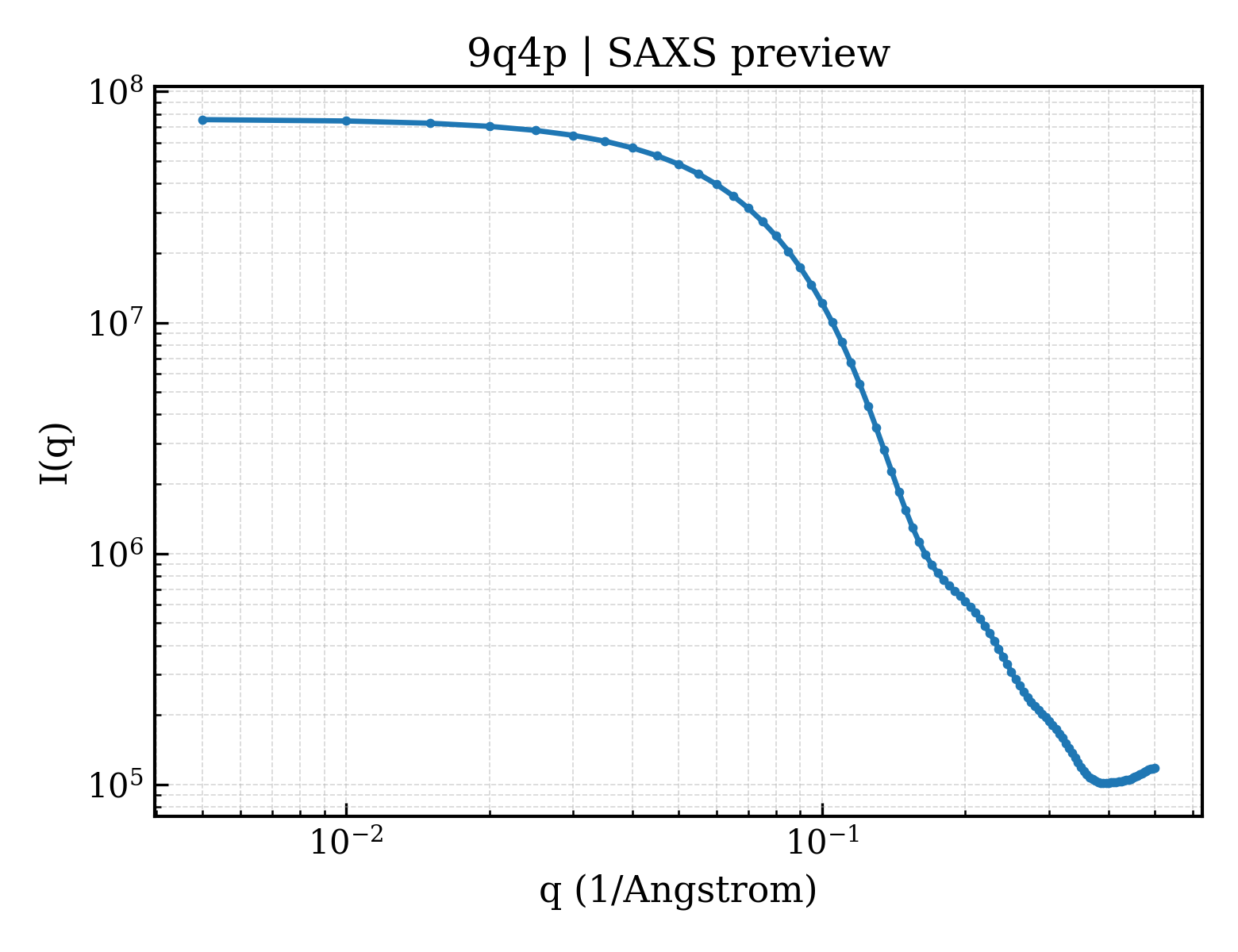

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9q4p
deposition_date	2025-08-20
title	;Structure of rat neuronal nitric oxide synthase R349A mutant heme domain bound with 6-((5-(2-(dimethylamino)ethyl)-2,3-difluorophenoxy)methyl)-4-methylpyridin-2-amine ;
keywords	nitric oxide synthase inhibitor binding, OXIDOREDUCTASE-INHIBITOR complex; OXIDOREDUCTASE/INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.18 Å
rg_electron	22.38 Å
i0	75910600.00
molecular_weight	45830.0 kDa
excluded_volume	44442 Å³
envelope_volume	71499 Å³
shell_volume	26346 Å³
envelope_diameter	83.8 Å
shell_rg	29.74 Å
envelope_rg	22.79 Å
shape_rg	22.38 Å
total_rg	23.04 Å
total_atoms	3465
n_residues	415
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	82.8 Å
rg_real	23.12 Å
rg_real_error	0.56 Å
i0_real	7.5910e+07
i0_real_error	1.0970e+06
rg_reciprocal	23.13 Å
i0_reciprocal	75910000.0000
total_estimate	0.8517
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	28.0 Å
skewness	0.320
kurtosis	-0.189
angular_range	— – 0.3450 Å⁻¹
current_alpha	0.0000
highest_alpha	14360000.0000
n_real_points	66
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.698; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.995

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Nitric oxide synthase, brain
formula_weight	48726.4 kDa
ec_number	1.14.13.39
mutation	R349A
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3497

CPRFLKVKNWETDVVLTDTLHLKSTLETGCTEHICMGSIMLPSQHTRKPEDVATKDQLFPLAKEFLDQYYSSIKRFGSKAHMDRLEEVNKEIESTSTYQLKDTELIYGAKHAWRNASRCVGRIQWSKLQVFDARDCTTAHGMFNYICNHVKYATNKGNLRSAITIFPQRTDGKHDFRVWNSQLIRYAGYKQPDGSTLGDPANVQFTEICIQQGWKAPRGRFDVLPLLLQANGNDPELFQIPPELVLEVPIRHPKFDWFKDLGLKWYGLPAVSNMLLEIGGLEFSACPFSGWYMGTEIGVRDYCDNSRYNILEEVAKKMDLDMRKTSSLWKDQALVEINIAVLYSFQSDKVTIVDHHSATESFIKHMENEYRCRGGCPADWVWIVPPMSGSITPVFHQEMLNYRLTPSFEYQPDPWNTHVWKG

Source

organism	Rattus norvegicus
common_name	Norway rat
ncbi_taxonomy_id	10116
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	5,6,7,8-TETRAHYDROBIOPTERIN
formula_weight	241.2 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	6-({5-[2-(dimethylamino)ethyl]-2,3-difluorophenoxy}methyl)-4-methylpyridin-2-amine
formula_weight	321.4 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	29

▶

6. Citations (1)

▶

length_a	48.708 Å
length_b	113.428 Å
length_c	163.004 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.250 Å
resolution_low	46.550 Å
r_factor	0.2123
r_work	0.2085
r_free	0.2804
