9q4t

;Structure of rat neuronal nitric oxide synthase R349A mutant heme domain bound with 6-((2,3-difluoro-5-(2-(piperidin-1-yl)ethyl)phenoxy)methyl)-4-methylpyridin-2-amine ;

Method: X-RAY DIFFRACTION Dmax: 79.6 Å Quality: GOOD

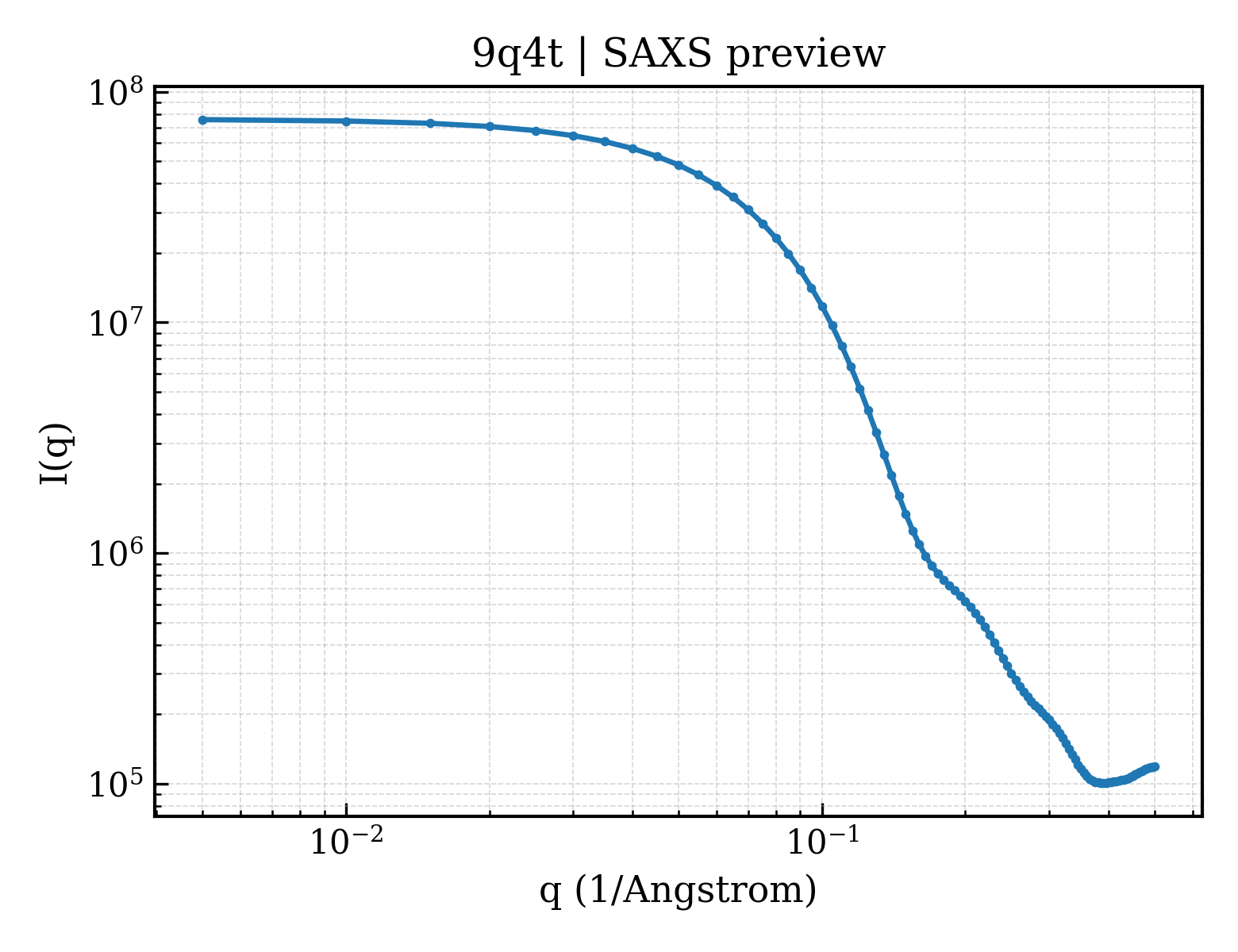

SAXS Profile

SAXS profile for 9q4t

P(r) Distribution

P(r) distribution for 9q4t
▼

1. Structure Basics

entry_id9q4t
deposition_date2025-08-20
title;Structure of rat neuronal nitric oxide synthase R349A mutant heme domain bound with 6-((2,3-difluoro-5-(2-(piperidin-1-yl)ethyl)phenoxy)methyl)-4-methylpyridin-2-amine ;
keywordsnitric oxide synthase inhibitor binding, OXIDOREDUCTASE-INHIBITOR complex, OXIDOREDUCTASE; OXIDOREDUCTASE/INHIBITOR
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier23.41 Å
rg_electron22.60 Å
i076095700.00
molecular_weight45866.0 kDa
excluded_volume44491 ų
envelope_volume72757 ų
shell_volume26621 ų
envelope_diameter84.5 Å
shell_rg29.92 Å
envelope_rg22.98 Å
shape_rg22.60 Å
total_rg23.27 Å
total_atoms3468
n_residues415
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax79.6 Å
rg_real23.34 Å
rg_real_error0.68 Å
i0_real7.6100e+07
i0_real_error1.1070e+06
rg_reciprocal23.36 Å
i0_reciprocal76100000.0000
total_estimate0.7967
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary69.8 Å
skewness0.319
kurtosis-0.191
angular_range— – 0.3400 Å−1
current_alpha0.0000
highest_alpha13040000.0000
n_real_points66
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.786; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

▶

6. Citations (1)

▶

7. Files & Curves (10)
