SAXSdb — 9q7y

▼

1. Structure Basics

entry_id	9q7y
deposition_date	2025-08-25
title	Zymogen ADAM17- iRhom1 Cytoplasmic Deletion (365) Complex Bound by the MEDI3622 Fab
keywords	Complex, Membrane Protein, Enzyme, ADAM, Rhomboid; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.21 Å
rg_electron	46.22 Å
i0	341917000.00
molecular_weight	150040.0 kDa
excluded_volume	186820 Å³
envelope_volume	266880 Å³
shell_volume	50906 Å³
envelope_diameter	159.8 Å
shell_rg	46.95 Å
envelope_rg	45.85 Å
shape_rg	46.23 Å
total_rg	46.21 Å
total_atoms	10530
n_residues	1315
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	152.1 Å
rg_real	45.54 Å
rg_real_error	1.43 Å
i0_real	3.4190e+08
i0_real_error	6.3940e+06
rg_reciprocal	45.21 Å
i0_reciprocal	341800000.0000
total_estimate	0.8310
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	39.1 Å
skewness	0.434
kurtosis	-0.407
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	28460000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.782; Smooth: 0.424

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Inactive rhomboid protein 1
formula_weight	52991.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	10530

REKRPYGLGMVGRLTNRTYRKRIDSFVKRQIEDMDDHRPFFTYWLTFVHSLVTILAVCIYGIAPVGFSQHETVDSVLRNRGVYENVKYVQQENFWIGPSSEALIHLGAKFSPCMRQDPQVHSFIRSAREREKHSACCVRNDRSGCVQTSEEECSSTLAVWVKWPIHPSAPELAGHKRQFGSVCHQDPRVCDEPSSEDPHEWPEDITKWPICTKNSAGNHTNHPHMDCVITGRPCCIGTKGRCEITSREYCDFMRGYFHEEATLCSQVHCMDDVCGLLPFLNPEVPDQFYRLWLSLFLHAGILHCLVSICFQMTVLRDLEKLAGWHRIAIIYLLSGVTGNLASAIFLPYRAEVGPAGSQFGILACLFVELFQSWQILARPWRAFFKLLAVVLFLFTFGLLPWIDNFAHISGFISGLFLSFAFLPYISFGKFDLYRKRCQIIIFQVVFLGLLAGLVVLFYVYPV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	MEDI3622 Fab Light Chain
formula_weight	11435.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

DIQMTQSPSSLSASVGDRVTITCRSSQSIPSYLNWYQQKPGKAPKLLIYAASRLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQSYSTPLTFGGGTKVEI

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	MEDI3622 Fab Heavy Chain
formula_weight	12862.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

EVQLLESGGGLVQPGGSLRLSCAASGFTFSSYPMNWVRQAPGKGLEWVSYISPFGGMTDYATSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCARDAMRGAEVDYWGQGTLVTVS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 polymer

description	Disintegrin and metalloproteinase domain-containing protein 17
formula_weight	76130.9 kDa
ec_number	3.4.24.86
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

PHQRLEKLDSLLSDYDILSLSNIQQHSVRKRDLQTSTHVETLLTFSALKRHFKLYLTSSTERFSQNFKVVVVDGKNESEYTVKWQDFFTGHVVGEPDSRVLAHIRDDDVIIRINTDGAEYNIEPLWRFVNDTKDKRMLVYKSEDIKNVSRLQSPKVCGYLKVDNEELLPKGLVDREPPEELVHRVKRRADPDPMKNTCKLLVVADHRFYRYMGRGEESTTTNYLIELIDRVDDIYRNTSWDNAGFKGYGIQIEQIRILKSPQEVKPGEKHYNMAKSYPNEEKDAWDVKMLLEQFSFDIAEEASKVCLAHLFTYQDFDMGTLGLAYVGSPRANSHGGVCPKAYYSPVGKKNIYLNSGLTSTKNYGKTILTKEADLVTTHALGHNFGAEHDPDGLAECAPNEDQGGKYVMYPIAVSGDHENNKMFSNCSKQSIYKTIESKAQECFQERSNKVCGNSRVDEGEECDPGIMYLNNDTCCNSDCTLKEGVQCSDRNSPCCKNCQFETAQKKCQEAINATCKGVSYCTGNSSECPPPGNAEDDTVCLDLGKCKDGKCIPFCEREQQLESCACNETDNSCKVCCRDLSGRCVPYVDAEQKNLFLRKGKPCTVGFCDMNGKCEKRVQDVIERFWDFIDQLSINTFGKFLADNIVGSVLVFSLIFWIPFSILVHCVDKKL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	1

Entity 6 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 8 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	6

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.35 Å
resolution_method	—
num_particles	55059

fit	/app/data/saxs_computation/q7/9q7y/9q7y.fit
pddf	/app/data/pr_computation/q7/9q7y/9q7y.pr.out
profile	/app/data/saxs_computation/q7/9q7y/9q7y.dat

Zymogen ADAM17- iRhom1 Cytoplasmic Deletion (365) Complex Bound by the MEDI3622 Fab

SAXS Profile

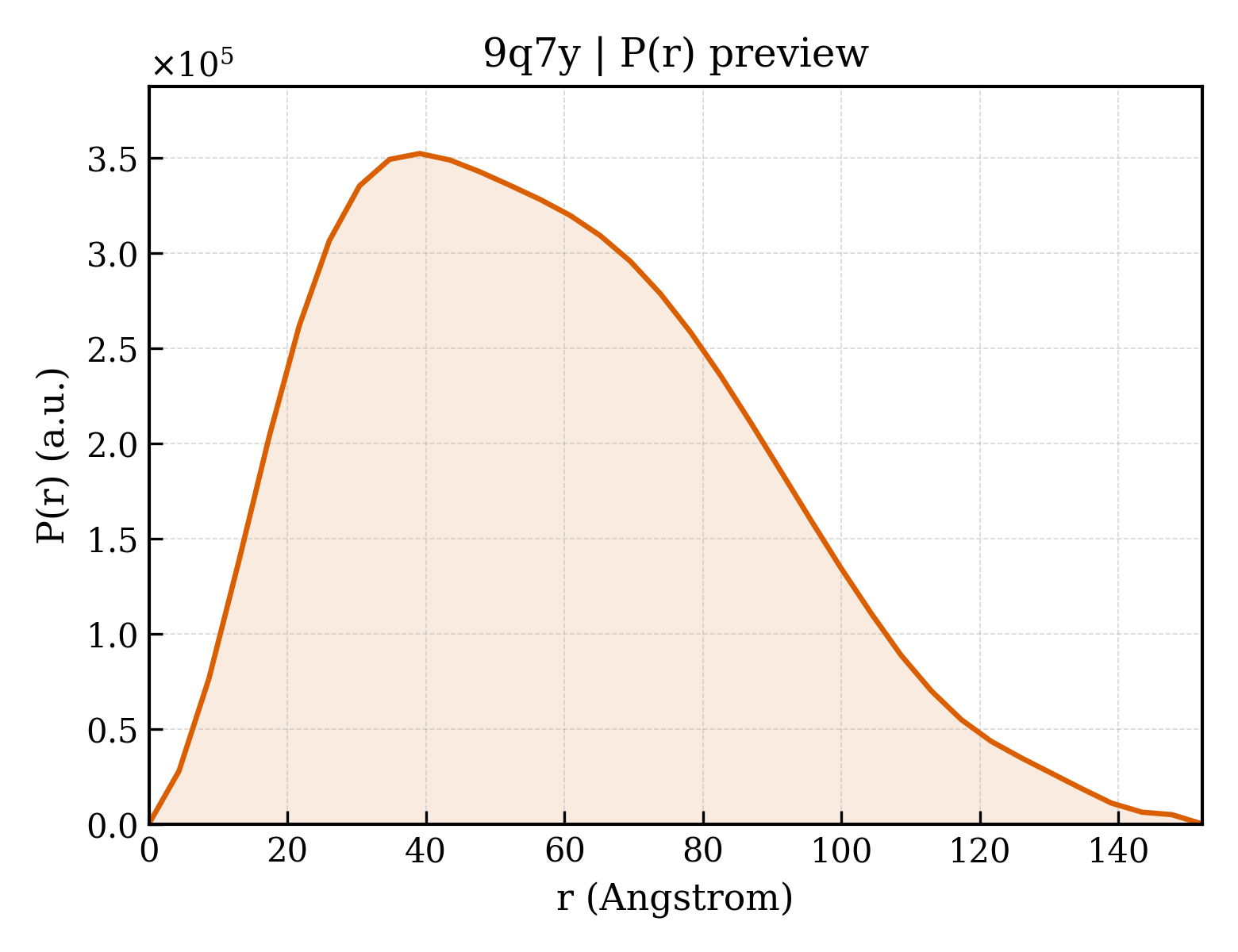

P(r) Distribution
