9qa1

Drosophila melanogaster angiotensin converting enzyme homologue, AnCE in complex with VW dipeptide

Method: X-RAY DIFFRACTION D_max: 82.7 Å Quality: REASONABLE

SAXS Profile

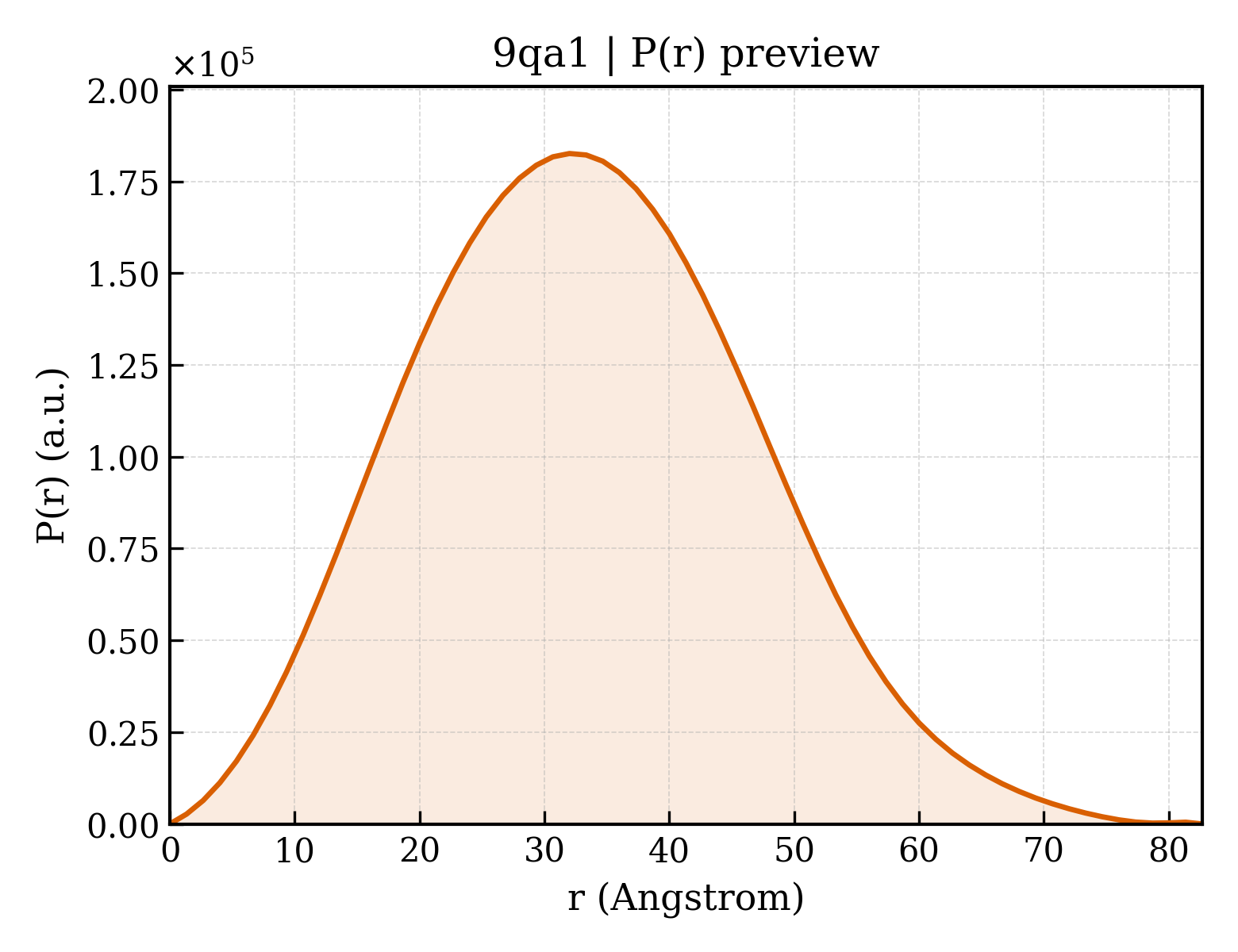

P(r) Distribution

▼

1. Structure Basics

entry_id	9qa1
deposition_date	2025-02-27
last_revision	2025-05-14
title	Drosophila melanogaster angiotensin converting enzyme homologue, AnCE in complex with VW dipeptide
keywords	metalloprotease, dipeptides, hypertension, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.51 Å
rg_electron	24.34 Å
i0	80569200.00
molecular_weight	70994.0 kDa
excluded_volume	88877 Å³
envelope_volume	104070 Å³
shell_volume	34339 Å³
envelope_diameter	84.9 Å
shell_rg	32.84 Å
envelope_rg	24.65 Å
shape_rg	24.29 Å
total_rg	25.37 Å
total_atoms	5010
n_residues	600
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	82.7 Å
rg_real	25.38 Å
rg_real_error	0.47 Å
i0_real	8.0570e+07
i0_real_error	1.1110e+06
rg_reciprocal	25.42 Å
i0_reciprocal	80570000.0000
total_estimate	0.7241
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	32.0 Å
skewness	0.224
kurtosis	-0.286
angular_range	— – 0.3100 Å⁻¹
current_alpha	0.0000
highest_alpha	19400000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 0.315; Positv: 1.000; Valcen: 0.988; Smooth: 0.990

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Angiotensin-converting enzyme
formula_weight	68980.4 kDa
ec_number	3.4.15.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5253

VKEEIQAKEYLENLNKELAKRTNVETEAAWAYGSNITDENEKKKNEISAELAKFMKEVASDTTKFQWRSYQSEDLKRQFKALTKLGYAALPEDDYAELLDTLSAMESNFAKVKVCDYKDSTKCDLALDPEIEEVISKSRDHEELAYYWREFYDKAGTAVRSQFERYVELNTKAAKLNNFTSGAEAWLDEYEDDTFEQQLEDIFADIRPLYQQIHGYVRFRLRKHYGDAVVSETGPIPMHLLGNMWAQQWSEIADIVSPFPEKPLVDVSAEMEKQGYTPLKMFQMGDDFFTSMNLTKLPQDFWDKSIIEKPTDGRDLVCHASAWDFYLIDDVRIKQCTRVTQDQLFTVHHELGHIQYFLQYQHQPFVYRTGANPGFHEAVGDVLSLSVSTPKHLEKIGLLKDYVRDDEARINQLFLTALDKIVFLPFAFTMDKYRWSLFRGEVDKANWNCAFWKLRDEYSGIEPPVVRSEKDFDAPAKYHISADVEYLRYLVSFIIQFQFYKSACIKAGQYDPDNVELPLDNCDIYGSAAAGAAFHNMLSMGASKPWPDALEAFNGERIMSGKAIAEYFEPLRVWLEAENIKNNVHIGWTTSNKCVS

Source

organism	Drosophila melanogaster
common_name	fruit fly
ncbi_taxonomy_id	7227
host_organism	Komagataella phaffii GS115

Entity 2 polymer

description	VAL-TRP dipeptide
formula_weight	303.4 kDa
src_method	syn
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

Entity 3 branched

description	;beta-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1073.0 kDa
src_method	man
entity_count	1

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	2

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	243

▶

6. Citations (1)

▶

length_a	172.529 Å
length_b	172.529 Å
length_c	103.745 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	18

space_group	H 3
int_tables_number	146
crystal_system	—

resolution	2.200 Å
resolution_low	43.170 Å
r_factor	—
r_work	0.1699
r_free	0.2115

fit	/app/data/saxs_computation/qa/9qa1/9qa1.fit
pddf	/app/data/pr_computation/qa/9qa1/9qa1.pr.out
profile	/app/data/saxs_computation/qa/9qa1/9qa1.dat
