9qal

Solution NMR structure of Arkadia 2 RING domain

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase ARK2C

Homo sapiens

UniProt Q6ZSG1

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 ZINC ION × 2 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
5d0i 5d0i 9qal

3 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
5d0k 5d0k 5d0k 5d0k 5d0m 5ulh 5ulk 7r70 7r70 7r71 9n1f

11 assemblies

View Construct and Data Evidence
UniProt name ARK2C_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–68； UniProt 279–346

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9qal
Deposition date deposition_date2025-02-28
Last revision last_revision2026-03-11
Structure title titleSolution NMR structure of Arkadia 2 RING domain
Keywords keywordsArkadia 2, Arkadia, RNF165, E3 Ub ligase, RING domain, E2 enzyme, TGF-b pathway, UbcH5b, LIGASE; LIGASE
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qal__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

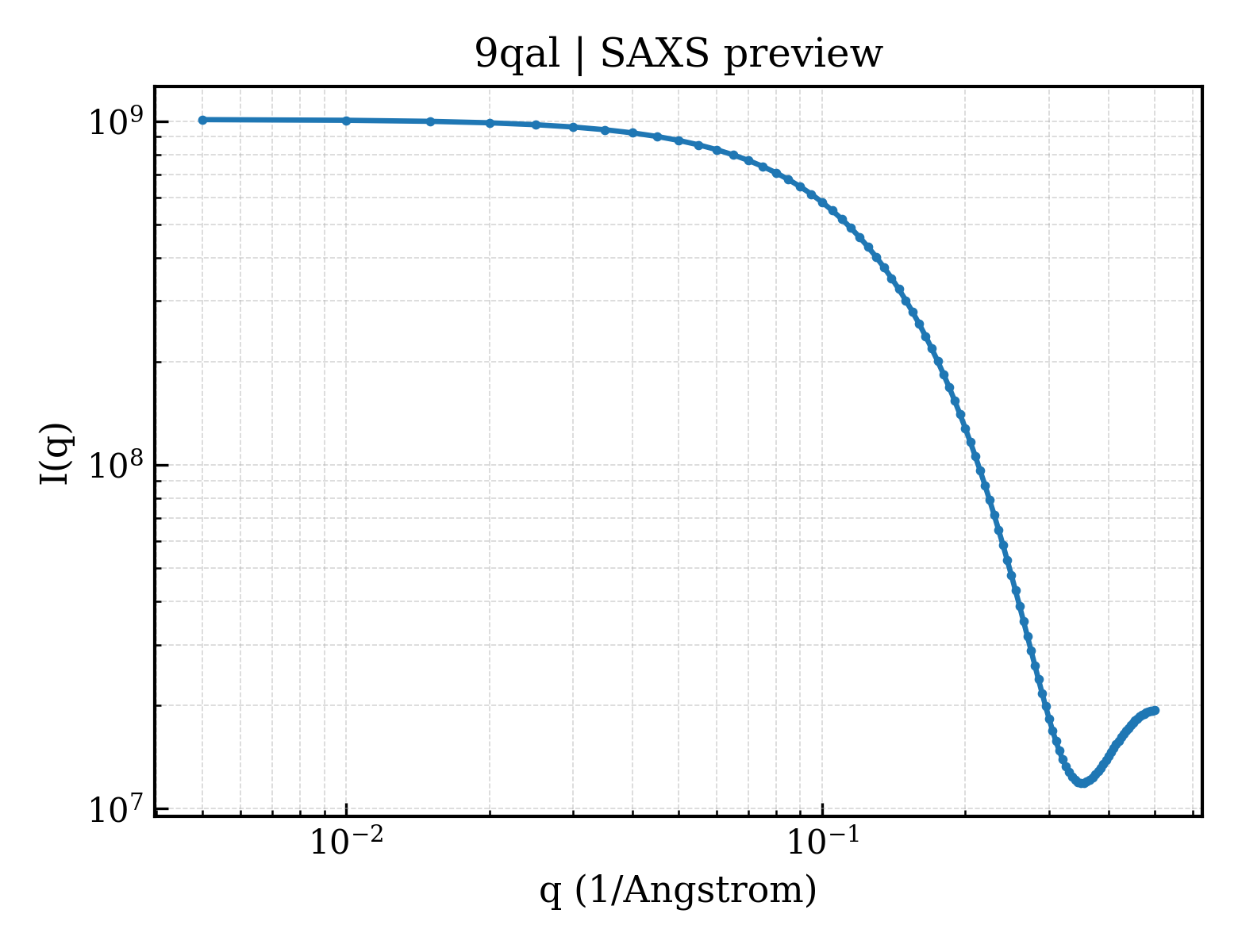

9qal__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

9qal__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）13.45 Å
Rg (electron density)12.31 Å
Total Rg13.38 Å
Atom count1050
Residues68
Excluded volume9480 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9qal__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 9qal__assembly_1__model_2 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 9qal__assembly_1__model_3 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 9qal__assembly_1__model_4 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 9qal__assembly_1__model_5 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 9qal__assembly_1__model_6 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 9qal__assembly_1__model_7 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 9qal__assembly_1__model_8 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 9qal__assembly_1__model_9 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 9qal__assembly_1__model_10 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 11 9qal__assembly_1__model_11 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 12 9qal__assembly_1__model_12 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 13 9qal__assembly_1__model_13 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 14 9qal__assembly_1__model_14 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 15 9qal__assembly_1__model_15 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 16 9qal__assembly_1__model_16 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 17 9qal__assembly_1__model_17 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 18 9qal__assembly_1__model_18 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 19 9qal__assembly_1__model_19 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 20 9qal__assembly_1__model_20 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 21 9qal__assembly_1__model_21 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 22 9qal__assembly_1__model_22 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 23 9qal__assembly_1__model_23 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 24 9qal__assembly_1__model_24 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 25 9qal__assembly_1__model_25 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 26 9qal__assembly_1__model_26 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 27 9qal__assembly_1__model_27 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 28 9qal__assembly_1__model_28 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 29 9qal__assembly_1__model_29 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 30 9qal__assembly_1__model_30 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 31 9qal__assembly_1__model_31 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶
