9qds

Yeast 20S proteasome mutant: beta1_G128V (b1-propeptide deleted) in complex with Carfilzomib

Method: X-RAY DIFFRACTION D_max: 176.3 Å Quality: GOOD

SAXS Profile

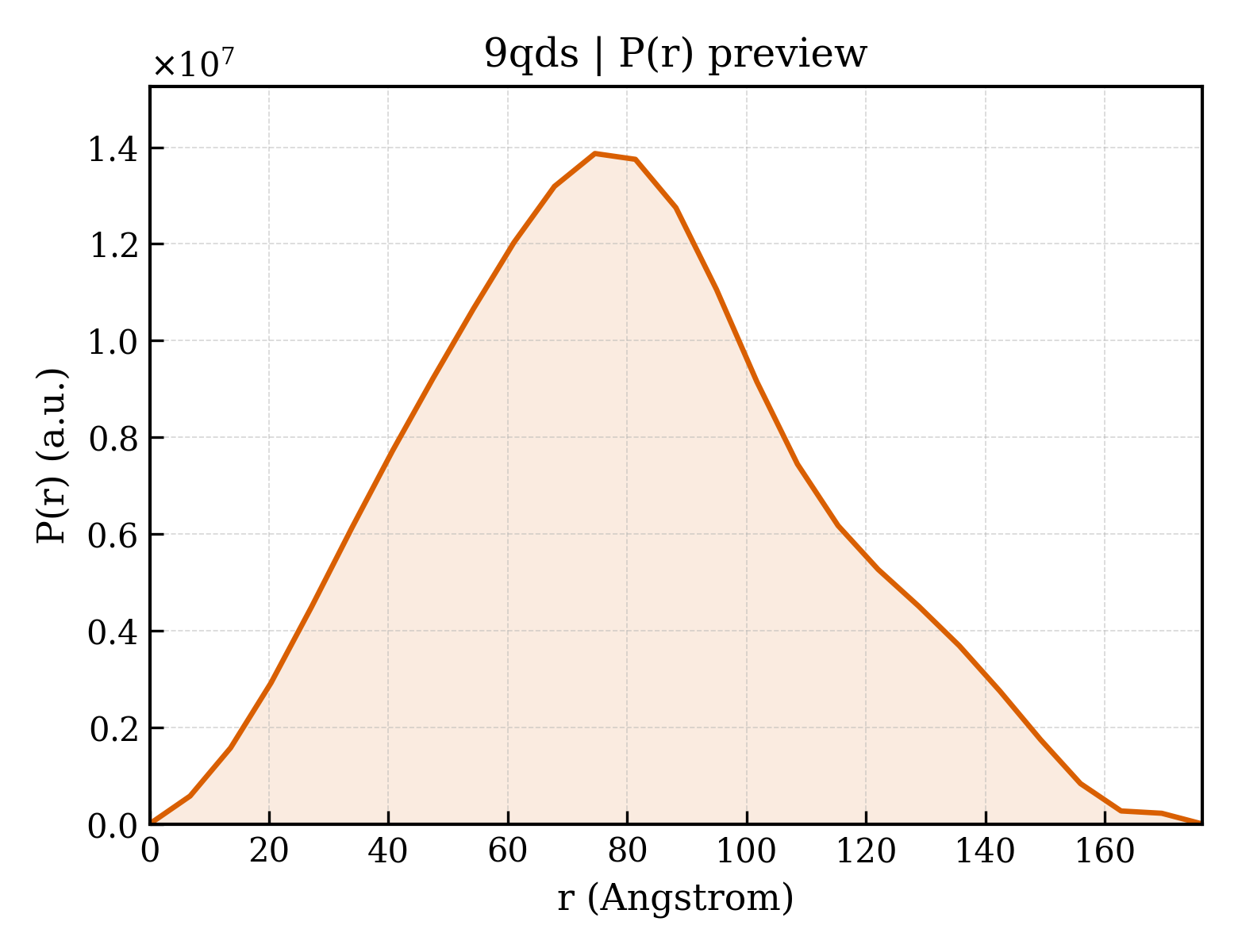

P(r) Distribution

▼

1. Structure Basics

entry_id	9qds
deposition_date	2025-03-06
title	Yeast 20S proteasome mutant: beta1_G128V (b1-propeptide deleted) in complex with Carfilzomib
keywords	Proteasome, Proteasome Associated Autoinflammatory Syndromes, Mutation, Assembly, Maturation, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	60.20 Å
rg_electron	59.70 Å
i0	13801400000.00
molecular_weight	655250.0 kDa
excluded_volume	632760 Å³
envelope_volume	1266400 Å³
shell_volume	169560 Å³
envelope_diameter	194.5 Å
shell_rg	68.05 Å
envelope_rg	57.77 Å
shape_rg	59.69 Å
total_rg	59.82 Å
total_atoms	49671
n_residues	6342
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	176.3 Å
rg_real	59.91 Å
rg_real_error	1.00 Å
i0_real	1.3800e+10
i0_real_error	2.4700e+08
rg_reciprocal	60.41 Å
i0_reciprocal	13810000000.0000
total_estimate	0.8311
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	74.6 Å
skewness	0.210
kurtosis	-0.409
angular_range	— – 0.1300 Å⁻¹
current_alpha	0.0000
highest_alpha	950000000.0000
n_real_points	27
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.015

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (19)

Entity 1 polymer

description	Proteasome subunit alpha type-2
formula_weight	27191.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,O
atom_count	49954

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

Entity 2 polymer

description	Proteasome subunit alpha type-3
formula_weight	28748.2 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,P

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGITKKDEDEEADEDMK

Entity 3 polymer

description	Proteasome subunit alpha type-4
formula_weight	28478.1 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,Q

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

Entity 4 polymer

description	Proteasome subunit alpha type-5
formula_weight	28649.1 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,R

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

Entity 5 polymer

description	Proteasome subunit alpha type-6
formula_weight	25634.0 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,S

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

Entity 6 polymer

description	Probable proteasome subunit alpha type-7
formula_weight	31575.1 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	F,T

MTSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

Entity 7 polymer

description	Proteasome subunit alpha type-1
formula_weight	28033.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	G,U

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

Entity 8 polymer

description	Proteasome subunit beta type-2
formula_weight	25013.4 kDa
ec_number	3.4.25.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	H,V

TIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

Entity 9 polymer

description	Proteasome subunit beta type-3
formula_weight	22627.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	I,W

MSDPSSINGGIVVAMTGKDCVAIACDLRLGSQSLGVSNKFEKIFHYGHVFLGITGLATDVTTLNEMFRYKTNLYKLKEERAIEPETFTQLVSSSLYERRFGPYFVGPVVAGINSKSGKPFIAGFDLIGCIDEAKDFIVSGTASDQLFGMCESLYEPNLEPEDLFETISQALLNAADRDALSGWGAVVYIIKKDEVVKRYLKMRQD

Entity 10 polymer

description	Proteasome subunit beta type-4
formula_weight	22545.7 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	J,X

MDIILGIRVQDSVILASSKAVTRGISVLKDSDDKTRQLSPHTLMSFAGEAGDTVQFAEYIQANIQLYSIREDYELSPQAVSSFVRQELAKSIRSRRPYQVNVLIGGYDKKKNKPELYQIDYLGTKVELPYGAHGYSGFYTFSLLDHHYRPDMTTEEGLDLLKLCVQELEKRMPMDFKGVIVKIVDKDGIRQVDDFQAQ

Entity 11 polymer

description	Proteasome subunit beta type-5
formula_weight	23224.1 kDa
ec_number	3.4.25.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	K,Y

TTLAFRFQGGIIVAVDSRATAGNWVASQTVKKVIEINPFLLGTMAGGAADCQFWETWLGSQCRLHELREKERISVAAASKILSNLVYQYKGAGLSMGTMICGYTRKEGPTIYYVDSDGTRLKGDIFCVGSGQTFAYGVLDSNYKWDLSVEDALYLGKRSILAAAHRDAYSGGSVNLYHVTEDGWIYHGNHDVGELFWKVKEEEGSFNNVIG

Entity 12 polymer

description	Proteasome subunit beta type-6
formula_weight	24883.9 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,Z

QFNPYGDNGGTILGIAGEDFAVLAGDTRNITDYSINSRYEPKVFDCGDNIVMSANGFAADGDALVKRFKNSVKWYHFDHNDKKLSINSAARNIQHLLYGKRFFPYYVHTIIAGLDEDGKGAVYSFDPVGSYEREQCRAGGAAASLIMPFLDNQVNFKNQYEPGTNGKVKKPLKYLSVEEVIKLVRDSFTSATERHIQVGDGLEILIVTKDGVRKEFYELKRD

Entity 13 polymer

description	Proteasome subunit beta type-7
formula_weight	27200.9 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	M,a

TQIANAGASPMVNTQQPIVTGTSVISMKYDNGVIIAADNLGSYGSLLRFNGVERLIPVGDNTVVGISGDISDMQHIERLLKDLVTENAYDNPLADAEEALEPSYIFEYLATVMYQRRSKMNPLWNAIIVAGVQSNGDQFLRYVNLLGVTYSSPTLATGFGAHMANPLLRKVVDRESDIPKTTVQVAEEAIVNAMRVLYYRDARSSRNFSLAIIDKNTGLTFKKNLQVENMKWDFAKDIKGYGTQKI

Entity 14 polymer

description	Proteasome subunit beta type-1
formula_weight	21458.2 kDa
ec_number	3.4.25.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	N,b

SIMAVTFKDGVILGADSRTTTGAYIANRVTDKLTRVHDKIWCCRSGSAADTQAIADIVQYHLELYTSQYGTPSTETAASVFKELCYENKDNLTAGIIVAGYDDKNKGEVYTIPLGGSVHKLPYAIAVSGSTFIYGYCDKNFRENMSKEETVDFIKHSLSQAIKWDGSSGGVIRMVVLTAAGVERLIFYPDEYEQL

Source

organism	Saccharomyces cerevisiae
common_name	;brewer's yeast ;
ncbi_taxonomy_id	4932
host_organism	Saccharomyces cerevisiae

Entity 15 polymer

description	3-PYRIDIN-4-YL-2,4-DIHYDRO-INDENO[1,2-.C.]PYRAZOLE
formula_weight	857.0 kDa
src_method	syn
entity_count	6

Polymer

type	polypeptide(L)
strand_id	d,e,f,g,h,i

XFLFX

Entity 16 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

Entity 17 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	5

Entity 18 non-polymer

description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
formula_weight	195.2 kDa
src_method	syn
entity_count	4

Entity 19 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	273

▶

6. Citations (1)

▶

length_a	136.750 Å
length_b	300.880 Å
length_c	145.060 Å
angle_alpha	90.00 °
angle_beta	113.56 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.800 Å
resolution_low	15.000 Å
r_factor	0.1746
r_work	0.1726
r_free	0.2111

fit	/app/data/saxs_computation/qd/9qds/9qds.fit
pddf	/app/data/pr_computation/qd/9qds/9qds.pr.out
profile	/app/data/saxs_computation/qd/9qds/9qds.dat
