9qea

CRYSTAL STRUCTURE OF LYSYL-TRNA SYNTHETASE FROM Mycobacterium tuberculosis COMPLEXED WITH L-LYSINE AND INHIBITOR DDD01839469

Method: X-RAY DIFFRACTION D_max: 97.7 Å Quality: GOOD

SAXS Profile

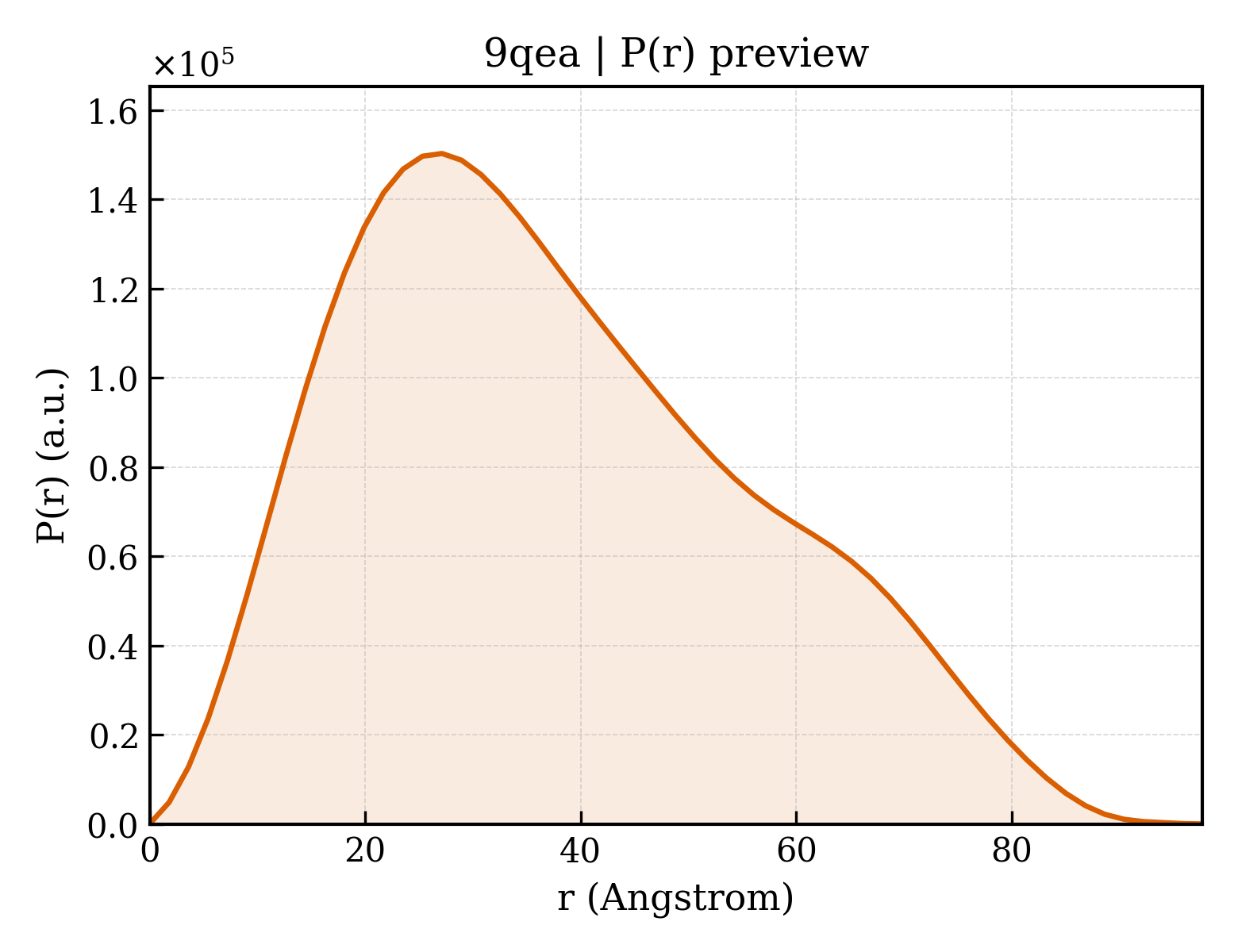

P(r) Distribution

▼

1. Structure Basics

entry_id	9qea
deposition_date	2025-03-07
title	CRYSTAL STRUCTURE OF LYSYL-TRNA SYNTHETASE FROM Mycobacterium tuberculosis COMPLEXED WITH L-LYSINE AND INHIBITOR DDD01839469
keywords	ligase, inhibitor; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.46 Å
rg_electron	29.17 Å
i0	85714000.00
molecular_weight	48194.0 kDa
excluded_volume	46322 Å³
envelope_volume	86604 Å³
shell_volume	26504 Å³
envelope_diameter	97.0 Å
shell_rg	34.23 Å
envelope_rg	28.92 Å
shape_rg	29.15 Å
total_rg	29.60 Å
total_atoms	3657
n_residues	466
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	97.7 Å
rg_real	29.65 Å
rg_real_error	0.91 Å
i0_real	8.5710e+07
i0_real_error	1.3200e+06
rg_reciprocal	29.57 Å
i0_reciprocal	85710000.0000
total_estimate	0.8600
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	27.1 Å
skewness	0.444
kurtosis	-0.571
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	8251000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.819; Smooth: 0.918

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Lysine--tRNA ligase 1
formula_weight	58189.7 kDa
ec_number	6.1.1.6
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3668

MGSSHHHHHHSSGENLYFQGHMSAADTAEDLPEQFRIRRDKRARLLAQGRDPYPVAVPRTHTLAEVRAAHPDLPIDTATEDIVGVAGRVIFARNSGKLCFATLQDGDGTQLQVMISLDKVGQAALDAWKADVDLGDIVYVHGAVISSRRGELSVLADCWRIAAKSLRPLPVAHKEMSEESRVRQRYVDLIVRPEARAVARLRIAVVRAIRTALQRRGFLEVETPVLQTLAGGAAARPFATHSNALDIDLYLRIAPELFLKRCIVGGFDKVFELNRVFRNEGADSTHSPEFSMLETYQTYGTYDDSAVVTRELIQEVADEAIGTRQLPLPDGSVYDIDGEWATIQMYPSLSVALGEEITPQTTVDRLRGIADSLGLEKDPAIHDNRGFGHGKLIEELWERTVGKSLSAPTFVKDFPVQTTPLTRQHRSIPGVTEKWDLYLRGIELATGYSELSDPVVQRERFADQARAAAAGDDEAMVLDEDFLAALEYGMPPCTGTGMGIDRLLMSLTGLSIRETVLFPIVRPHSN

Source

organism	Mycobacterium tuberculosis
ncbi_taxonomy_id	1773
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	LYSINE
formula_weight	147.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	2-azanyl-6-cyclohexyl-4-ethoxy-7~{H}-pyrrolo[3,4-d]pyrimidin-5-one
formula_weight	276.3 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	11

▶

6. Citations (1)

▶

length_a	84.999 Å
length_b	84.999 Å
length_c	148.045 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

resolution	2.300 Å
resolution_low	60.176 Å
r_factor	—
r_work	0.2548
r_free	0.3106

fit	/app/data/saxs_computation/qe/9qea/9qea.fit
pddf	/app/data/pr_computation/qe/9qea/9qea.pr.out
profile	/app/data/saxs_computation/qe/9qea/9qea.dat
