SAXSdb — 9qei

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lysine--tRNA ligase 1

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	LYSINE × 2 2-azanyl-4-ethoxy-6-[(1~{R},2~{S})-2-oxidanylcyclohexyl]-7~{H}-pyrrolo[3,4-d]pyrimidin-5-one × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYK1_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–526； UniProt 1–505

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qei
Deposition date deposition_date	2025-03-10
Structure title title	CRYSTAL STRUCTURE OF LYSYL-TRNA SYNTHETASE FROM Mycobacterium tuberculosis COMPLEXED WITH L-LYSINE AND INHIBITOR DDD01866774
Keywords keywords	ligase, inhibitor; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qei__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9qei__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

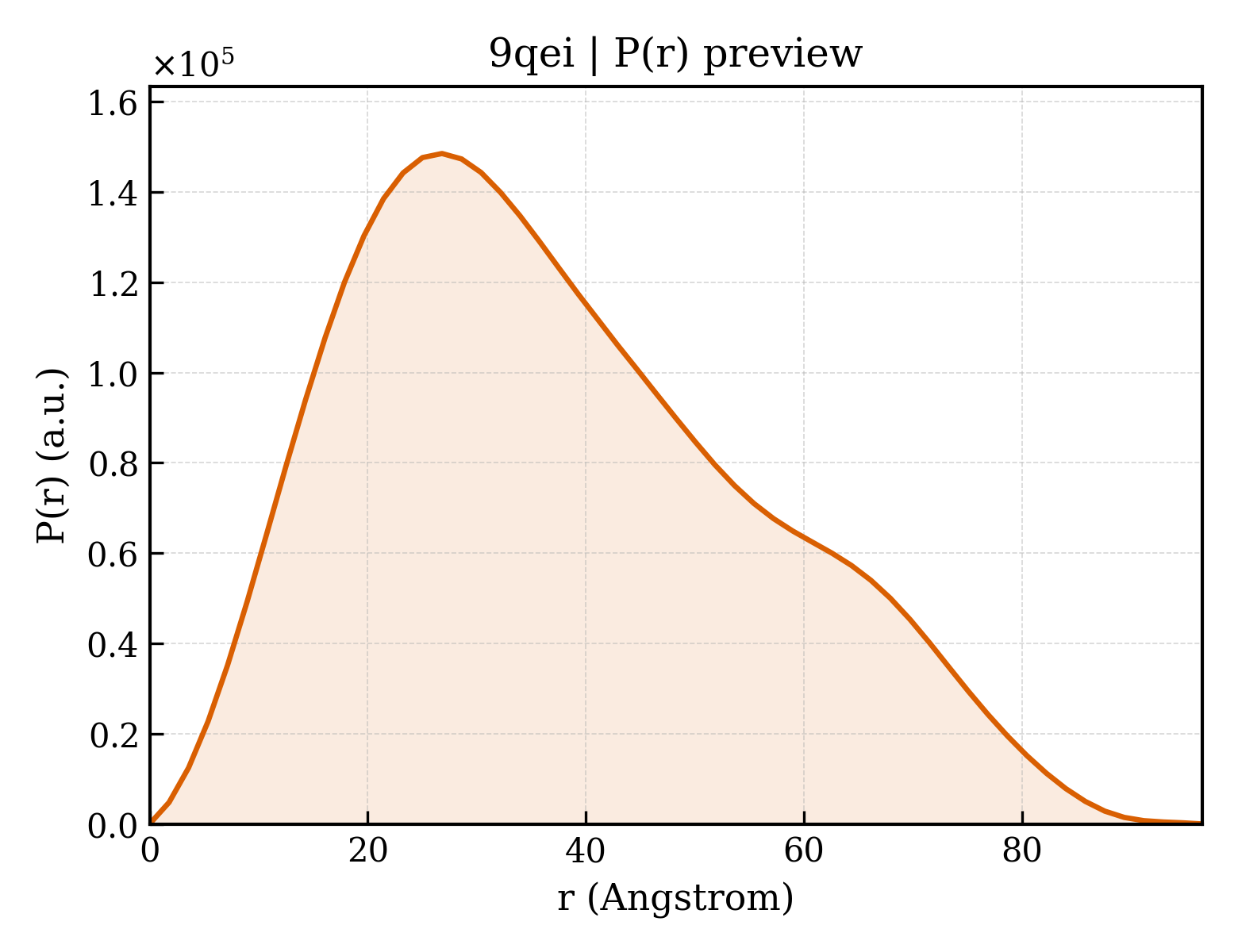

9qei__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.93 Å
Rg (electron density)	31.18 Å
Total Rg	31.80 Å
Atom count	7206
Residues	924
Excluded volume	127930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qei__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Lysine--tRNA ligase 1
Molecular weight formula_weight	58189.7 kDa
EC 编号 ec_number	6.1.1.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3629

MGSSHHHHHHSSGENLYFQGHMSAADTAEDLPEQFRIRRDKRARLLAQGRDPYPVAVPRTHTLAEVRAAHPDLPIDTATEDIVGVAGRVIFARNSGKLCFATLQDGDGTQLQVMISLDKVGQAALDAWKADVDLGDIVYVHGAVISSRRGELSVLADCWRIAAKSLRPLPVAHKEMSEESRVRQRYVDLIVRPEARAVARLRIAVVRAIRTALQRRGFLEVETPVLQTLAGGAAARPFATHSNALDIDLYLRIAPELFLKRCIVGGFDKVFELNRVFRNEGADSTHSPEFSMLETYQTYGTYDDSAVVTRELIQEVADEAIGTRQLPLPDGSVYDIDGEWATIQMYPSLSVALGEEITPQTTVDRLRGIADSLGLEKDPAIHDNRGFGHGKLIEELWERTVGKSLSAPTFVKDFPVQTTPLTRQHRSIPGVTEKWDLYLRGIELATGYSELSDPVVQRERFADQARAAAAGDDEAMVLDEDFLAALEYGMPPCTGTGMGIDRLLMSLTGLSIRETVLFPIVRPHSN

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	LYSINE
Molecular weight formula_weight	147.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-azanyl-4-ethoxy-6-[(1~{R},2~{S})-2-oxidanylcyclohexyl]-7~{H}-pyrrolo[3,4-d]pyrimidin-5-one
Molecular weight formula_weight	292.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	26

▶

Unit-cell length a length_a	83.929 Å
Unit-cell length b length_b	83.929 Å
Unit-cell length c length_c	147.289 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	55.417 Å
R factor r_factor	—
R_work r_work	0.2500
R_free r_free	0.3200

CRYSTAL STRUCTURE OF LYSYL-TRNA SYNTHETASE FROM Mycobacterium tuberculosis COMPLEXED WITH L-LYSINE AND INHIBITOR DDD01866774
