9qf5

Structure of P. furiosus 70S ribosome grown at 102deg

Method: ELECTRON MICROSCOPY Dmax: 302.1 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9qf5

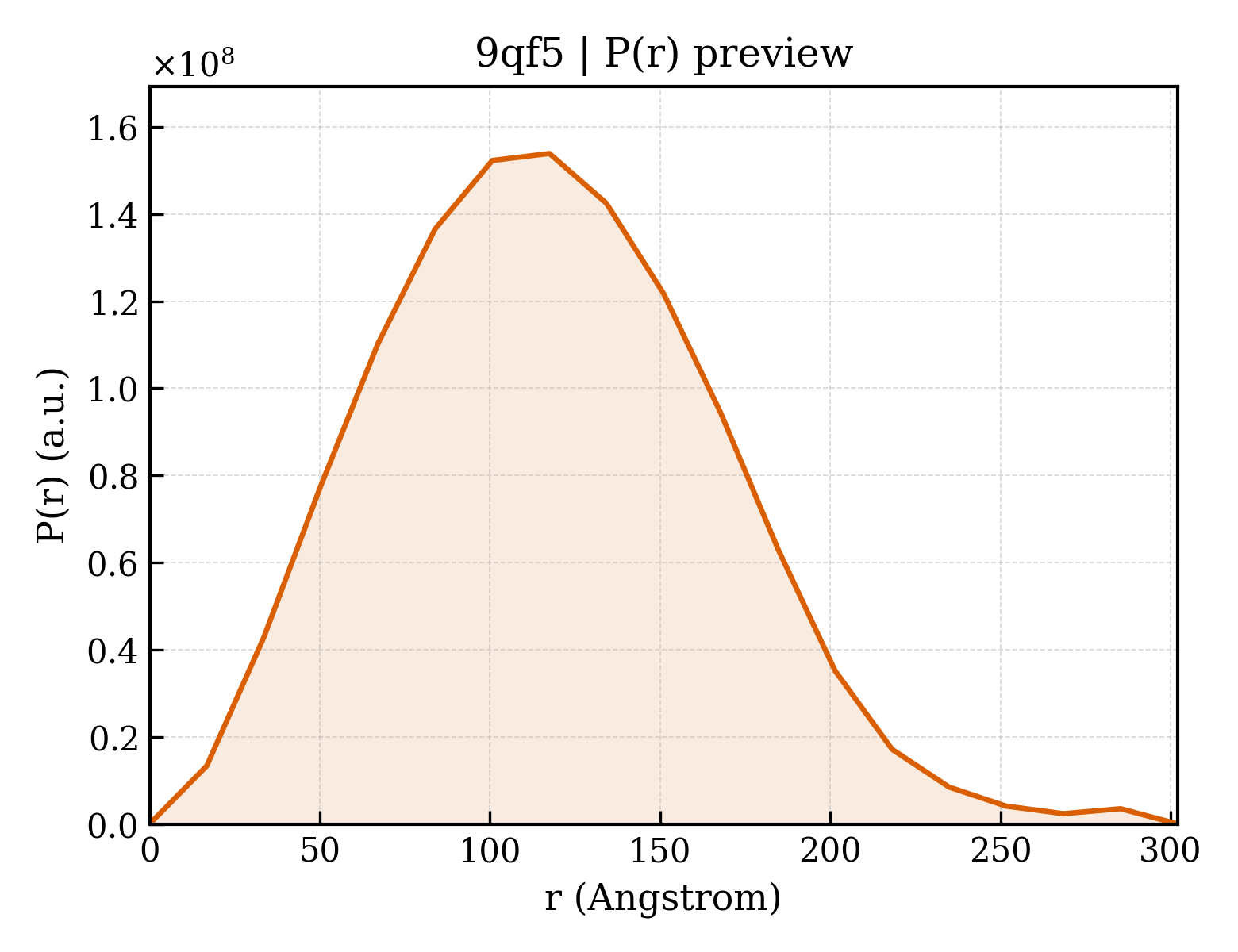

P(r) Distribution

P(r) distribution for 9qf5

1. Structure Basics

entry_id9qf5
deposition_date2025-03-11
titleStructure of P. furiosus 70S ribosome grown at 102deg
keywordsRNA modification, cryo-EM, ribosome; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier87.64
rg_electron88.13
i0251347000000.00
molecular_weight2275800.0 kDa
excluded_volume1900900 ų
envelope_volume4326200 ų
shell_volume375030 ų
envelope_diameter288.1
shell_rg102.80
envelope_rg86.32
shape_rg88.44
total_rg87.79
total_atoms162635
n_residues12229
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax302.1
rg_real89.64
rg_real_error1.44
i0_real2.4880e+11
i0_real_error5.5410e+09
rg_reciprocal89.28
i0_reciprocal252600000000.0000
total_estimate0.9033
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary117.5
skewness0.321
kurtosis-0.069
angular_range— – 0.0900 −1
current_alpha1.2550
highest_alpha8415000000.0000
n_real_points19
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.814; Stabil: 0.915; Sysdev: 1.000; Positv: 1.000; Valcen: 0.912; Smooth: 0.655

4. Crystallography & Experiment

5. Entities & Polymer Info (65)

6. Citations (1)

7. Files & Curves (10)
