1. Structure Basics

entry_id	9qkz
deposition_date	2025-03-20
title	Cryo-EM structure of CDK11B-cyclin L2-SAP30BP bound to AMP-PNP
keywords	kinase, cyclin-dependent kinase, transcription, molecular complex, SPLICING; SPLICING
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.09 Å
rg_electron	28.23 Å
i0	97977000.00
molecular_weight	79303.0 kDa
excluded_volume	99991 Å³
envelope_volume	120180 Å³
shell_volume	35112 Å³
envelope_diameter	91.9 Å
shell_rg	35.86 Å
envelope_rg	28.31 Å
shape_rg	28.23 Å
total_rg	28.99 Å
total_atoms	5570
n_residues	678
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.2 Å
rg_real	29.01 Å
rg_real_error	0.64 Å
i0_real	9.7980e+07
i0_real_error	1.5160e+06
rg_reciprocal	29.05 Å
i0_reciprocal	97980000.0000
total_estimate	0.9105
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	32.8 Å
skewness	0.206
kurtosis	-0.615
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	34470000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.962

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	SAP30-binding protein
formula_weight	34186.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5615

SNAMAGKKNVLSSLAVYAEDSEPESDGEAGIEAVGSAAEEKGGLVSDAYGEDDFSRLGGDEDGYEEEEDENSRQSEDDDSETEKPEADDPKDNTEAEKRDPQELVASFSERVRNMSPDEIKIPPEPPGRCSNHLQDKIQKLYERKIKEGMDMNYIIQRKKEFRNPSIYEKLIQFCAIDELGTNYPKDMFDPHGWSEDSYYEALAKAQKIEMDKLEKAKKERTKIEFVTGTKKGTTTNATSTTTTTASTAVADAQKRKSKWDSAIPVTTIAQPTILTTTATLPAVVTVTTSASGSKTTVISAVGTIVKKAKQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Cyclin-dependent kinase 11B
formula_weight	50050.6 kDa
ec_number	2.7.11.22
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

SNAMSEDEERENENHLLVVPESRFDRDSGESEEAEEEVGEGTPQSSALTEGDYVPDSPALSPIELKQELPKYLPALQGCRSVEEFQCLNRIEEGTYGVVYRAKDKKTDEIVALKRLKMEKEKEGFPITSLREINTILKAQHPNIVTVREIVVGSNMDKIYIVMNYVEHDLKSLMETMKQPFLPGEVKTLMIQLLRGVKHLHDNWILHRDLKTSNLLLSHAGILKVGDFGLAREYGSPLKAYTPVVVTLWYRAPELLLGAKEYSTAVDMWSVGCIFGELLTQKPLFPGKSEIDQINKVFKDLGTPSEKIWPGYSELPAVKKMTFSEHPYNNLRKRFGALLSDQGFDLMNKFLTYFPGRRISAEDGLKHEYFRETPLPIDPSMFPTWPAKSEQQRVKRGTSPRPPEGGLGYSQLGDDDLKETGFHLTTTNQGASAAGPGFSLKF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 3 polymer

description	Cyclin-L2
formula_weight	35690.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

SNAMAAAAAAAGAAGSAAPAAAAGAPGSGGAPSGSQGVLIGDRLYSGVLITLENCLLPDDKLRFTPSMSSGLDTDTETDLRVVGCELIQAAGILLRLPQVAMATGQVLFQRFFYTKSFVKHSMEHVSMACVHLASKIEEAPRRIRDVINVFHRLRQLRDKKKPVPLLLDQDYVNLKNQIIKAERRVLKELGFCVHVKHPHKIIVMYLQVLECERNQHLVQTSWNYMNDSLRTDVFVRFQPESIACACIYLAARTLEIPLPNRPHWFLLFGATEEEIQEICLKILQLYARKKVDLTHLEGEVEKRKHAIEEAKAQARGLLPGG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 non-polymer

description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
formula_weight	506.2 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	45

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.30 Å
resolution_method	—
num_particles	783863

fit	/app/data/saxs_computation/qk/9qkz/9qkz.fit
pddf	/app/data/pr_computation/qk/9qkz/9qkz.pr.out
profile	/app/data/saxs_computation/qk/9qkz/9qkz.dat

Cryo-EM structure of CDK11B-cyclin L2-SAP30BP bound to AMP-PNP

SAXS Profile

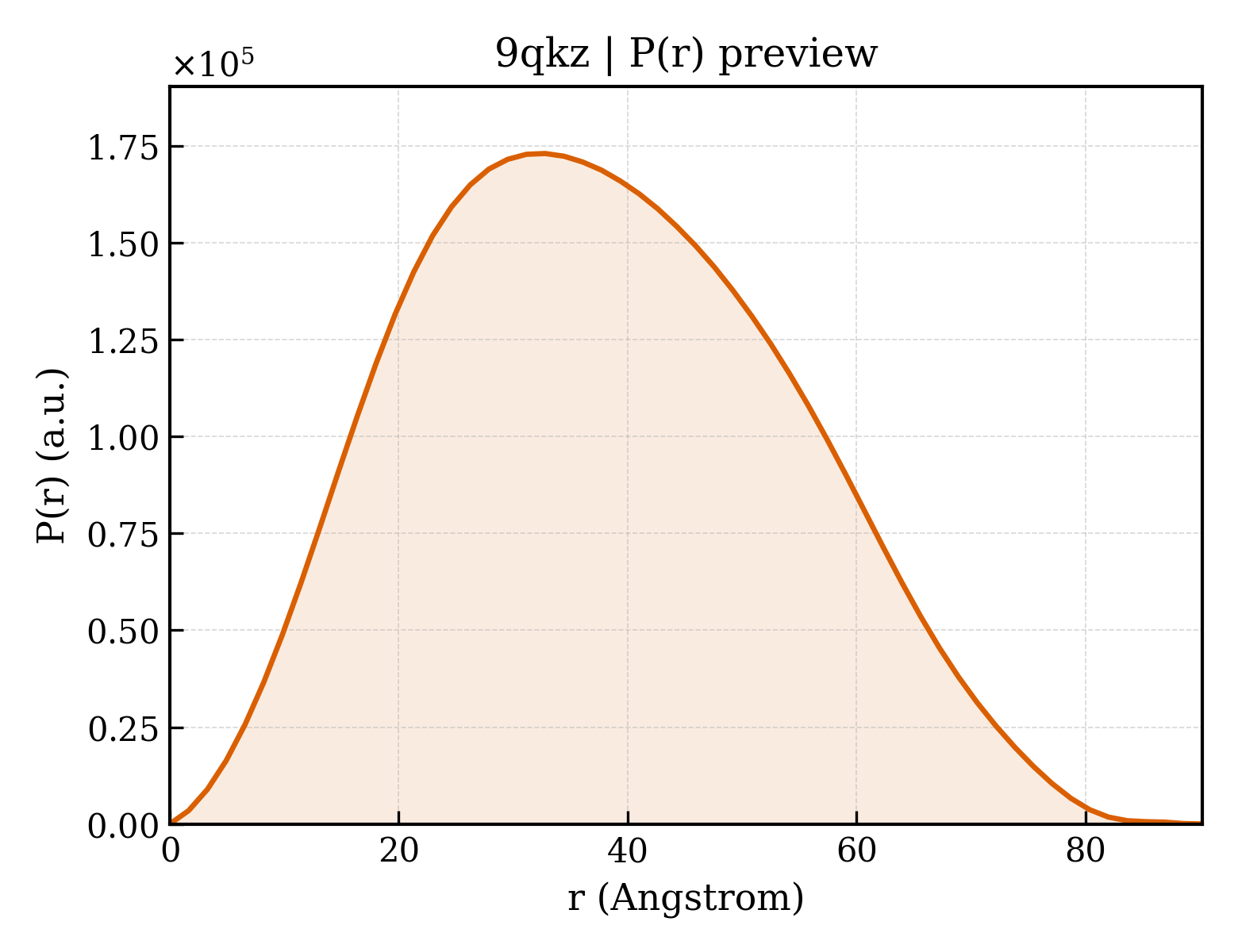

P(r) Distribution
