9qlr
Nonamer crystal structure of the transcription factor MraZ from Mycoplasma genitalium

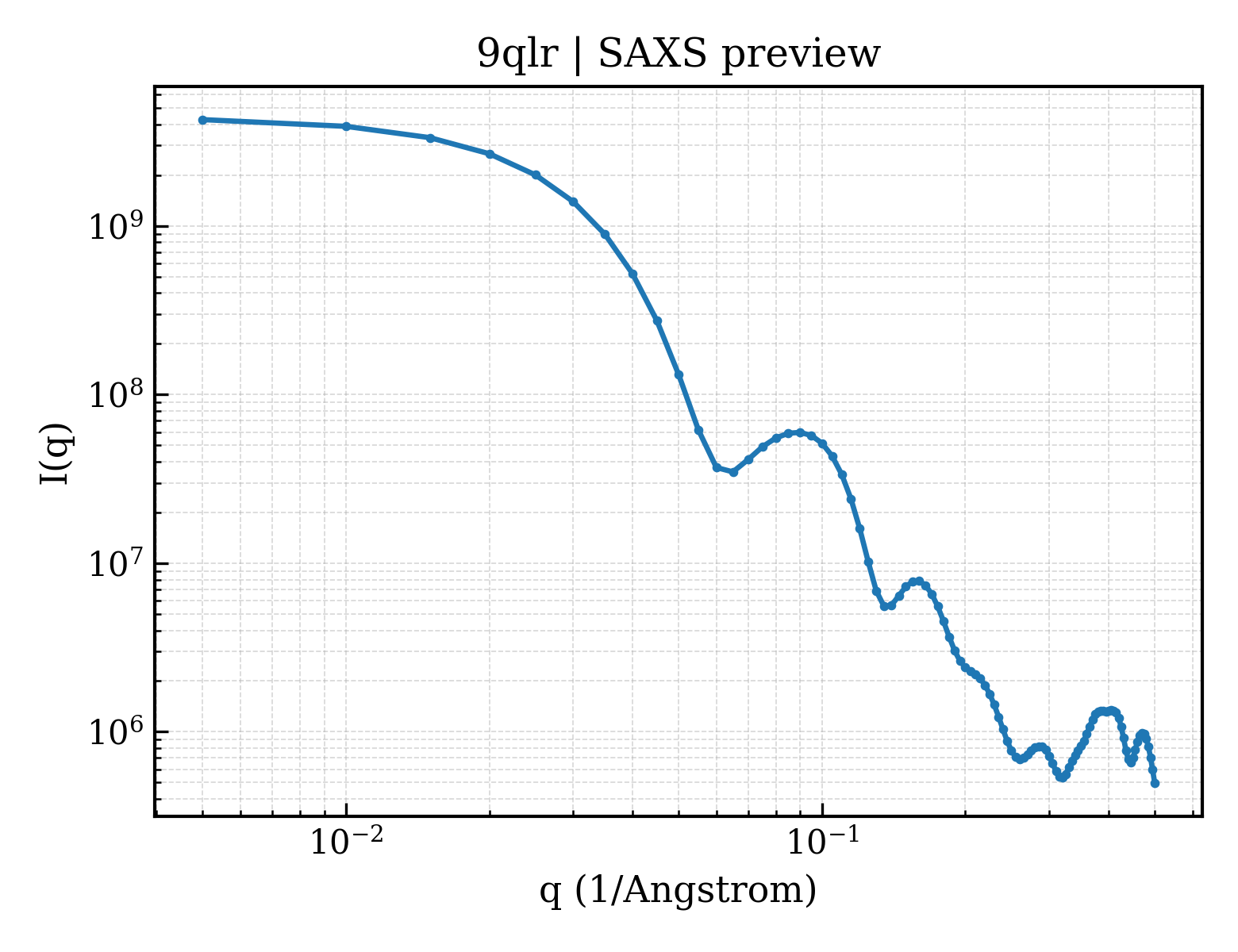

SAXS Profile

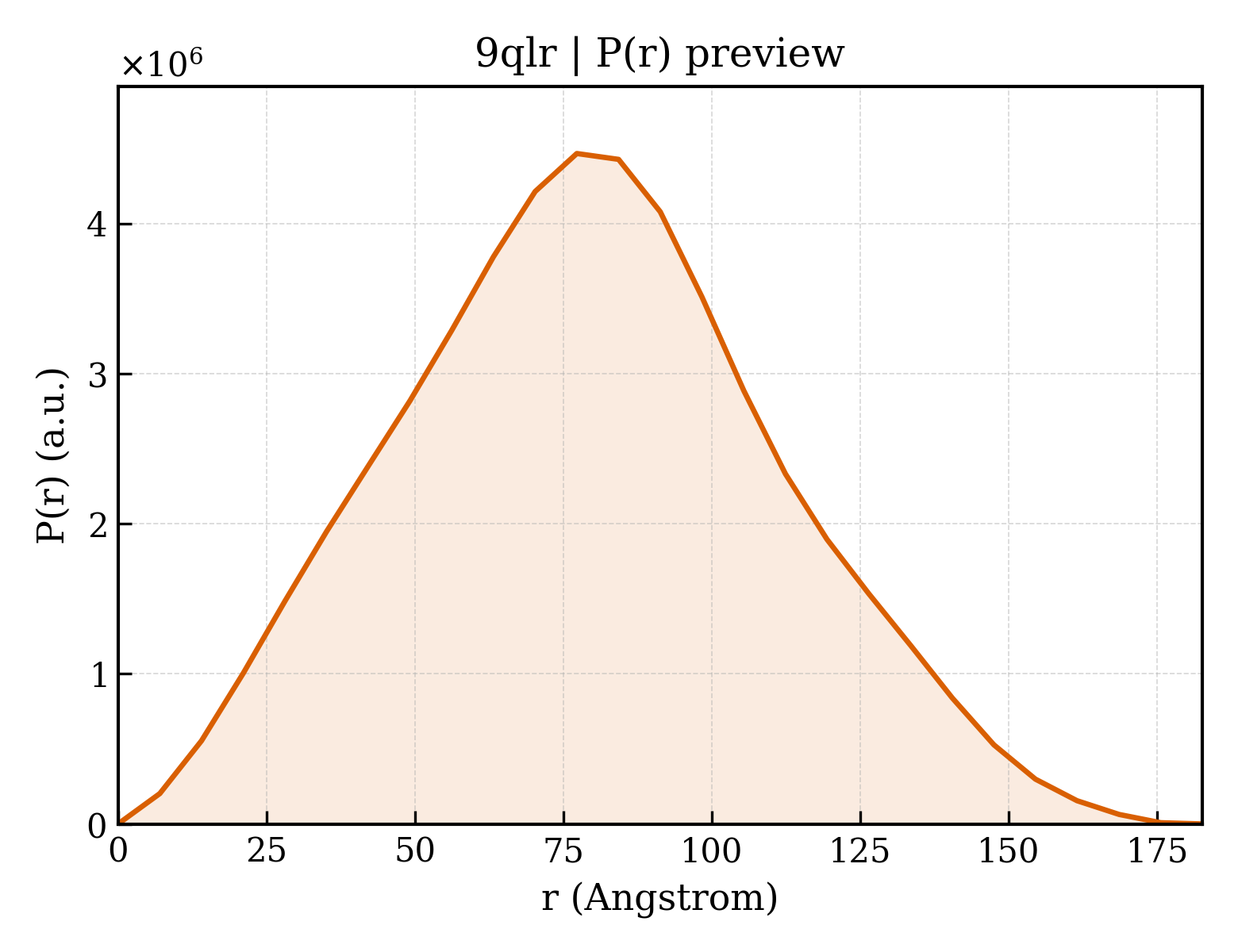

P(r) Distribution
1. Structure Basics
| entry_id | 9qlr |
| deposition_date | 2025-03-21 |
| title | Nonamer crystal structure of the transcription factor MraZ from Mycoplasma genitalium |
| keywords | Transcription factor, nonamer, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 60.69 Å |
| rg_electron | 60.29 Å |
| i0 | 4401870000.00 |
| molecular_weight | 570390.0 kDa |
| excluded_volume | 718460 ų |
| envelope_volume | 1131800 ų |
| shell_volume | 154270 ų |
| envelope_diameter | 188.9 Å |
| shell_rg | 67.08 Å |
| envelope_rg | 56.83 Å |
| shape_rg | 60.25 Å |
| total_rg | 60.60 Å |
| total_atoms | 40248 |
| n_residues | 4932 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 182.6 Å |
| rg_real | 60.31 Å |
| rg_real_error | 1.09 Å |
| i0_real | 4.4020e+09 |
| i0_real_error | 8.7390e+07 |
| rg_reciprocal | 60.98 Å |
| i0_reciprocal | 4407000000.0000 |
| total_estimate | 0.8371 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 77.3 Å |
| skewness | 0.131 |
| kurtosis | -0.389 |
| angular_range | — – 0.1300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 456100000.0000 |
| n_real_points | 27 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.218 |
