9r4j

CryoEM structure of MraZ in complex with its promoter from Mycoplasma genitalium

Method: ELECTRON MICROSCOPY D_max: 120.5 Å Quality: GOOD

SAXS Profile

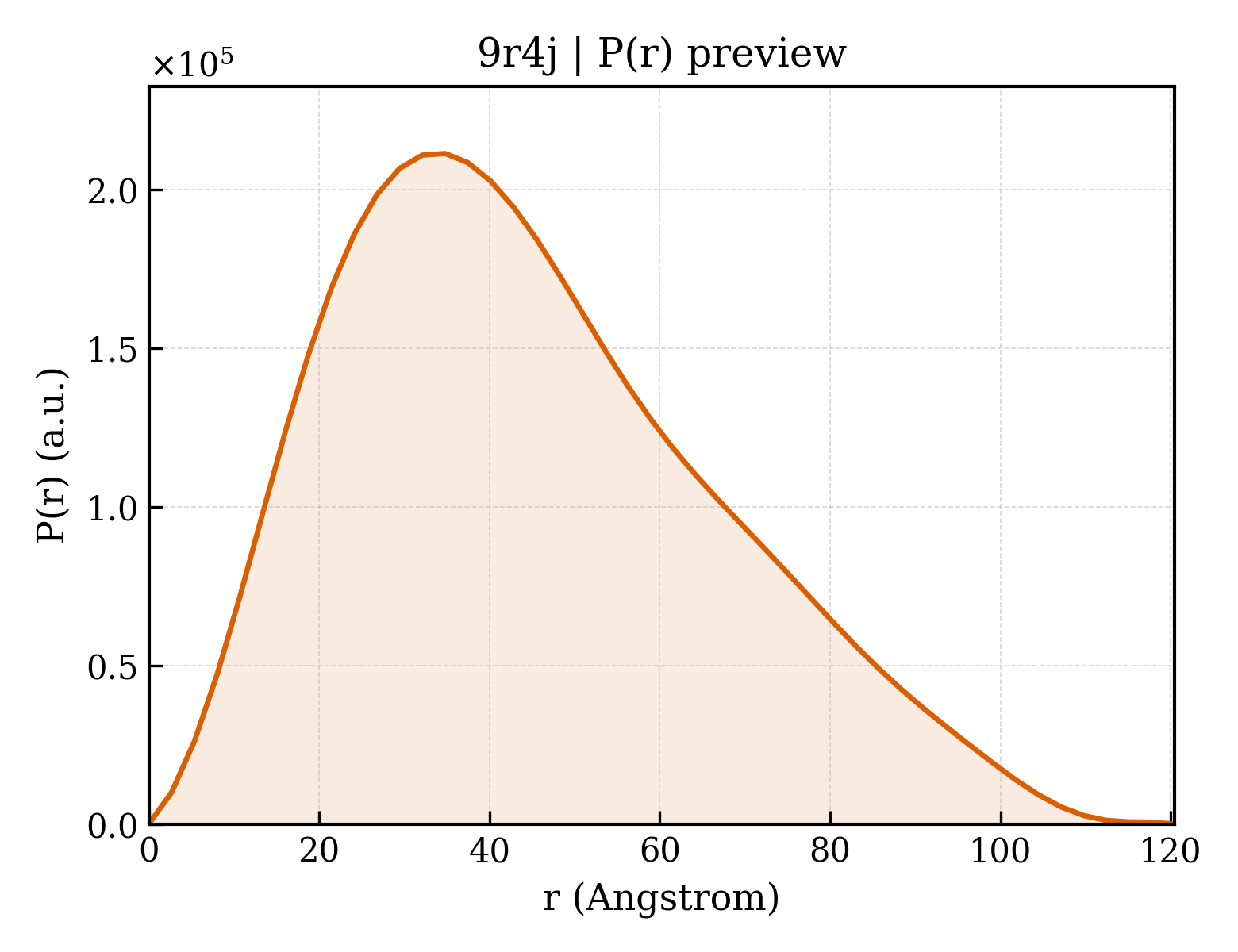

P(r) Distribution

▼

1. Structure Basics

entry_id	9r4j
deposition_date	2025-05-07
title	CryoEM structure of MraZ in complex with its promoter from Mycoplasma genitalium
keywords	MraZ, transcription factor, DNA BINDING PROTEIN; DNA BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.95 Å
rg_electron	34.49 Å
i0	143621000.00
molecular_weight	83354.0 kDa
excluded_volume	98834 Å³
envelope_volume	136910 Å³
shell_volume	35198 Å³
envelope_diameter	127.2 Å
shell_rg	38.31 Å
envelope_rg	34.83 Å
shape_rg	34.42 Å
total_rg	34.94 Å
total_atoms	5788
n_residues	607
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	120.5 Å
rg_real	35.22 Å
rg_real_error	1.11 Å
i0_real	1.4360e+08
i0_real_error	2.5680e+06
rg_reciprocal	35.05 Å
i0_reciprocal	143600000.0000
total_estimate	0.8492
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	34.8 Å
skewness	0.511
kurtosis	-0.349
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	11310000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.830; Smooth: 0.842

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Transcriptional regulator MraZ
formula_weight	18496.9 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	D,B,C,A
atom_count	5788

MGSSHHHHHHSSGLVPRGSHMLLGTFNLTLDNKNRISLPAKLRSFFDSSIVINRGFENCLEIRKPADFESYFQTFNNFPNTQKDTRTLKRLIFANANLVELDSANRILIPNNLISDAKLDKEIVLIGQFDHLEVWDKVQYEQYLASSESLETVAERMKDAK

Source

organism	Mycoplasmoides genitalium
ncbi_taxonomy_id	2097
host_organism	Escherichia coli

Entity 2 polymer

description	DNA (33-MER)
formula_weight	10290.7 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	Y

TTTAAAAGTGTCGCAAAGTGTGACAAAGTGGAA

Entity 3 polymer

description	DNA (35-MER)
formula_weight	10607.8 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	Z

TTCCACTTTGTCACACTTTGCGACACTTTTAAACA

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.36 Å
resolution_method	—
num_particles	928675

fit	/app/data/saxs_computation/r4/9r4j/9r4j.fit
pddf	/app/data/pr_computation/r4/9r4j/9r4j.pr.out
profile	/app/data/saxs_computation/r4/9r4j/9r4j.dat
