9qop

Binary complex of human Importin-9 with one homodimer of Akirin-2

Method: ELECTRON MICROSCOPY D_max: 107.1 Å Quality: GOOD

SAXS Profile

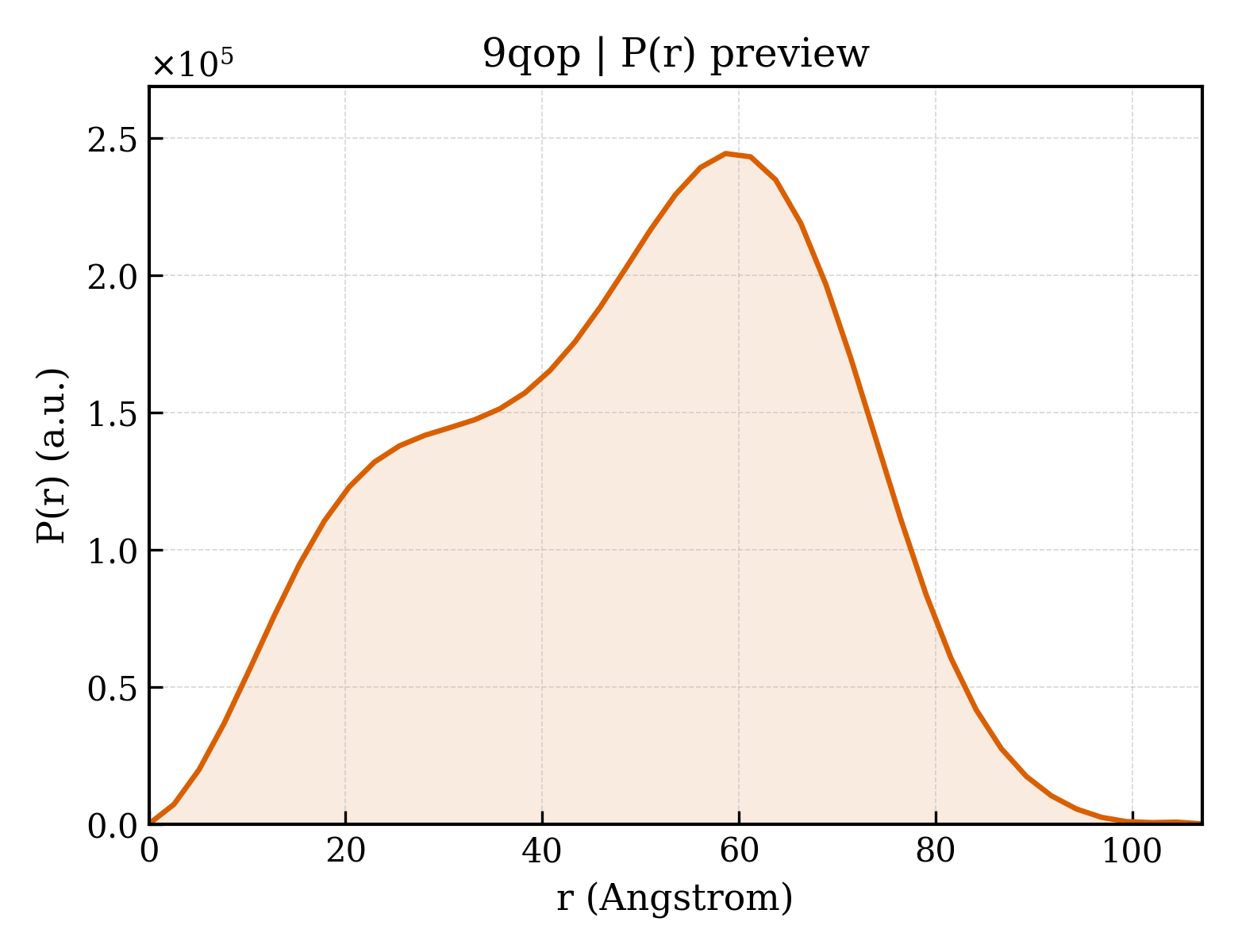

P(r) Distribution

▼

1. Structure Basics

entry_id	9qop
deposition_date	2025-03-26
title	Binary complex of human Importin-9 with one homodimer of Akirin-2
keywords	20S proteasome, 20S, proteasome, nuclear import, akirin, akirin2, importin 9, importin, PROTEIN TRANSPORT; PROTEIN TRANSPORT
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.55 Å
rg_electron	36.81 Å
i0	152465000.00
molecular_weight	60693.0 kDa
excluded_volume	59559 Å³
envelope_volume	168090 Å³
shell_volume	39319 Å³
envelope_diameter	112.1 Å
shell_rg	42.90 Å
envelope_rg	33.13 Å
shape_rg	36.81 Å
total_rg	37.26 Å
total_atoms	6492
n_residues	1083
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	107.1 Å
rg_real	37.21 Å
rg_real_error	0.58 Å
i0_real	1.5250e+08
i0_real_error	2.4220e+06
rg_reciprocal	37.42 Å
i0_reciprocal	152500000.0000
total_estimate	0.8747
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	58.6 Å
skewness	-0.208
kurtosis	-0.760
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0000
highest_alpha	18640000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.898

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Akirin-2
formula_weight	22525.6 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,C
atom_count	6492

MACGATLKRTLDFDPLLSPASPKRRRCAPLSAPTSAAASPLSAAAATAASFSAAAASPQKYLRMEPSPFGDVSSRLTTEQILYNIKQEYKRMQKRRHLETSFQQTDPCCTSDAQPHAFLLSGPASPGTSSAASSPLKKEQPLFTLRQVGMICERLLKEREEKVREEYEEILNTKLAEQYDAFVKFTHDQIMRRYGEQPASYVS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	Importin-9
formula_weight	116062.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MAAAAAAGAASGLPGPVAQGLKEALVDTLTGILSPVQEVRAAAEEQIKVLEVTEEFGVHLAELTVDPQGALAIRQLASVILKQYVETHWCAQSEKFRPPETTERAKIVIRELLPNGLRESISKVRSSVAYAVSAIAHWDWPEAWPQLFNLLMEMLVSGDLNAVHGAMRVLTEFTREVTDTQMPLVAPVILPEMYKIFTMAEVYGIRTRSRAVEIFTTCAHMICNMEELEKGAAKVLIFPVVQQFTEAFVQALQIPDGPTSDSGFKMEVLKAVTALVKNFPKHMVSSMQQILPIVWNTLTESAAFYVRTEVNYTEEVEDPVDSDGEVLGFENLVFSIFEFVHALLENSKFKSTVKKALPELIYYIILYMQITEEQIKVWTANPQQFVEDEDDDTFSYTVRIAAQDLLLAVATDFQNESAAALAAAATRHLQEAEQTKNSGTEHWWKIHEACMLALGSVKAIITDSVKNGRIHFDMHGFLTNVILADLNLSVSPFLLGRALWAASRFTVAMSPELIQQFLQATVSGLHETQPPSVRISAVRAIWGYCDQLKVSESTHVLQPFLPSILDGLIHLAAQFSSEVLNLVMETLCIVCTVDPEFTASMESKICPFTIAIFLKYSNDPVVASLAQDIFKELSQIEACQGPMQMRLIPTLVSIMQAPADKIPAGLCATAIDILTTVVRNTKPPLSQLLICQAFPAVAQCTLHTDDNATMQNGGECLRAYVSVTLEQVAQWHDEQGHNGLWYVMQVVSQLLDPRTSEFTAAFVGRLVSTLISKAGRELGENLDQILRAILSKMQQAETLSVMQSLIMVFAHLVHTQLEPLLEFLCSLPGPTGKPALEFVMAEWTSRQHLFYGQYEGKVSSVALCKLLQHGINADDKRLQDIRVKGEEIYSMDEGIRTRSKSAKNPERWTNIPLLVKILKLIINELSNVMEANAARQATPAEWSQDDSNDMWEDQEEEEEEEEDGLAGQLLSDILATSKYEEDYYEDDEEDDPDALKDPLYQIDLQAYLTDFLCQFAQQPCYIMFSGHLNDNERRVLQTIGI

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.700 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.70 Å
resolution_method	—
num_particles	360044

fit	/app/data/saxs_computation/qo/9qop/9qop.fit
pddf	/app/data/pr_computation/qo/9qop/9qop.pr.out
profile	/app/data/saxs_computation/qo/9qop/9qop.dat
