Crystal structure of the relaxase domain of RelpLS20, prototype of MobL family of relaxases

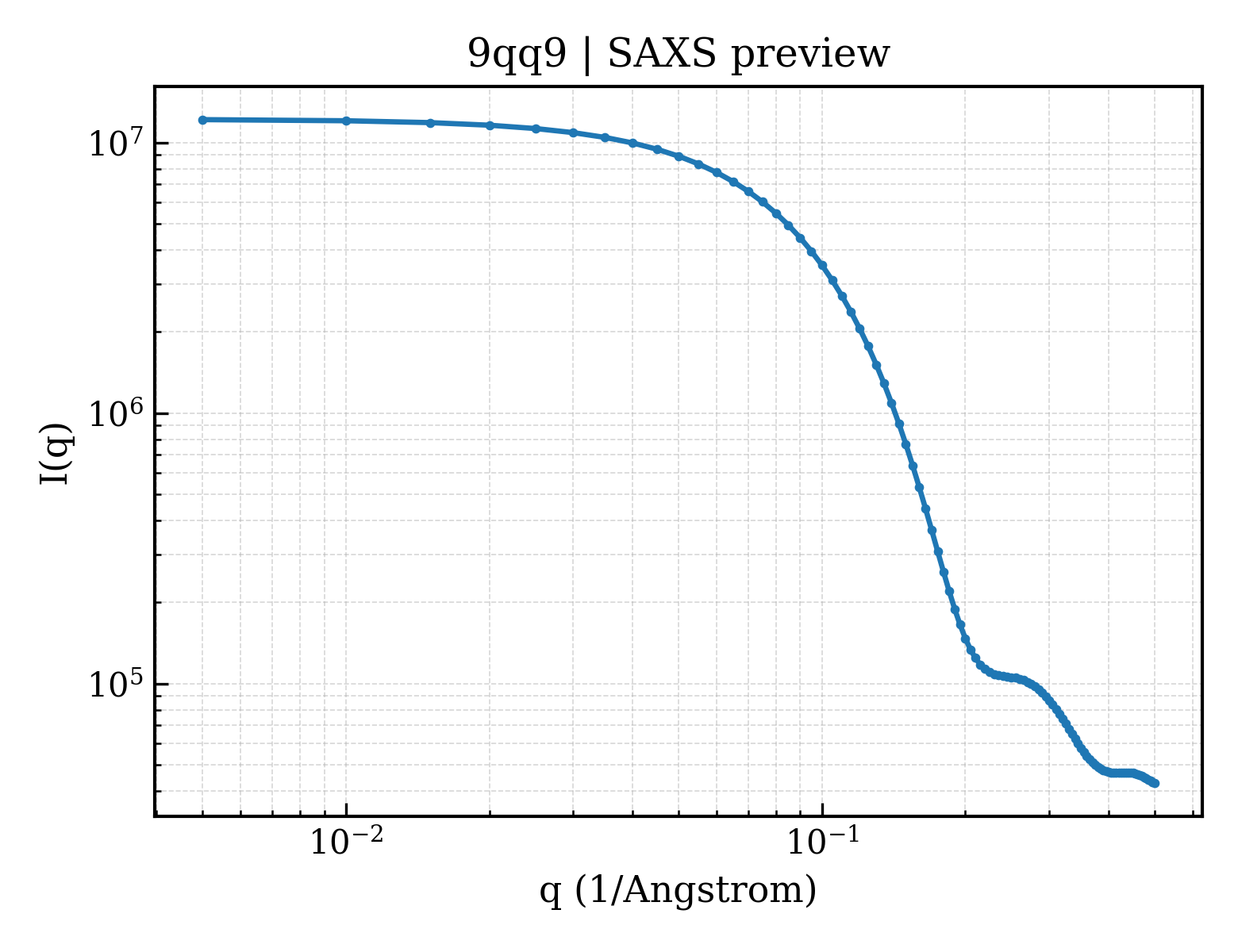

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9qq9 |
| deposition_date | 2025-03-31 |
| last_revision | 2026-04-15 |
| title | Crystal structure of the relaxase domain of RelpLS20, prototype of MobL family of relaxases |
| keywords | Bacterial Conjugation, DNA binding, Antibiotic resistance, Firmicutes, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.42 Å |
| rg_electron | 18.41 Å |
| i0 | 12181900.00 |
| molecular_weight | 25364.0 kDa |
| excluded_volume | 31567 ų |
| envelope_volume | 38112 ų |
| shell_volume | 17726 ų |
| envelope_diameter | 78.0 Å |
| shell_rg | 24.68 Å |
| envelope_rg | 19.30 Å |
| shape_rg | 18.39 Å |
| total_rg | 19.47 Å |
| total_atoms | 1783 |
| n_residues | 219 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 79.6 Å |
| rg_real | 19.48 Å |
| rg_real_error | 0.66 Å |
| i0_real | 1.2180e+07 |
| i0_real_error | 1.7120e+05 |
| rg_reciprocal | 19.47 Å |
| i0_reciprocal | 12180000.0000 |
| total_estimate | 0.7455 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 23.6 Å |
| skewness | 0.559 |
| kurtosis | 0.507 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3048000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.359; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.610; Smooth: 1.000 |
