Crystal Structure of Mycobacterium smegmatis thioredoxin reductase in complex with Z1280094148

Method: X-RAY DIFFRACTION Dmax: 69.2 Å Quality: GOOD

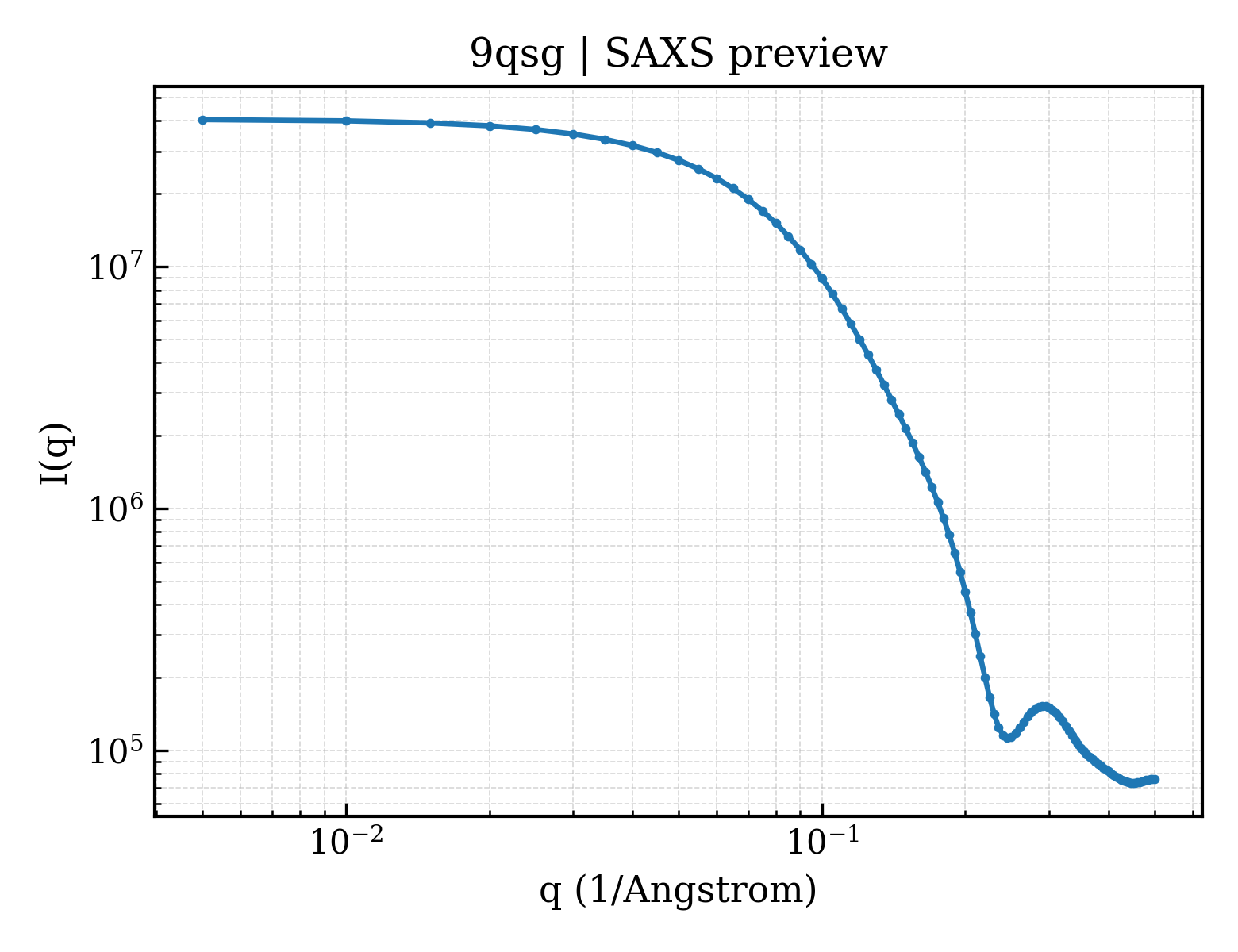

SAXS Profile

SAXS profile for 9qsg

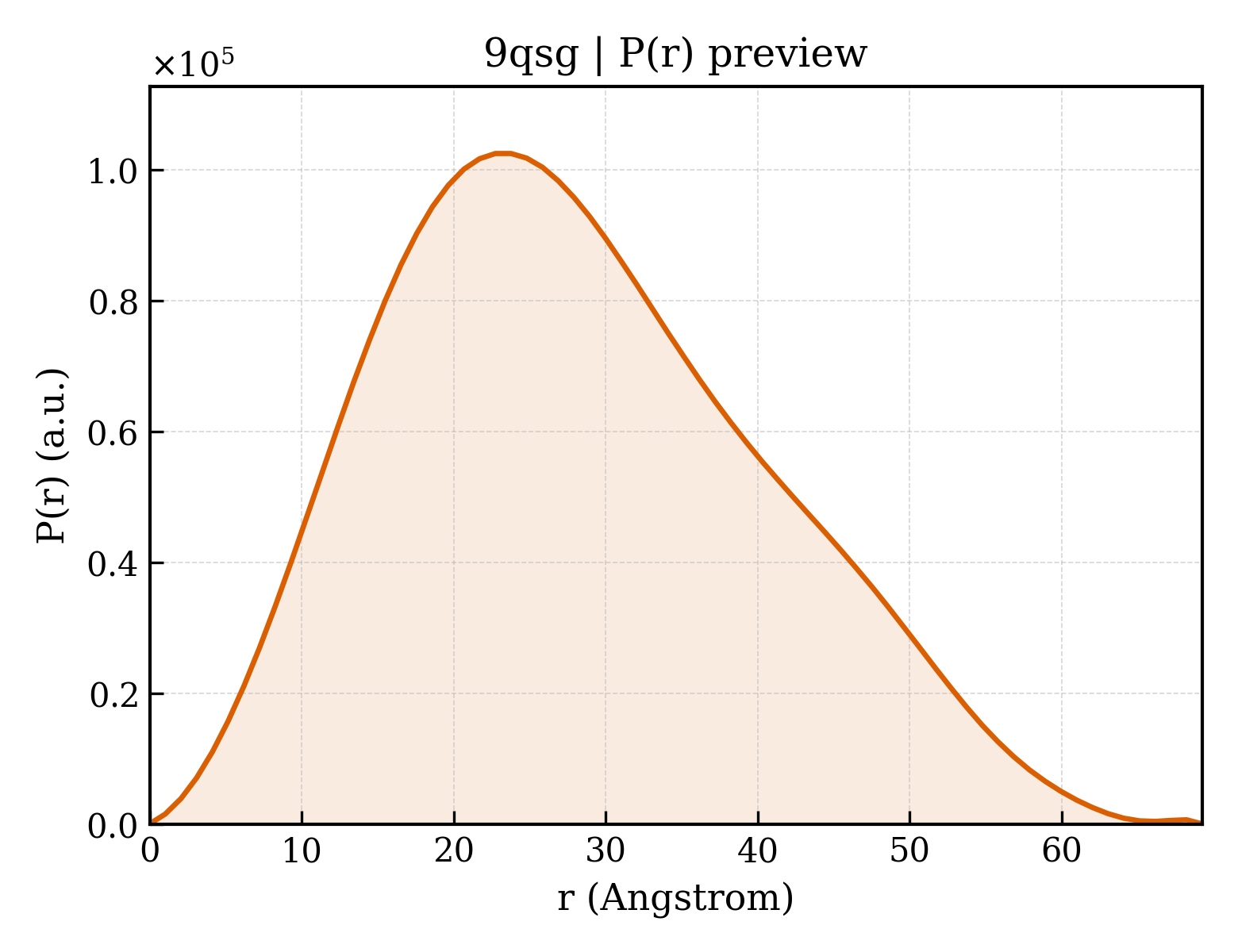

P(r) Distribution

P(r) distribution for 9qsg

1. Structure Basics

entry_id9qsg
deposition_date2025-04-04
last_revision2026-04-15
titleCrystal Structure of Mycobacterium smegmatis thioredoxin reductase in complex with Z1280094148
keywordsTrxR, Oxidoreductase, Fragment; OXIDOREDUCTASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier21.66
rg_electron21.08
i040662700.00
molecular_weight32007.0 kDa
excluded_volume30397 ų
envelope_volume51178 ų
shell_volume20650 ų
envelope_diameter71.7
shell_rg27.23
envelope_rg21.22
shape_rg21.11
total_rg21.62
total_atoms2412
n_residues305
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax69.2
rg_real21.68
rg_real_error0.45
i0_real4.0660e+07
i0_real_error5.2640e+05
rg_reciprocal21.67
i0_reciprocal40660000.0000
total_estimate0.8956
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary68.2
skewness0.359
kurtosis-0.459
angular_range— – 0.3650 −1
current_alpha0.0000
highest_alpha9394000.0000
n_real_points68
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.982

4. Crystallography & Experiment

5. Entities & Polymer Info (8)

6. Citations (1)

7. Files & Curves (10)
