9qw8

FKBP12 in complex with bifunctional ligand 1ad and the first bromodomain of BRD4

Method: X-RAY DIFFRACTION Dmax: 109.5 Å Quality: GOOD

SAXS Profile

SAXS profile for 9qw8

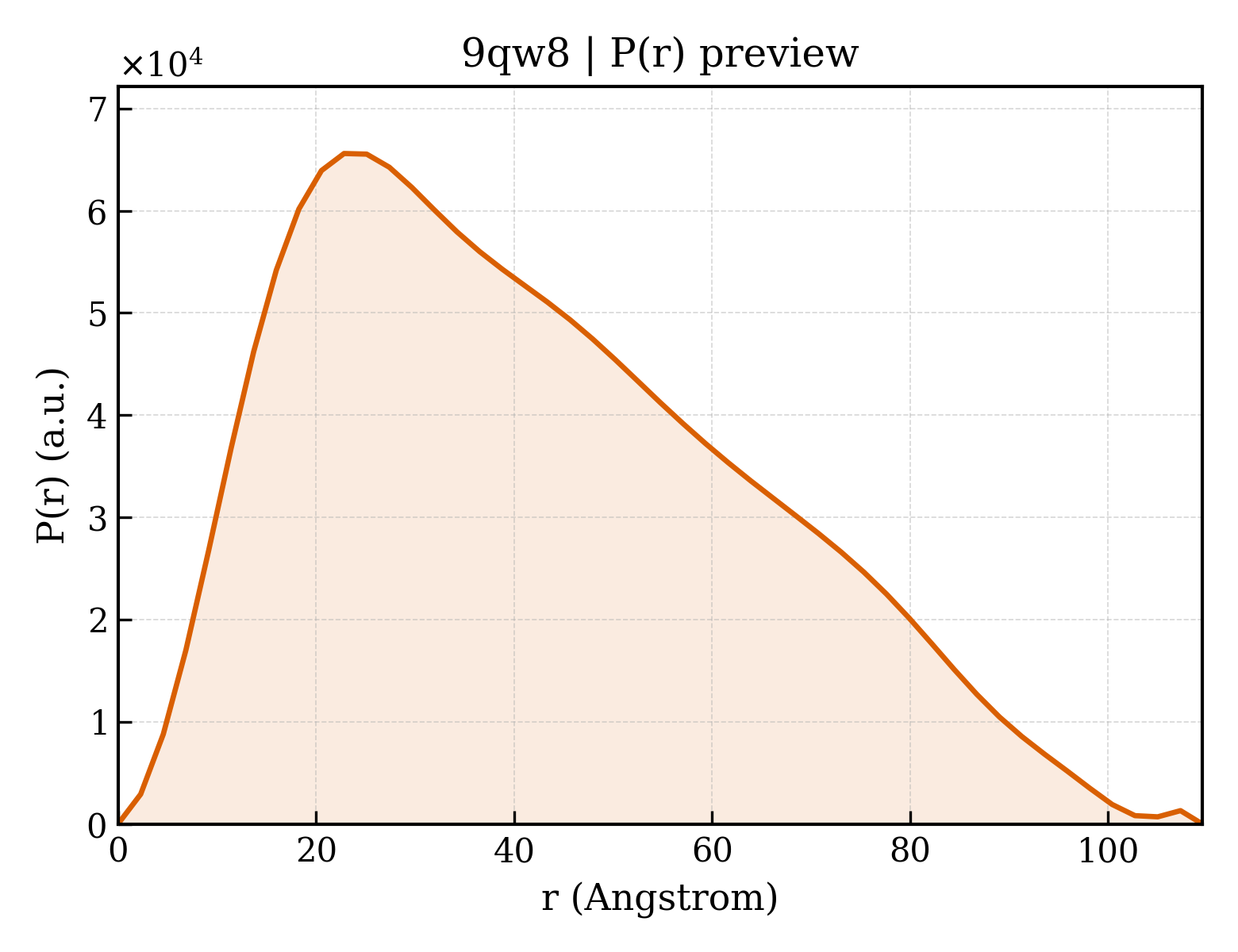

P(r) Distribution

P(r) distribution for 9qw8

1. Structure Basics

entry_id9qw8
deposition_date2025-04-14
last_revision2026-04-29
titleFKBP12 in complex with bifunctional ligand 1ad and the first bromodomain of BRD4
keywordsComplex, Inhibitor, Bifunctional, ISOMERASE; ISOMERASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier32.98
rg_electron33.23
i044379500.00
molecular_weight53859.0 kDa
excluded_volume67780 ų
envelope_volume88837 ų
shell_volume24690 ų
envelope_diameter115.7
shell_rg35.83
envelope_rg33.19
shape_rg33.19
total_rg33.61
total_atoms7473
n_residues466
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax109.5
rg_real33.45
rg_real_error1.18
i0_real4.4380e+07
i0_real_error8.0340e+05
rg_reciprocal33.26
i0_reciprocal44370000.0000
total_estimate0.7859
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary22.8
skewness0.478
kurtosis-0.585
angular_range— – 0.2400 −1
current_alpha0.0000
highest_alpha7920000.0000
n_real_points49
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.722; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.467; Smooth: 0.580

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
