SAXSdb — 9qwp

▼

1. Structure Basics

entry_id	9qwp
deposition_date	2025-04-15
title	Structure of the human RalGAP2 complex
keywords	Complex, GTPase activating protein, RAL, Asn thumb GAP, RalGAP, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	— Å
rg_electron	112.50 Å
i0	1898240000.00
molecular_weight	383540.0 kDa
excluded_volume	486260 Å³
envelope_volume	884510 Å³
shell_volume	82239 Å³
envelope_diameter	402.9 Å
shell_rg	62.33 Å
envelope_rg	114.80 Å
shape_rg	112.50 Å
total_rg	111.70 Å
total_atoms	26997
n_residues	3394
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	287.2 Å
rg_real	96.96 Å
rg_real_error	1.74 Å
i0_real	1.8000e+09
i0_real_error	4.0200e+07
rg_reciprocal	89.12 Å
i0_reciprocal	1796000000.0000
total_estimate	0.7742
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	41.0 Å
skewness	0.379
kurtosis	-0.933
angular_range	— – 0.0700 Å⁻¹
current_alpha	0.5854
highest_alpha	29760000.0000
n_real_points	15
gnom_version	4.1.3
quality_criteria	AN1: 0.020; Oscil: 0.522; Stabil: 0.969; Sysdev: 1.000; Positv: 1.000; Valcen: 0.628; Smooth: 0.001

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Ral GTPase-activating protein subunit alpha-2
formula_weight	214046.5 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,D
atom_count	26997

MDYKDHDGDYKDHDIDYKDDDDKLAAAFSRRSHGDVKKSTQKVLDPKKDVLTRLKHLRALLDNVDANDLKQFFETNYSQIYFIFYENFIALENSLKLKGNNKSQREELDSILFLFEKILQFLPERIFFRWHYQSIGSTLKKLLHTGNSIKIRCEGIRLFLLWLQALQTNCAEEQVLIFACLVPGFPAVMSSRGPCTLETLINPSPSVADVKIYPEEITPLLPAISGEKIAEDQTCFFLQILLKYMVIQAASLEWKNKENQDTGFKFLFTLFRKYYLPHLFPSFTKLTNIYKPVLDIPHLRPKPVYITTTRDNENIYSTKIPYMAARVVFIKWIVTFFLEKKYLTATQNTKNGVDVLPKIIQTVGGGAVQERAPELDGGGPTEQDKSHSNSSTLSDRRLSNSSLCSIEEEHRMVYEMVQRILLSTRGYVNFVNEVFHQAFLLPSCEIAVTRKVVQVYRKWILQDKPVFMEEPDRKDVAQEDAEKLGFSETDSKEASSESSGHKRSSSWGRTYSFTSAMSRGCVTEEENTNVKAGVQALLQVFLTNSANIFLLEPCAEVPVLLKEQVDACKAVLIIFRRMIMELTMNKKTWEQMLQILLRITEAVMQKPKDKQIKDLFAQSLAGLLFRTLMVAWIRANLCVYISRELWDDFLGVLSSLTEWEELINEWANIMDSLTAVLARTVYGVEMTNLPLDKLSEQKEKKQRGKGCVLDPQKGTTVGRSFSLSWRSHPDVTEPMRFRSATTSGAPGVEKARNIVRQKATEVEECQQSENAPAAGSGHLTVGQQQQVLRSSSTSDIPEPLCSDSSQGQKAENTQNSSSSEPQPIQENKGHVKREHEGITILVRRSSSPAELDLKDDLQQTQGKCRERQKSESTNSDTTLGCTNEAELSMGPWQTCEEDPELNTPTDVVADADARHWLQLSPTDASNLTDSSECLTDDCSIIAGGSLTGWHPDSAAVLWRRVLGILGDVNNIQSPKIHARVFCYLYELWYKLAKIRDNLAISLDNQSSPSPPVLIPPLRMFASWLFKAATLPNEYKEGKLQAYRLICAMMTRRQDVLPNSDFLVHFYLVMHLGLTSEDQDILNTIIRHCPPRFFSLGFPGFSMLVGDFITAAARVLSTDILTAPRSEAVTVLGSLVCFPNTYQEIPLLQSVPEVNEAITGTEDVKHYLINILLKNATEEPNEYARCIAVCSLGVWICEELAQCTSHPQVKEAINVIGVTLKFPNKIVAQVACDVLQLLVSYWEKLQMFETSLPRKMAEILVATVAFLLPSAEYSSVETDKKFIVSLLLCLLDWCMALPVSVLLHPVSTAVLEEQHSARAPLLDYIYRVLHCCVCGSSTYTQQSHYILTLADLSSTDYDPFLPLANVKSSEPVQYHSSAELGNLLTVEEEKKRRSLELIPLTARMVMAHLVNHLGHYPLSGGPAILHSLVSENHDNAHVEGSELSFEVFRSPNLQLFVFNDSTLISYLQTPTEGPVGGSPVGSLSDVRVIVRDISGKYSWDGKVLYGPLEGCLAPNGRNPSFLISSWHRDTFGPQKDSSQVEEGDDVLDKLLENIGHTSPECLLPSQLNLNEPSLTPCGMNYDQEKEIIEVILRQNAQEDEYIQSHNFDSAMKVTSQGQPSPVEPRGPFYFCRLLLDDLGMNSWDRRKNFHLLKKNSKLLRELKNLDSRQCRETHKIAVFYIAEGQEDKCSILSNERGSQAYEDFVAGLGWEVDLSTHCGFMGGLQRNGSTGQTAPYYATSTVEVIFHVSTRMPSDSDDSLTKKLRHLGNDEVHIVWSEHSRDYRRGIIPTAFGDVSIIIYPMKNHMFFIAITKKPEVPFFGPLFDGAIVSGKLLPSLVCATCINASRAVKCLIPLYQSFYEERALYLEAIIQNHREVMTFEDFAAQVFSPSPSYSLSGTD

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Ral GTPase-activating protein subunit beta
formula_weight	170796.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,C

MYPYDVPDYAGSYPYDVPDYAGSYPYDVPDYAGSMYSEWRSLHLVIQNDQGHTSVLHSYPESVGREVANAVVRPLGQVLGTPSVAGSENLLKTDKEVKWTMEVICYGLTLPLDGETVKYCVDVYTDWIMALVLPKDSIPLPVIKEPNQYVQTILKHLQNLFVPRQEQGSSQIRLCLQVLRAIQKLARESSLMARETWEVLLLFLLQINDILLAPPTVQGGIAENLAEKLIGVLFEVWLLACTRCFPTPPYWKTAKEMVANWRHHPAVVEQWSKVICALTSRLLRFTYGPSFPAFKVPDEDASLIPPEMDNECVAQTWFRFLHMLSNPVDLSNPAIISSTPKFQEQFLNVSGMPQELNQYPCLKHLPQIFFRAMRGISCLVDAFLGISRPRSDSAPPTPVNRLSMPQSAAVSTTPPHNRRHRAVTVNKATMKTSTVSTAHASKVQHQTSSTSPLSSPNQTSSEPRPLPAPRRPKVNSILNLFGSWLFDAAFVHCKLHNGINRDSSMTAITTQASMEFRRKGSQMSTDTMVSNPMFDASEFPDNYEAGRAEACGTLCRIFCSKKTGEEILPAYLSRFYMLLIQGLQINDYVCHPVLASVILNSPPLFCCDLKGIDVVVPYFISALETILPDRELSKFKSYVNPTELRRSSINILLSLLPLPHHFGTVKSEVVLEGKFSNDDSSSYDKPITFLSLKLRLVNILIGALQTETDPNNTQMILGAMLNIVQDSALLEAIGCQMEMGGGENNLKSHSRTNSGISSASGGSTEPTTPDSERPAQALLRDYALNTDSAAGLLIRSIHLVTQRLNSQWRQDMSISLAALELLSGLAKVKVMVDSGDRKRAISSVCTYIVYQCSRPAPLHSRDLHSMIVAAFQCLCVWLTEHPDMLDEKDCLKEVLEIVELGISGSKSKNNEQEVKYKGDKEPNPASMRVKDAAEATLTCIMQLLGAFPSPSGPASPCSLVNETTLIKYSRLPTINKHSFRYFVLDNSVILAMLEQPLGNEQNDFFPSVTVLVRGMSGRLAWAQQLCLLPRGAKANQKLFVPEPRPVPKNDVGFKYSVKHRPFPEEVDKIPFVKADLSIPDLHEIVTEELEERHEKLRSGMAQQIAYEIHLEQQSEEELQKRSFPDPVTDCKPPPPAQEFQTARLFLSHFGFLSLEALKEPANSRLPPHLIALDSTIPGFFDDIGYLDLLPCRPFDTVFIFYMKPGQKTNQEILKNVESSRTVQPHFLEFLLSLGWSVDVGRHPGWTGHVSTSWSINCCDDGEGSQQEVISSEDIGASIFNGQKKVLYYADALTEIAFVVPSPVESLTDSLESNISDQDSDSNMDLMPGILKQPSLTLELFPNHTDNLNSSQRLSPSSRMRKLPQGRPVPPLGPETRVSVVWVERYDDIENFPLSELMTEISTGVETTANSSTSLRSTTLEKEVPVIFIHPLNTGLFRIKIQGATGKFNMVIPLVDGMIVSRRALGFLVRQTVINICRRKRLESDSYSPPHVRRKQKITDIVNKYRNKQLEPEFYTSLFQEVGLKNCSS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

▶

6. Citations (2)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.80 Å
resolution_method	—
num_particles	420975

fit	/app/data/saxs_computation/qw/9qwp/9qwp.fit
pddf	/app/data/pr_computation/qw/9qwp/9qwp.pr.out
profile	/app/data/saxs_computation/qw/9qwp/9qwp.dat

Structure of the human RalGAP2 complex

SAXS Profile

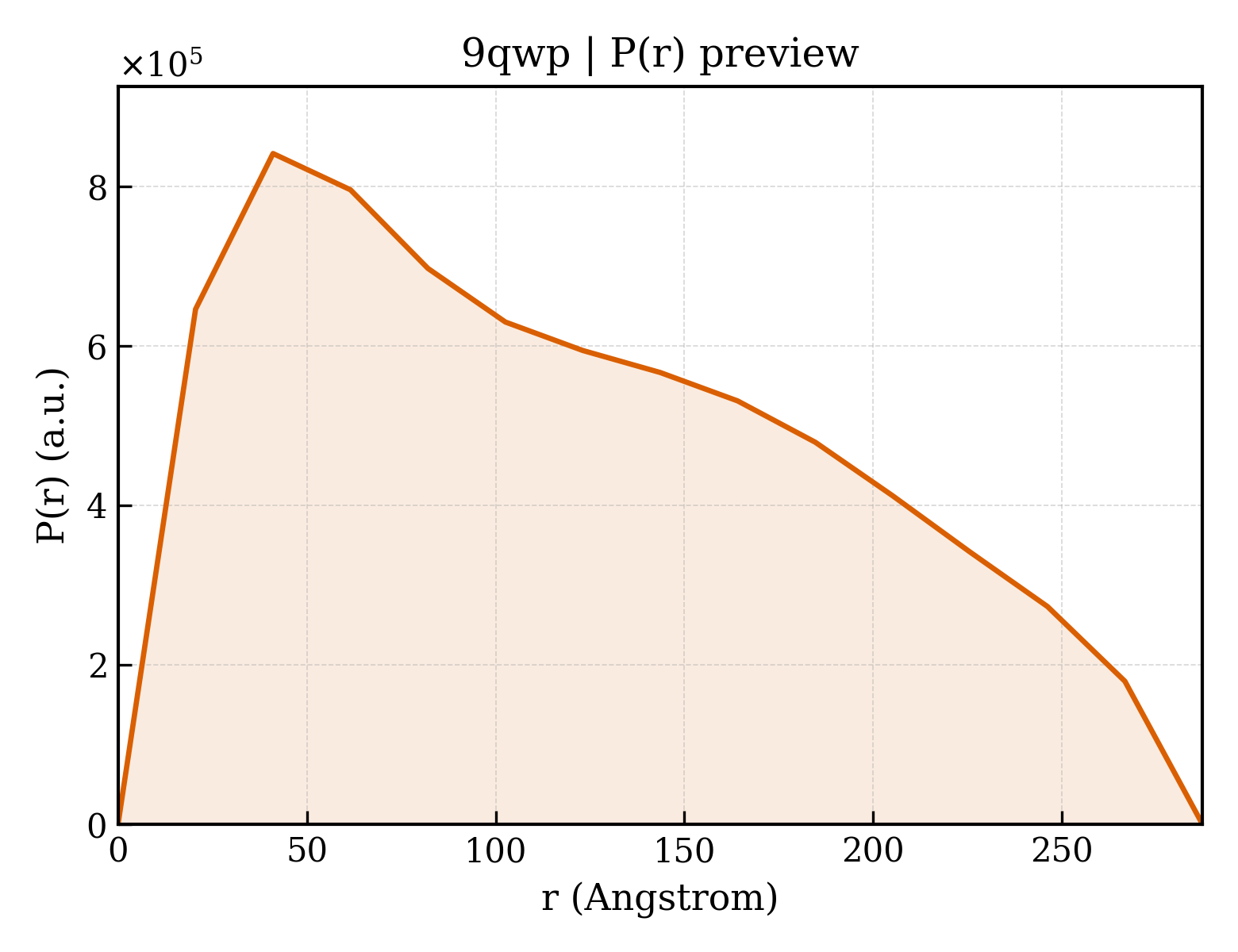

P(r) Distribution
