9r03

Complex I from Ovis aries in presence of D1 inhibitor, Open state

Method: ELECTRON MICROSCOPY Dmax: 220.0 Å Quality: GOOD

SAXS Profile

SAXS profile for 9r03

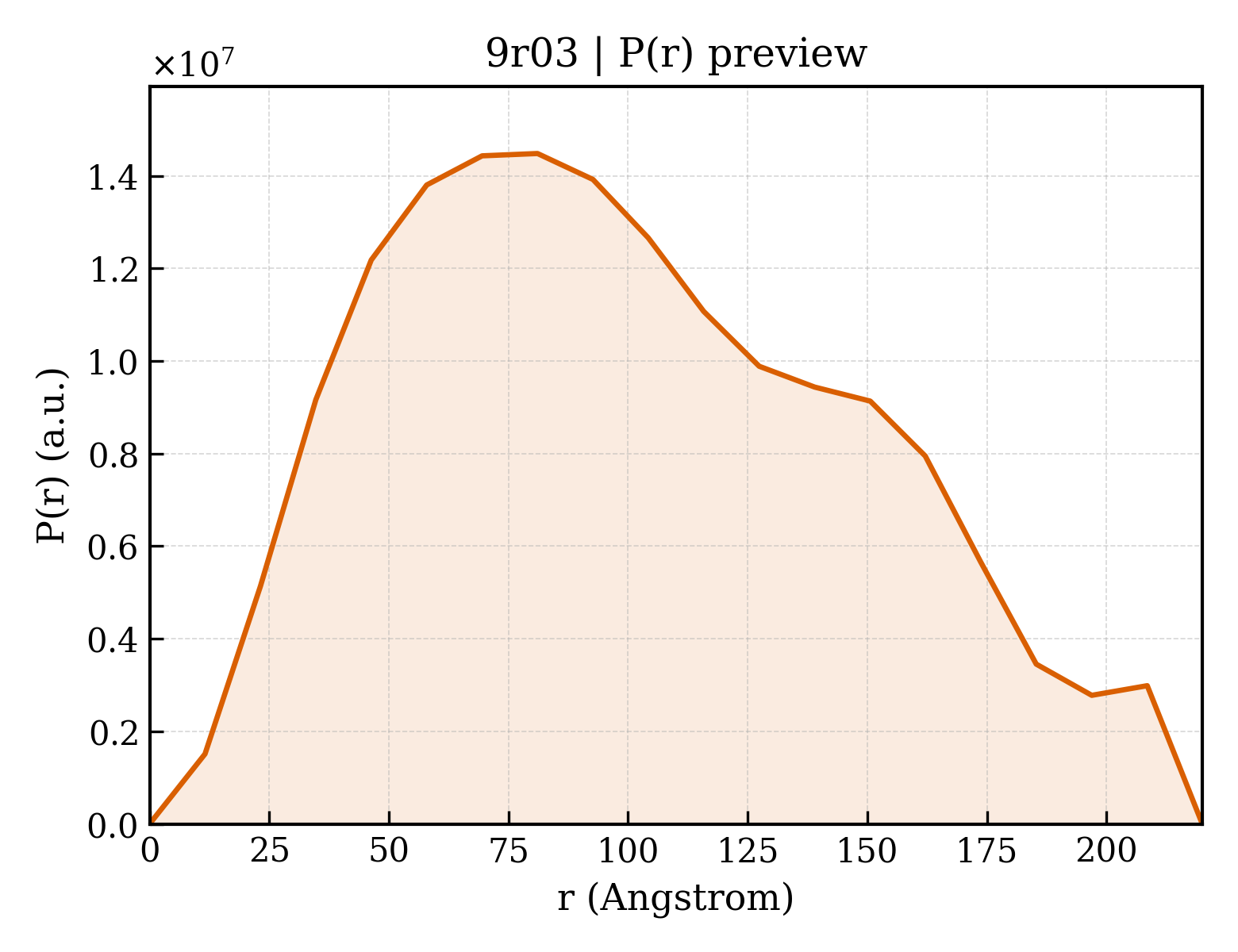

P(r) Distribution

P(r) distribution for 9r03

1. Structure Basics

entry_id9r03
deposition_date2025-04-24
titleComplex I from Ovis aries in presence of D1 inhibitor, Open state
keywordsComplex I, inhibitor, respiration, proton pump, NADH:ubiquinone oxidoreductase, membrane protein, mitochondria, PROTON TRANSPORT; PROTON TRANSPORT
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier81.60
rg_electron81.96
i023919500000.00
molecular_weight881710.0 kDa
excluded_volume859310 ų
envelope_volume1726000 ų
shell_volume179820 ų
envelope_diameter301.6
shell_rg75.21
envelope_rg81.09
shape_rg81.94
total_rg81.94
total_atoms66655
n_residues8139
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax220.0
rg_real77.99
rg_real_error1.09
i0_real2.3230e+10
i0_real_error4.6590e+08
rg_reciprocal79.27
i0_reciprocal23760000000.0000
total_estimate0.8861
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary81.1
skewness0.335
kurtosis-0.709
angular_range— – 0.0950 −1
current_alpha0.1166
highest_alpha601900000.0000
n_real_points20
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.961; Stabil: 0.982; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (58)

6. Citations (2)

7. Files & Curves (10)
