9r9r

[FeFe]-hydrogenase from Nitratidesulfovibrio vulgaris str. Hildenborough at pH 5.21

Method: X-RAY DIFFRACTION D_max: 70.0 Å Quality: GOOD

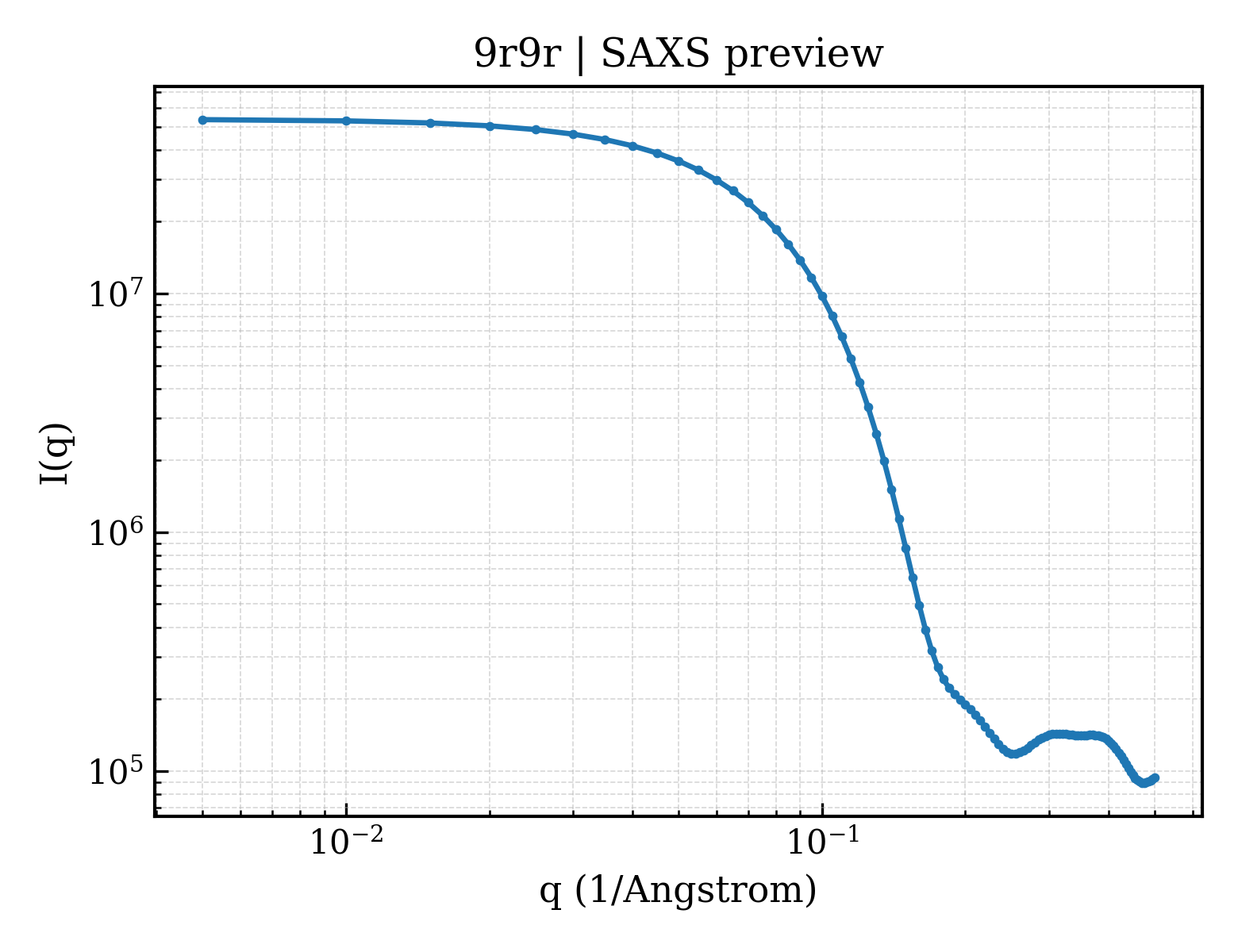

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9r9r
deposition_date	2025-05-20
last_revision	2026-06-03
title	[FeFe]-hydrogenase from Nitratidesulfovibrio vulgaris str. Hildenborough at pH 5.21
keywords	[FeFe] hydrogenase, holo hydrogenase, iron-sulfur cluster, metalloenzyme, hydrogen production, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	21.97 Å
rg_electron	21.14 Å
i0	53671400.00
molecular_weight	55565.0 kDa
excluded_volume	68691 Å³
envelope_volume	76267 Å³
shell_volume	28432 Å³
envelope_diameter	75.2 Å
shell_rg	29.47 Å
envelope_rg	21.70 Å
shape_rg	21.20 Å
total_rg	21.84 Å
total_atoms	7602
n_residues	488
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	70.0 Å
rg_real	21.82 Å
rg_real_error	0.37 Å
i0_real	5.3670e+07
i0_real_error	6.8470e+05
rg_reciprocal	21.84 Å
i0_reciprocal	53670000.0000
total_estimate	0.8099
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	27.1 Å
skewness	0.186
kurtosis	-0.415
angular_range	— – 0.3600 Å⁻¹
current_alpha	0.0000
highest_alpha	17370000.0000
n_real_points	68
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.845; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Periplasmic [Fe] hydrogenase large subunit
formula_weight	44397.1 kDa
ec_number	1.12.7.2
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	7818

MSRTVMERIEYEMHTPDPKADPDKLHFVQIDEAKCIGCDTCSQYCPTAAIFGEMGEPHSIPHIEACINCGQCLTHCPENAIYEAQSWVPEVEKKLKDGKVKCIAMPAPAVRYALGDAFGMPVGSVTTGKMLAALQKLGFAHCWDTEFTADVTIWEEGSEFVERLTKKSDMPLPQFTSCCPGWQKYAETYYPELLPHFSTCKSPIGMNGALAKTYGAERMKYDPKQVYTVSIMPCIAKKYEGLRPELKSSGMRDIDATLTTRELAYMIKKAGIDFAKLPDGKRDSLMGESTGGATIFGVTGGVMEAALRFAYEAVTGKKPDSWDFKAVRGLDGIKEATVNVGGTDVKVAVVHGAKRFKQVCDDVKAGKSPYHFIEYMACPGGCVCGGGQPVMPGVLEAWSHPQFEK

Source

organism	Nitratidesulfovibrio vulgaris str. Hildenborough
ncbi_taxonomy_id	882
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	Periplasmic [Fe] hydrogenase small subunit
formula_weight	10082.4 kDa
ec_number	1.12.7.2
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

VKQIKDYMLDRINGVYGADAKFPVRASQDNTQVKALYKSYLEKPLGHKSHDLLHTHWFDKSKGVKELTTAGKLPNPRASEFEGPYPYE

Source

organism	Nitratidesulfovibrio vulgaris str. Hildenborough
ncbi_taxonomy_id	882
host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

description	dicarbonyl[bis(cyanide-kappaC)]-mu-(iminodimethanethiolatato-1kappaS:2kappaS)-mu-(oxomethylidene)diiron(2+)
formula_weight	355.0 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	IRON/SULFUR CLUSTER
formula_weight	351.6 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
formula_weight	238.3 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	TETRAETHYLENE GLYCOL
formula_weight	194.2 kDa
src_method	syn
entity_count	1

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	141

▶

6. Citations (1)

▶

length_a	49.518 Å
length_b	84.793 Å
length_c	88.257 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.580 Å
resolution_low	43.222 Å
r_factor	—
r_work	0.1761
r_free	0.2021
