9raw
The L1 amyloid-beta(1-40)fibril in the presence of anle138b (post-treatment)

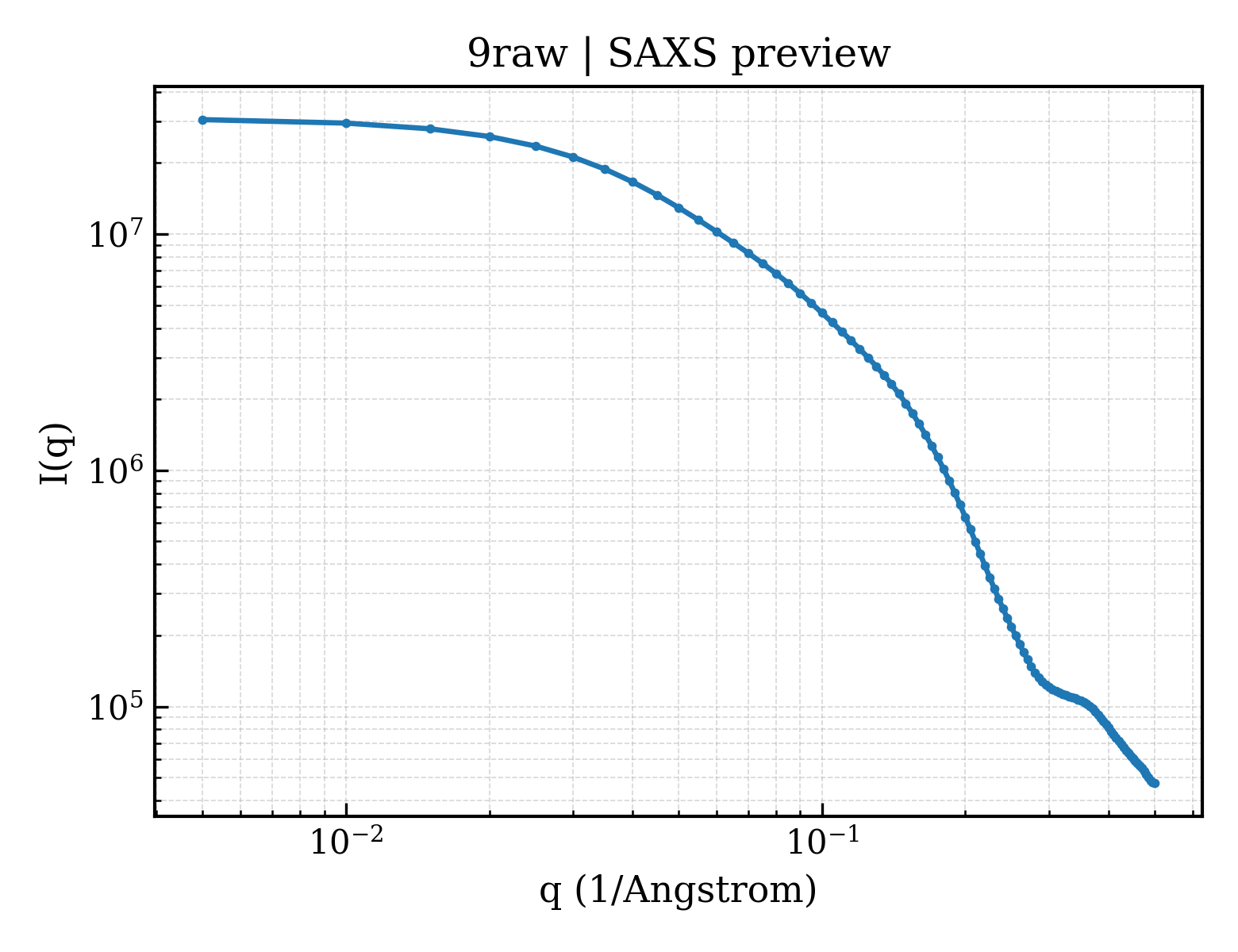

SAXS Profile

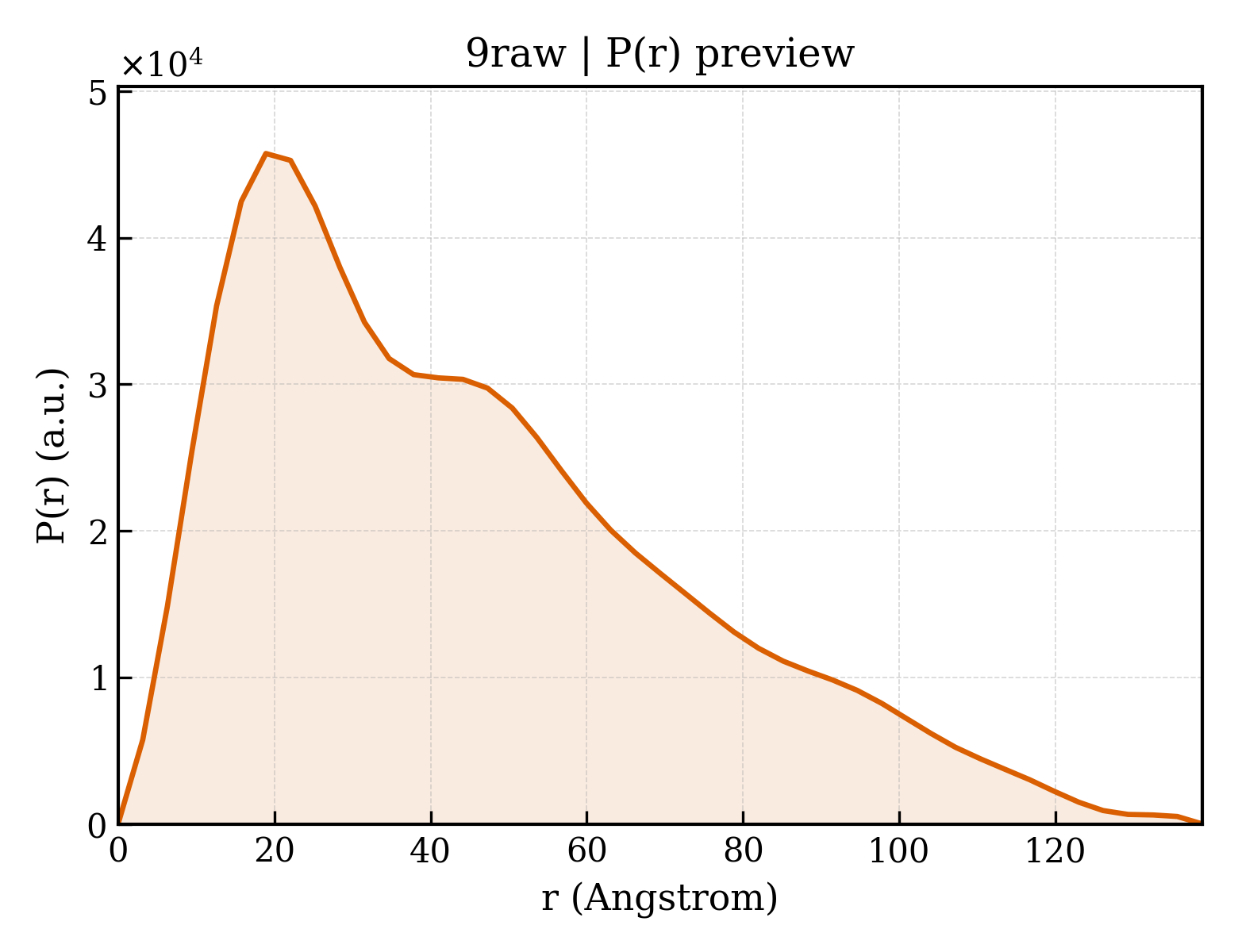

P(r) Distribution
1. Structure Basics
| entry_id | 9raw |
| deposition_date | 2025-05-21 |
| last_revision | 2025-10-15 |
| title | The L1 amyloid-beta(1-40)fibril in the presence of anle138b (post-treatment) |
| keywords | amyloid-beta, fibril, anle138b, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.91 Å |
| rg_electron | 35.63 Å |
| i0 | 30866100.00 |
| molecular_weight | 43268.0 kDa |
| excluded_volume | 53811 ų |
| envelope_volume | 66669 ų |
| shell_volume | 20009 ų |
| envelope_diameter | 142.3 Å |
| shell_rg | 32.50 Å |
| envelope_rg | 37.28 Å |
| shape_rg | 35.82 Å |
| total_rg | 34.77 Å |
| total_atoms | 3060 |
| n_residues | 400 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 138.8 Å |
| rg_real | 36.99 Å |
| rg_real_error | 2.18 Å |
| i0_real | 3.0870e+07 |
| i0_real_error | 5.7240e+05 |
| rg_reciprocal | 36.32 Å |
| i0_reciprocal | 30850000.0000 |
| total_estimate | 0.6258 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 18.9 Å |
| skewness | 0.759 |
| kurtosis | -0.123 |
| angular_range | — – 0.2200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1149000.0000 |
| n_real_points | 45 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.080; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.011; Smooth: 0.878 |
