9rgm
SsCl at pH 6.5 - closed

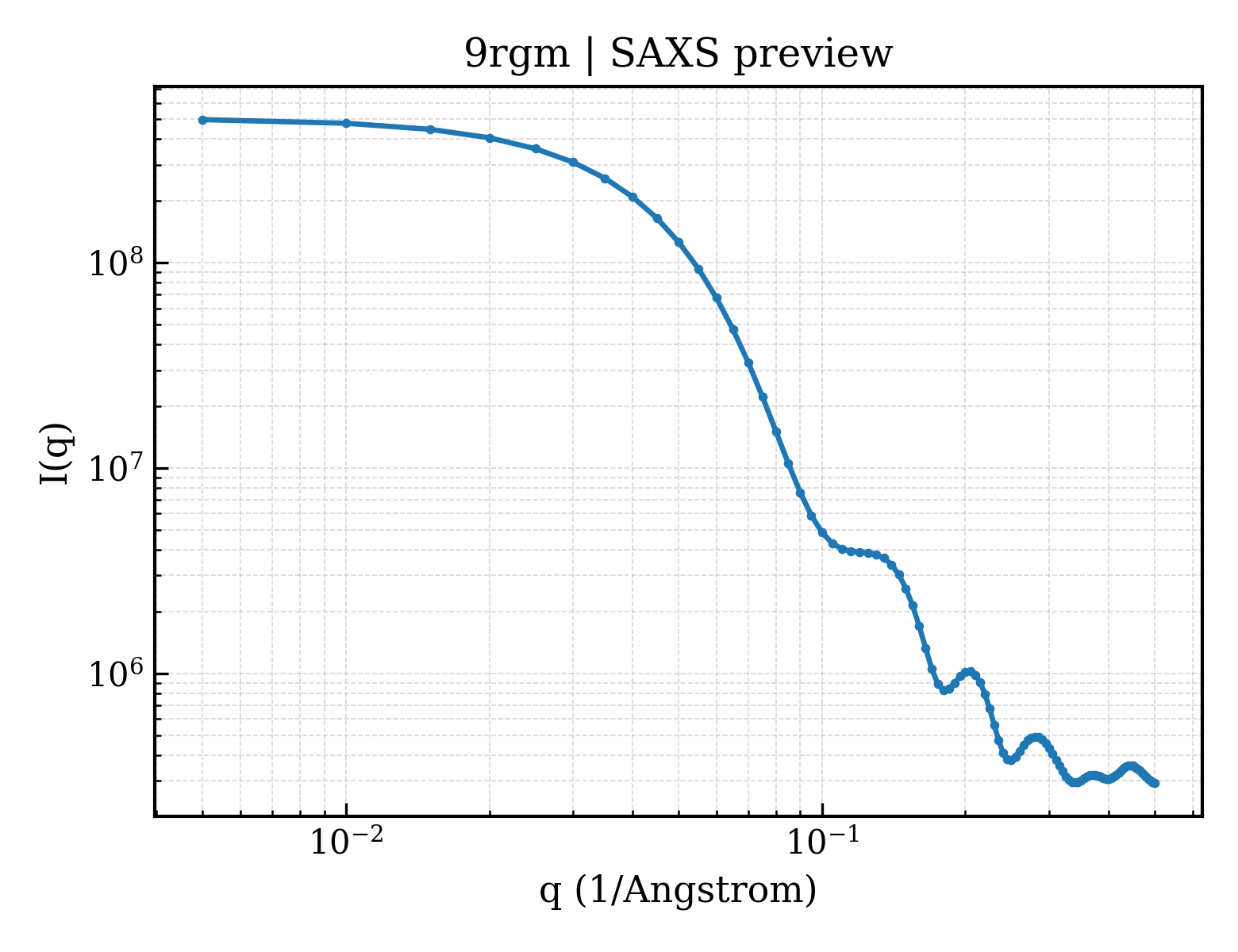

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9rgm |
| deposition_date | 2025-06-06 |
| title | SsCl at pH 6.5 - closed |
| keywords | Ion channel, pLGIC, pH-sensitive channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 40.31 Å |
| rg_electron | 39.94 Å |
| i0 | 503944000.00 |
| molecular_weight | 193050.0 kDa |
| excluded_volume | 245490 ų |
| envelope_volume | 353560 ų |
| shell_volume | 72738 ų |
| envelope_diameter | 129.3 Å |
| shell_rg | 46.56 Å |
| envelope_rg | 39.06 Å |
| shape_rg | 39.93 Å |
| total_rg | 40.40 Å |
| total_atoms | 13625 |
| n_residues | 1620 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 128.9 Å |
| rg_real | 40.21 Å |
| rg_real_error | 0.80 Å |
| i0_real | 5.0390e+08 |
| i0_real_error | 7.6990e+06 |
| rg_reciprocal | 40.31 Å |
| i0_reciprocal | 504000000.0000 |
| total_estimate | 0.8831 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 49.6 Å |
| skewness | 0.266 |
| kurtosis | -0.364 |
| angular_range | — – 0.1950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 166400000.0000 |
| n_real_points | 40 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.839 |
