SAXSdb — 9rjc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Signal peptidase complex catalytic subunit SEC11A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Signal peptidase complex subunit 1 × 1 （Q9Y6A9） Signal peptidase complex subunit 2 × 1 （Q15005） Signal peptidase complex subunit 3 × 1 （P61009）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SC11A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–177； UniProt 3–179

Signal peptidase complex subunit 1

Homo sapiens

UniProt Q9Y6A9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Signal peptidase complex catalytic subunit SEC11A × 1 （P67812） Signal peptidase complex subunit 2 × 1 （Q15005） Signal peptidase complex subunit 3 × 1 （P61009）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPCS1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–64； UniProt 83–146

Signal peptidase complex subunit 2

Homo sapiens

UniProt Q15005

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Signal peptidase complex catalytic subunit SEC11A × 1 （P67812） Signal peptidase complex subunit 1 × 1 （Q9Y6A9） Signal peptidase complex subunit 3 × 1 （P61009）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPCS2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 2–177； UniProt 45–220

Signal peptidase complex subunit 3

Homo sapiens

UniProt P61009

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Signal peptidase complex catalytic subunit SEC11A × 1 （P67812） Signal peptidase complex subunit 1 × 1 （Q9Y6A9） Signal peptidase complex subunit 2 × 1 （Q15005）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPCS3_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–174； UniProt 1–174

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rjc
Deposition date deposition_date	2025-06-12
Structure title title	Apo Structure of the Human Signal Peptidase
Keywords keywords	Signal Peptidase Complex, protein biogenesis, secretory pathway, membrane thinning, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rjc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

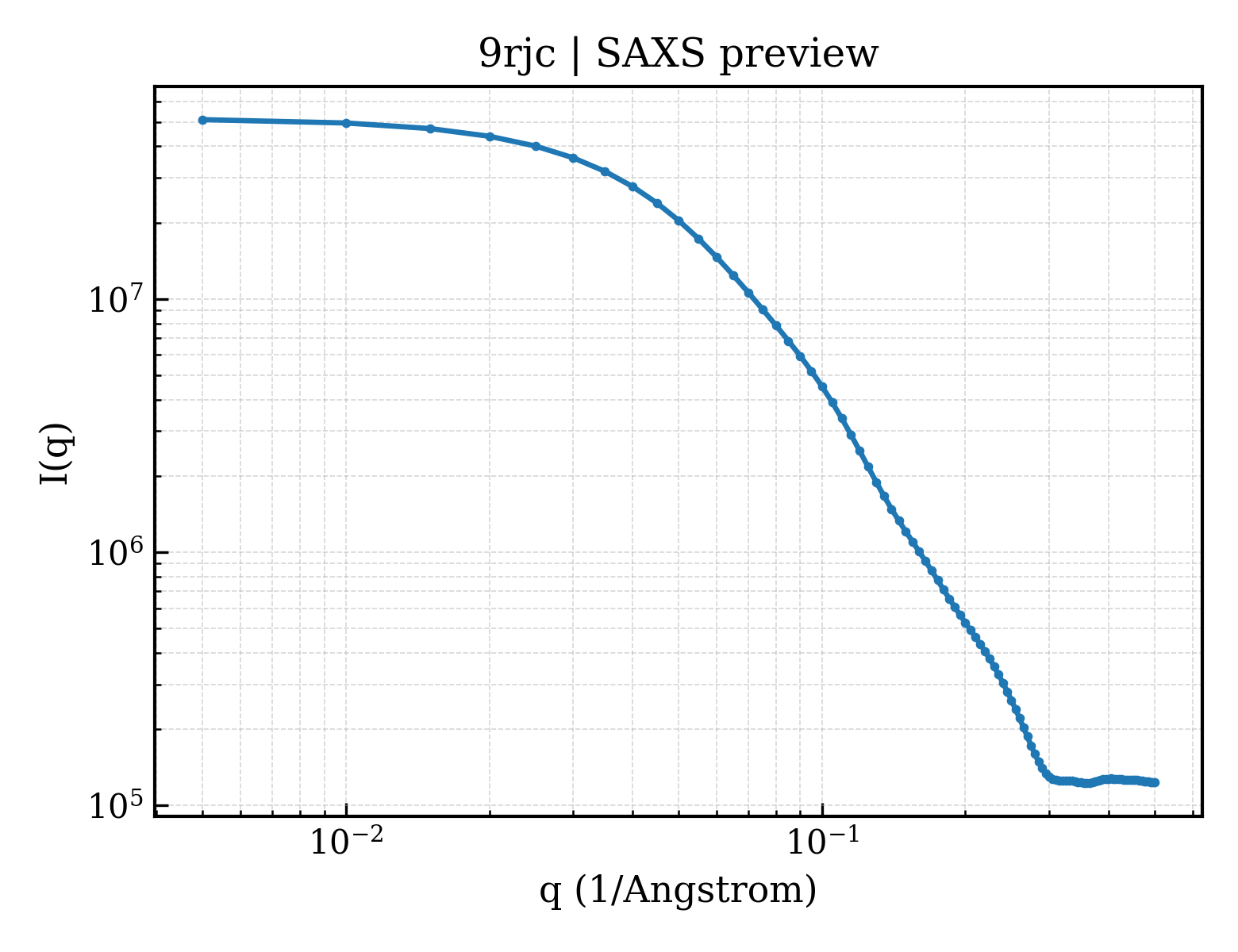

9rjc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

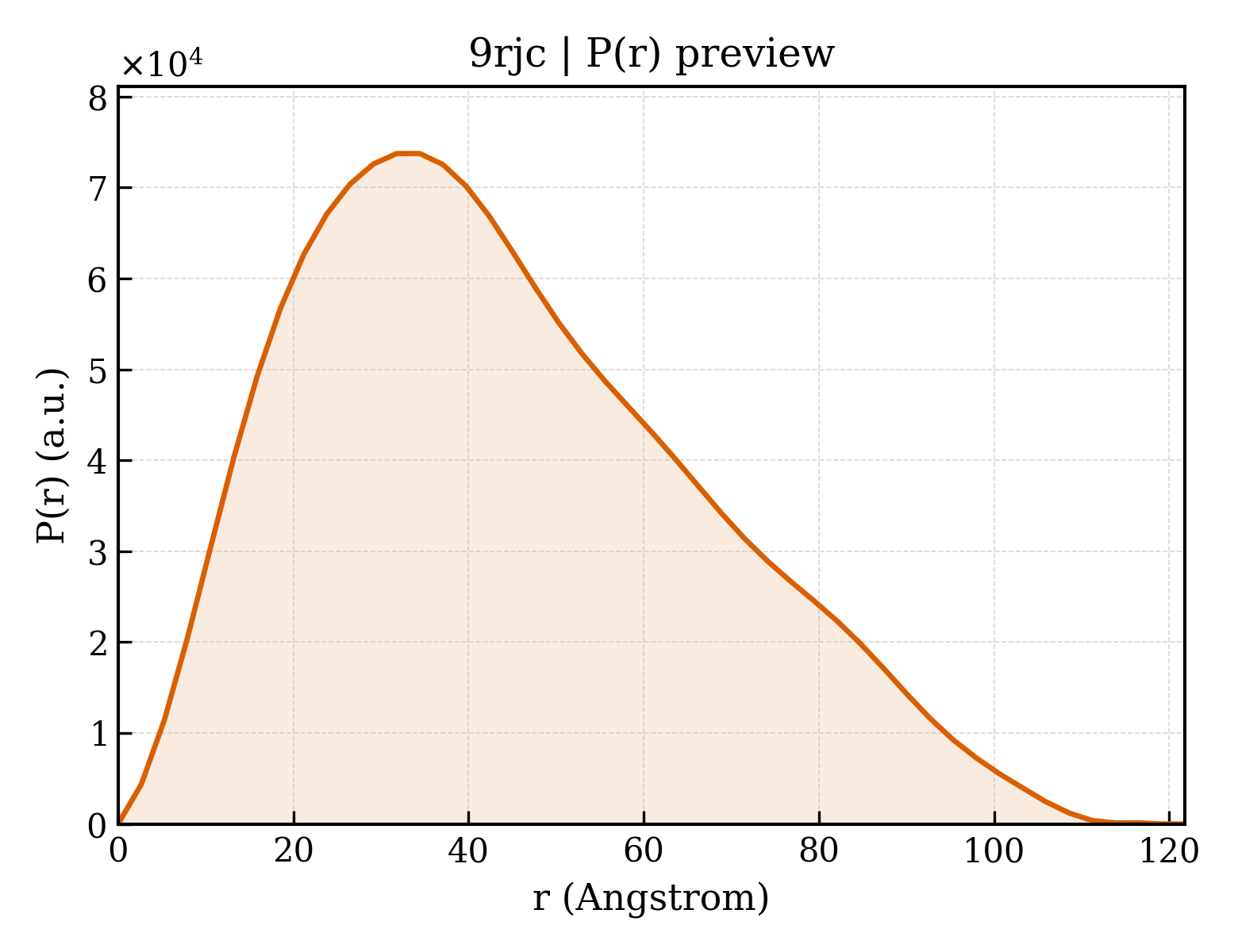

9rjc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.66 Å
Rg (electron density)	34.29 Å
Total Rg	34.58 Å
Atom count	4299
Residues	534
Excluded volume	77925 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rjc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Signal peptidase complex catalytic subunit SEC11A
Molecular weight formula_weight	20395.0 kDa
EC 编号 ec_number	3.4.21.89
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4299

SLDFLDDVRRMNKRQLYYQVLNFGMIVSSALMIWKGLMVITGSESPIVVVLSGAMEPAFHRGDLLFLTNRVEDPIRVGEIVVFRIEGREIPIVHRVLKIHEKQNGHIKFLTKGDNNAVDDRGLYKQGQHWLEKKDVVGRARGFVPYIGIVTILMNDYPKFKYAVLFLLGLFVLVHRE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Signal peptidase complex subunit 1
Molecular weight formula_weight	7386.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GQKLAEQMFQGIILFSAIVGFIYGYVAEQFGWTVYIVMAGFAFSCLLTLPPWPIYRRHPLKWLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Signal peptidase complex subunit 2
Molecular weight formula_weight	20338.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DPVKIDKWDGSAVKNSLDDSAKKVLLEKYKYVENFGLIDGRLTICTISCFFAIVALIWDYMHPFPESKPVLALCVISYFVMMGILTIYTSYKEKSIFLVAHRKDPTGMDPDDIWQLSSSLKRFDDKYTLKLTFISGRTKQQREAEFTKSIAKFFDHSGTLVMDAYEPEISRLHDSLA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Signal peptidase complex subunit 3
Molecular weight formula_weight	19611.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MNTVLSRANSLFAFSLSVMAALTFGCFITTAFKDRSVPVRLHVSRIMLKNVEDFTGPRERSDLGFITFDITADLENIFDWNVKQLFLYLSAEYSTKNNALNQVVLWDKIVLRGDNPKLLLKDMKTKYFFFDDGNGLKGNRNVTLTLSWNVVPNAGILPLVTGSGHVSVPFPDTY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	516615
