9rsc

;Ternary complex of an improved charged molecular glue degrader ZZ2-SO2H, BRD4(BD1) neosubstrate, and the CTLH E3 ligase receptor module YPEL5-WDR26 ;

Method: ELECTRON MICROSCOPY D_max: 133.8 Å Quality: GOOD

SAXS Profile

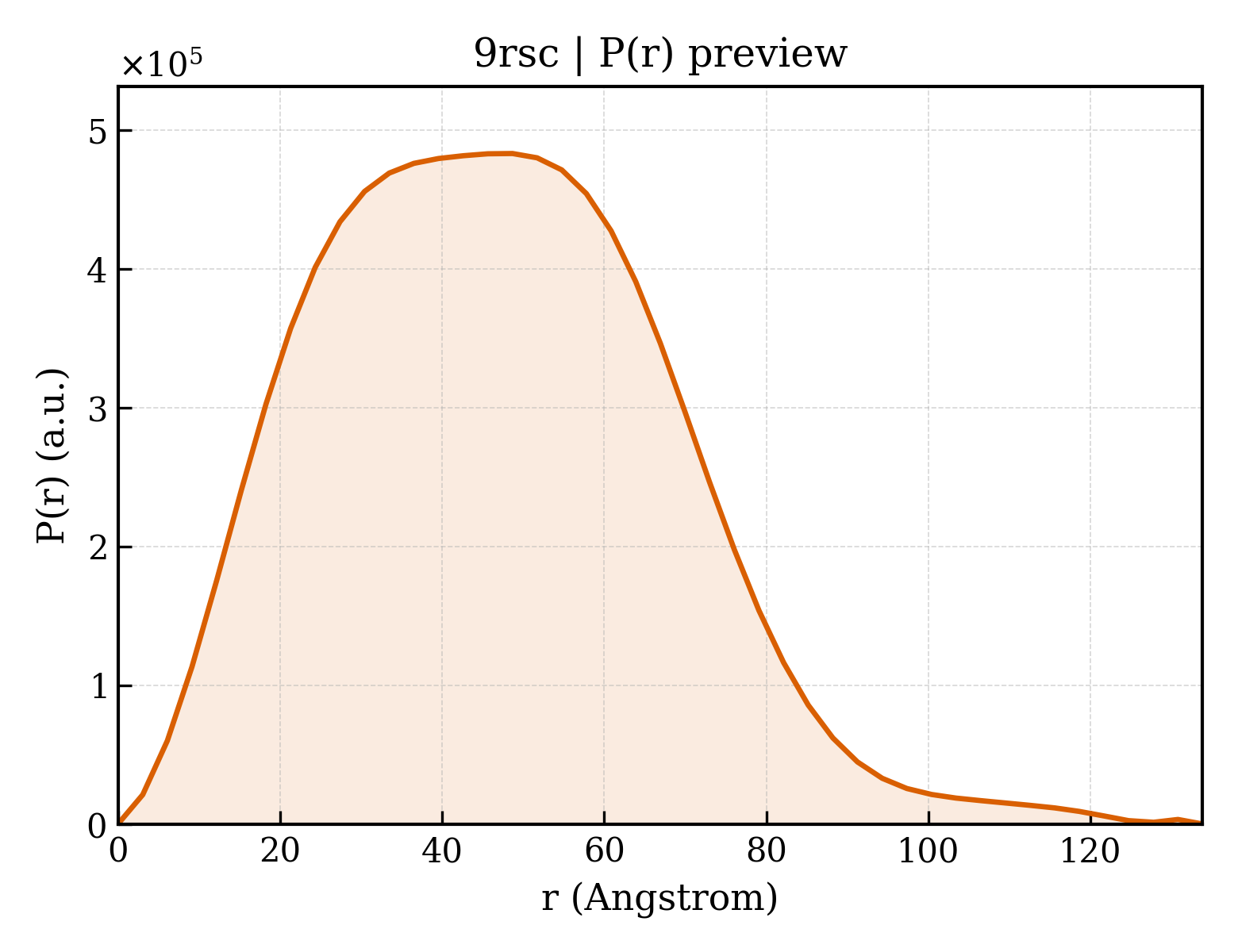

P(r) Distribution

▼

1. Structure Basics

entry_id	9rsc
deposition_date	2025-07-01
title	;Ternary complex of an improved charged molecular glue degrader ZZ2-SO2H, BRD4(BD1) neosubstrate, and the CTLH E3 ligase receptor module YPEL5-WDR26 ;
keywords	E3 ubiquitin ligase, CTLH, GID, YPEL5, Molecular Glue Degrader, Targeted Protein Degradation, LIGASE; LIGASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.92 Å
rg_electron	35.85 Å
i0	358730000.00
molecular_weight	100380.0 kDa
excluded_volume	96234 Å³
envelope_volume	183220 Å³
shell_volume	43962 Å³
envelope_diameter	144.4 Å
shell_rg	40.37 Å
envelope_rg	36.00 Å
shape_rg	35.84 Å
total_rg	36.10 Å
total_atoms	7571
n_residues	981
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	133.8 Å
rg_real	35.99 Å
rg_real_error	1.59 Å
i0_real	3.5870e+08
i0_real_error	7.2880e+06
rg_reciprocal	35.95 Å
i0_reciprocal	358700000.0000
total_estimate	0.8269
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	48.7 Å
skewness	0.403
kurtosis	0.018
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	42410000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.662; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.850; Smooth: 0.910

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	WD repeat-containing protein 26
formula_weight	70539.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	7,W
atom_count	7573

MQANGAGGGGGGGGGGGGGGGGGGGQGQTPELACLSAQNGESSPSSSSSAGDLAHANGLLPSAPSAASNNSNSLNVNNGVPGGAAAASSATVAAASATTAASSSLATPELGSSLKKKKRLSQSDEDVIRLIGQHLNGLGLNQTVDLLMQESGCRLEHPSATKFRNHVMEGDWDKAENDLNELKPLVHSPHAIVRMKFLLLQQKYLEYLEDGKVLEALQVLRCELTPLKYNTERIHVLSGYLMCSHAEDLRAKAEWEGKGTASRSKLLDKLQTYLPPSVMLPPRRLQTLLRQAVELQRDRCLYHNTKLDNNLDSVSLLIDHVCSRRQFPCYTQQILTEHCNEVWFCKFSNDGTKLATGSKDTTVIIWQVDPDTHLLKLLKTLEGHAYGVSYIAWSPDDNYLVACGPDDCSELWLWNVQTGELRTKMSQSHEDSLTSVAWNPDGKRFVTGGQRGQFYQCDLDGNLLDSWEGVRVQCLWCLSDGKTVLASDTHQRIRGYNFEDLTDRNIVQEDHPIMSFTISKNGRLALLNVATQGVHLWDLQDRVLVRKYQGVTQGFYTIHSCFGGHNEDFIASGSEDHKVYIWHKRSELPIAELTGHTRTVNCVSWNPQIPSMMASASDDGTVRIWGPAPFIDHQNIEEECSSMDS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Protein yippee-like 5
formula_weight	13860.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Y

MGRIFLDHIGGTRLFSCANCDTILTNRSELISTRFTGATGRAFLFNKVVNLQYSEVQDRVMLTGRHMVRDVSCKNCNSKLGWIYEFATEDSQRYKEGRVILERALVRESEGFEEHVPSDNS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 3 polymer

description	Bromodomain-containing protein 4
formula_weight	15226.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

GGSGSNPPPPETSNPNKPKRQTNQLQYLLRVVLKTLWKHQFAWPFQQPVDAVKLNLPDYYKIIKTPMDMGTIKKRLENNYYWNAQECIQDFNTMFTNCYIYNKPGDDIVLMAEALEKLFLQKINELPTEE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	;2,6-bis(chloranyl)-4-[[4-[(9S)-4,5,13-trimethyl-9-[2-[(2-methylpropan-2-yl)oxy]-2-oxidanylidene-ethyl]-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-7-yl]phenyl]carbamoyl]benzenesulfinic acid ;
formula_weight	674.6 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.420 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.42 Å
resolution_method	—
num_particles	24545

fit	/app/data/saxs_computation/rs/9rsc/9rsc.fit
pddf	/app/data/pr_computation/rs/9rsc/9rsc.pr.out
profile	/app/data/saxs_computation/rs/9rsc/9rsc.dat
