9rub

CRYSTAL STRUCTURE OF ACTIVATED RIBULOSE-1,5-BISPHOSPHATE CARBOXYLASE COMPLEXED WITH ITS SUBSTRATE, RIBULOSE-1,5-BISPHOSPHATE

Method: X-RAY DIFFRACTION Dmax: 106.4 Å Quality: GOOD

SAXS Profile

SAXS profile for 9rub

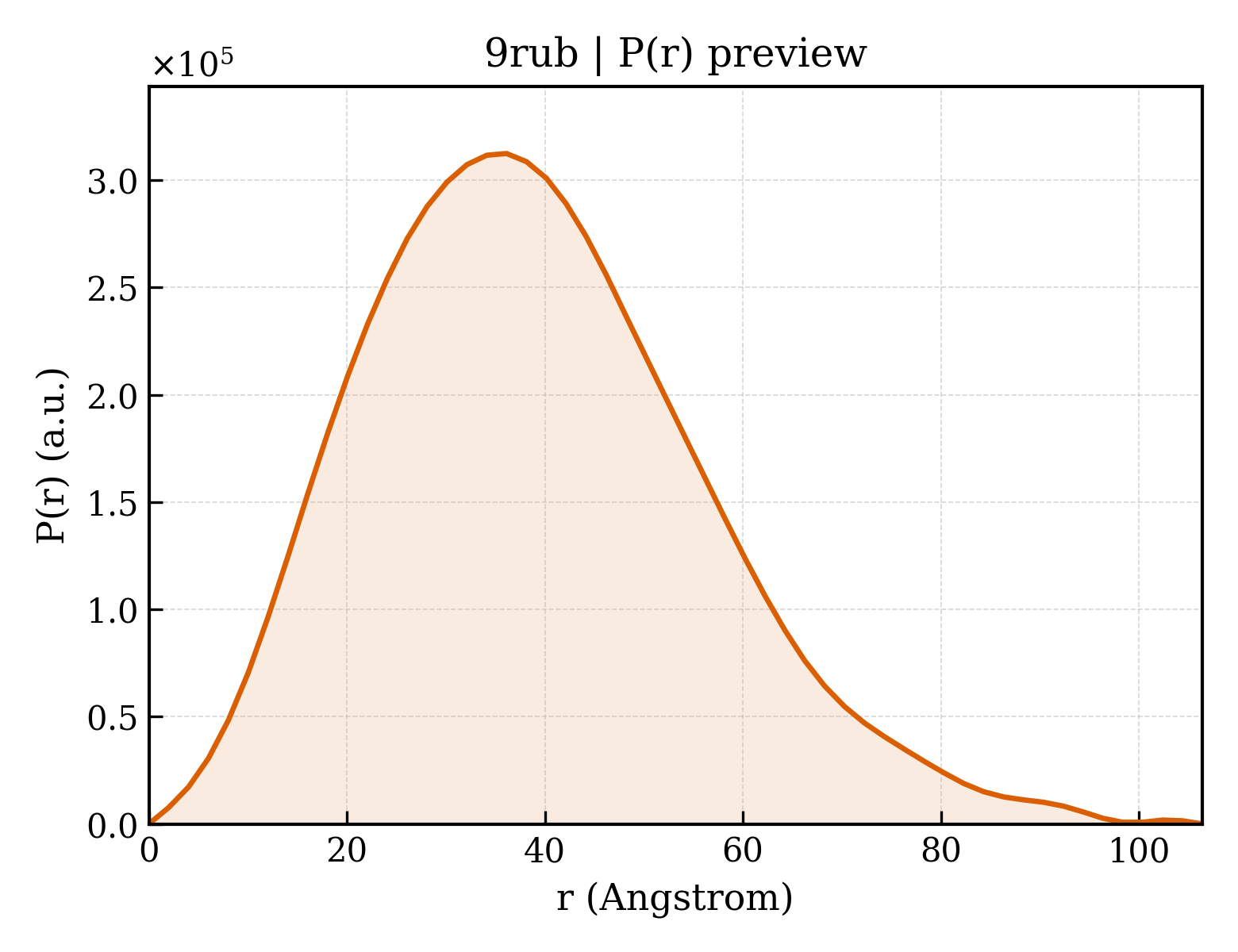

P(r) Distribution

P(r) distribution for 9rub

1. Structure Basics

entry_id9rub
deposition_date1990-11-28
titleCRYSTAL STRUCTURE OF ACTIVATED RIBULOSE-1,5-BISPHOSPHATE CARBOXYLASE COMPLEXED WITH ITS SUBSTRATE, RIBULOSE-1,5-BISPHOSPHATE
keywordsLYASE(CARBON-CARBON); LYASE(CARBON-CARBON)
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier29.94
rg_electron29.18
i0165562000.00
molecular_weight100070.0 kDa
excluded_volume124090 ų
envelope_volume150620 ų
shell_volume42324 ų
envelope_diameter113.6
shell_rg36.96
envelope_rg29.62
shape_rg29.21
total_rg29.72
total_atoms7044
n_residues917
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax106.4
rg_real29.97
rg_real_error1.05
i0_real1.6560e+08
i0_real_error2.7940e+06
rg_reciprocal29.96
i0_reciprocal165600000.0000
total_estimate0.8458
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary36.1
skewness0.486
kurtosis0.088
angular_range— – 0.2650 −1
current_alpha0.0000
highest_alpha53760000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.673; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.991

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (6)

7. Files & Curves (10)
