SAXSdb — 9s3q

▼

1. Structure Basics

entry_id	9s3q
deposition_date	2025-07-24
title	Cerebellar GluA1/4 NTD tetramer (focused refinement)
keywords	AMPA ionotropic glutamate receptor, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.63 Å
rg_electron	44.45 Å
i0	384521000.00
molecular_weight	164560.0 kDa
excluded_volume	206960 Å³
envelope_volume	285430 Å³
shell_volume	54155 Å³
envelope_diameter	145.7 Å
shell_rg	48.59 Å
envelope_rg	43.35 Å
shape_rg	44.45 Å
total_rg	44.62 Å
total_atoms	11622
n_residues	1452
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	146.1 Å
rg_real	44.76 Å
rg_real_error	1.39 Å
i0_real	3.8450e+08
i0_real_error	6.8050e+06
rg_reciprocal	44.63 Å
i0_reciprocal	384500000.0000
total_estimate	0.8680
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	41.8 Å
skewness	0.292
kurtosis	-0.718
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	45060000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.899; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.883; Smooth: 0.700

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Glutamate receptor 1
formula_weight	99637.6 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	11622

ANFPNNIQIGGLFPNQQSQEHAAFRFALSQLTEPPKLLPQIDIVNISDSFEMTYRFCSQFSKGVYAIFGFYERRTVNMLTSFCGALHVCFITPSFPVDTSNQFVLQLRPELQDALISIIDHYKWQKFVYIYDADRGLSVLQKVLDTAAEKNWQVTAVNILTTTEEGYRMLFQDLEKKKERLVVVDCESERLNAILGQIIKLEKNGIGYHYILANLGFMDIDLNKFKESGANVTGFQLVNYTDTIPAKIMQQWKTSDARDHTRVDWKRPKYTSALTYDGVKVMAEAFQSLRRQRIDISRRGNAGDCLANPAVPWGQGIDIQRALQQVRFEGLTGNVQFNEKGRRTNYTLHVIEMKHDGIRKIGYWNEDDKFVPAATDAQAGGDNSSVQNRTYIVTTILEDPYVMLKKNANQFEGNDRYEGYCVELAAEIAKHVGYSYRLEIVSDGKYGARDPDTKAWNGMVGELVYGRADVAVAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHSEEFEEGRDQTTSDQSNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLEAGSTKEFFRRSKIAVFEKMWTYMKSAEPSVFVRTTEEGMIRVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSALRGPVNLAVLKLSEQGVLDKLKSKWWYDKGECGSKDSGSKDKTSALSLSNVAGVFYILIGGLGLAMLVALIEFCYKSRSESKRMKGFCLIPQQSINEAIRTSTLPRNSGAGASGGGSGENGRVVSHDFPKSMQSIPCMSHSTGMPLGATGL

Entity 2 polymer

description	Glutamate receptor
formula_weight	96993.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

AFPSSVQIGGLFIRNTDQEYTAFRLAIFLHNTSPNASEAPFNLVPHVDNIETANSFAVTNAFCSQYSRGVFAIFGLYDKRSVHTLTSFCSALHISLITPSFPTEGESQFVLQLRPSLRGALLSLLDHYEWNCFVFLYDTDRGYSILQAIMEKAGQNGWHVSAICVENFNDVSYRQLLEELDRRQEKKFVIDCEIERLQNILEQIVSVGKHVKGYHYIIANLGFKDISLERFIHGGANVTGFQLVDFNTPMVTKLMDRWKKLDQREYPGSETPPKYTSALTYDGVLVMAETFRNLRRQKIDISRRGNAGDCLANPAAPWGQGIDMERTLKQVQIQGLTGNVQFDHYGRRVNYTMDVFELKSTGPRKVGYWNDMDKLVLIQDVPTLGNDTAAIENRTVVVTTIMESPYVMYKKNHEMFEGNDKYEGYCVDLASEIAKHIGIKYKIAIVPDGKYGARDADTKIWNGMVGELVYGKAEIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEPEDGKEGPSDQPPNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLDSGSTKEFFRRSKIAVYEKMWTYMRSAEPSVFTRTTAEGVARVRKSKGKFAFLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGVATPKGSSLRTPVNLAVLKLSEAGVLDKLKNKWWYDKGECGPKDSGSKDKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRAEAKRMKVAKSAQTFNPTSSQNTQNLATYREGYNVYGTESIKI

Entity 3 branched

description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	586.5 kDa
src_method	man
entity_count	2

Entity 4 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.260 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.26 Å
resolution_method	—
num_particles	329869

fit	/app/data/saxs_computation/s3/9s3q/9s3q.fit
pddf	/app/data/pr_computation/s3/9s3q/9s3q.pr.out
profile	/app/data/saxs_computation/s3/9s3q/9s3q.dat

Cerebellar GluA1/4 NTD tetramer (focused refinement)

SAXS Profile

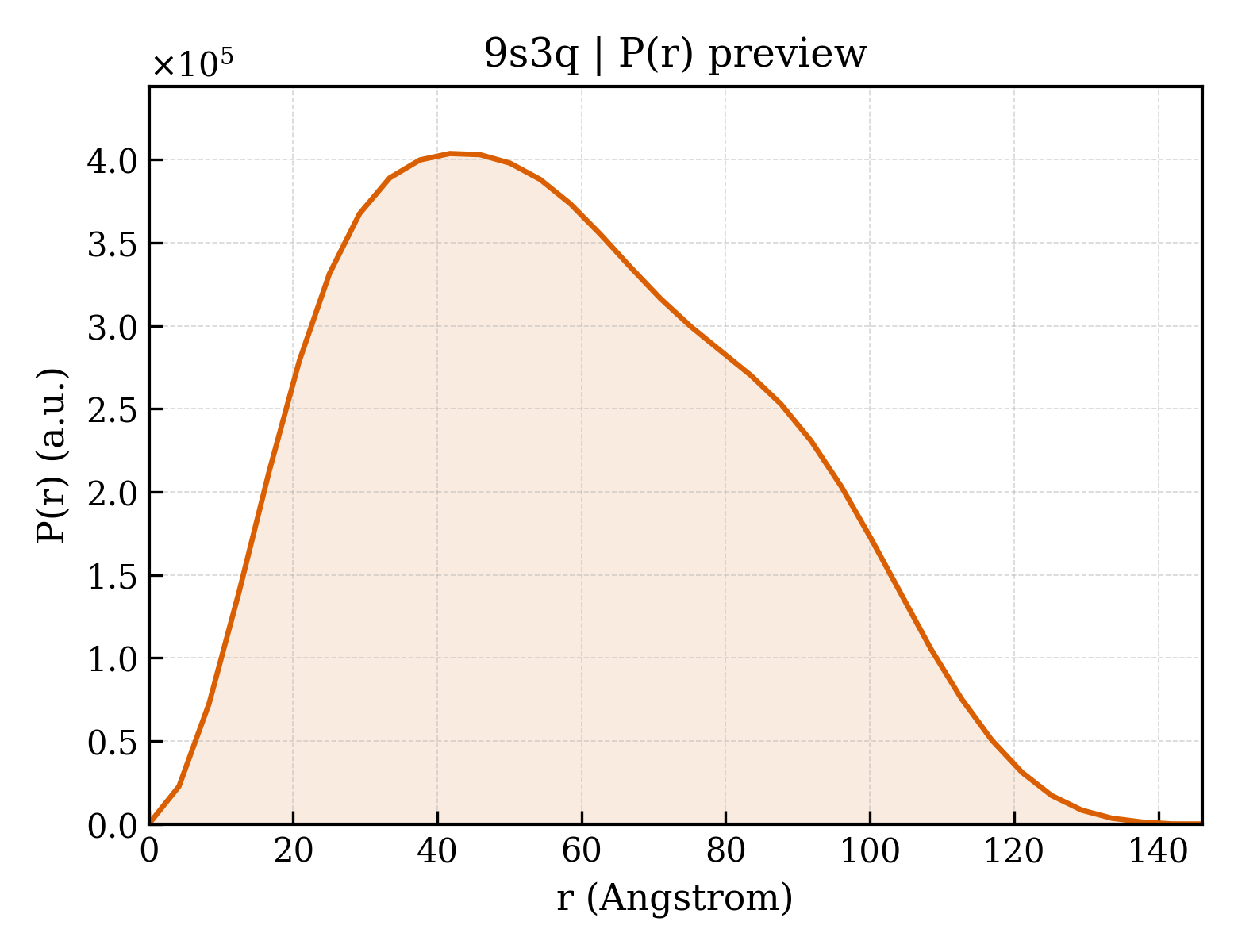

P(r) Distribution
