1. Structure Basics

entry_id	9s41
deposition_date	2025-07-25
title	Cerebellar GluA1/4 TMD with TARP gamma 7 (focused refinement)
keywords	AMPA ionotropic glutamate receptor, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.55 Å
rg_electron	31.70 Å
i0	119348000.00
molecular_weight	97126.0 kDa
excluded_volume	125530 Å³
envelope_volume	160330 Å³
shell_volume	42569 Å³
envelope_diameter	113.4 Å
shell_rg	38.24 Å
envelope_rg	32.09 Å
shape_rg	31.66 Å
total_rg	32.43 Å
total_atoms	6879
n_residues	914
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.3 Å
rg_real	32.61 Å
rg_real_error	0.93 Å
i0_real	1.1930e+08
i0_real_error	2.1100e+06
rg_reciprocal	32.58 Å
i0_reciprocal	119300000.0000
total_estimate	0.8687
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	38.3 Å
skewness	0.438
kurtosis	-0.120
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	14030000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.794; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.915

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Glutamate receptor 1
formula_weight	99637.6 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	6879

ANFPNNIQIGGLFPNQQSQEHAAFRFALSQLTEPPKLLPQIDIVNISDSFEMTYRFCSQFSKGVYAIFGFYERRTVNMLTSFCGALHVCFITPSFPVDTSNQFVLQLRPELQDALISIIDHYKWQKFVYIYDADRGLSVLQKVLDTAAEKNWQVTAVNILTTTEEGYRMLFQDLEKKKERLVVVDCESERLNAILGQIIKLEKNGIGYHYILANLGFMDIDLNKFKESGANVTGFQLVNYTDTIPAKIMQQWKTSDARDHTRVDWKRPKYTSALTYDGVKVMAEAFQSLRRQRIDISRRGNAGDCLANPAVPWGQGIDIQRALQQVRFEGLTGNVQFNEKGRRTNYTLHVIEMKHDGIRKIGYWNEDDKFVPAATDAQAGGDNSSVQNRTYIVTTILEDPYVMLKKNANQFEGNDRYEGYCVELAAEIAKHVGYSYRLEIVSDGKYGARDPDTKAWNGMVGELVYGRADVAVAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHSEEFEEGRDQTTSDQSNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLEAGSTKEFFRRSKIAVFEKMWTYMKSAEPSVFVRTTEEGMIRVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSALRGPVNLAVLKLSEQGVLDKLKSKWWYDKGECGSKDSGSKDKTSALSLSNVAGVFYILIGGLGLAMLVALIEFCYKSRSESKRMKGFCLIPQQSINEAIRTSTLPRNSGAGASGGGSGENGRVVSHDFPKSMQSIPCMSHSTGMPLGATGL

Entity 2 polymer

description	Glutamate receptor 4
formula_weight	96993.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

AFPSSVQIGGLFIRNTDQEYTAFRLAIFLHNTSPNASEAPFNLVPHVDNIETANSFAVTNAFCSQYSRGVFAIFGLYDKRSVHTLTSFCSALHISLITPSFPTEGESQFVLQLRPSLRGALLSLLDHYEWNCFVFLYDTDRGYSILQAIMEKAGQNGWHVSAICVENFNDVSYRQLLEELDRRQEKKFVIDCEIERLQNILEQIVSVGKHVKGYHYIIANLGFKDISLERFIHGGANVTGFQLVDFNTPMVTKLMDRWKKLDQREYPGSETPPKYTSALTYDGVLVMAETFRNLRRQKIDISRRGNAGDCLANPAAPWGQGIDMERTLKQVQIQGLTGNVQFDHYGRRVNYTMDVFELKSTGPRKVGYWNDMDKLVLIQDVPTLGNDTAAIENRTVVVTTIMESPYVMYKKNHEMFEGNDKYEGYCVDLASEIAKHIGIKYKIAIVPDGKYGARDADTKIWNGMVGELVYGKAEIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEPEDGKEGPSDQPPNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLDSGSTKEFFRRSKIAVYEKMWTYMRSAEPSVFTRTTAEGVARVRKSKGKFAFLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGVATPKGSSLRTPVNLAVLKLSEAGVLDKLKNKWWYDKGECGPKDSGSKDKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRAEAKRMKVAKSAQTFNPTSSQNTQNLATYREGYNVYGTESIKI

Entity 3 polymer

description	Voltage-dependent calcium channel gamma-7 subunit
formula_weight	31031.5 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	I,J

MSHCSSRALTLLSSVFGACGLLLVGIAVSTDYWLYMEEGTVLPQNQTTEVKMALHAGLWRVCFFAGREKGRCVASEYFLEPEINLVTENTENILKTVRTATPFPMVSLFLVFTAFVISNIGHIRPQRTILAFVSGIFFILSGLSLVVGLVLYISSINDEVMNRPSSSEQYFHYRYGWSFAFAASSFLLKEGAGVMSVYLFTKRYAEEEMYRPHPAFYRPRLSDCSDYSGQFLQPEAWRRGRSPSDISSDVSIQMTQNYPPAIKYPDHLHISTSPC

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.660 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.66 Å
resolution_method	—
num_particles	124708

fit	/app/data/saxs_computation/s4/9s41/9s41.fit
pddf	/app/data/pr_computation/s4/9s41/9s41.pr.out
profile	/app/data/saxs_computation/s4/9s41/9s41.dat

Cerebellar GluA1/4 TMD with TARP gamma 7 (focused refinement)

SAXS Profile

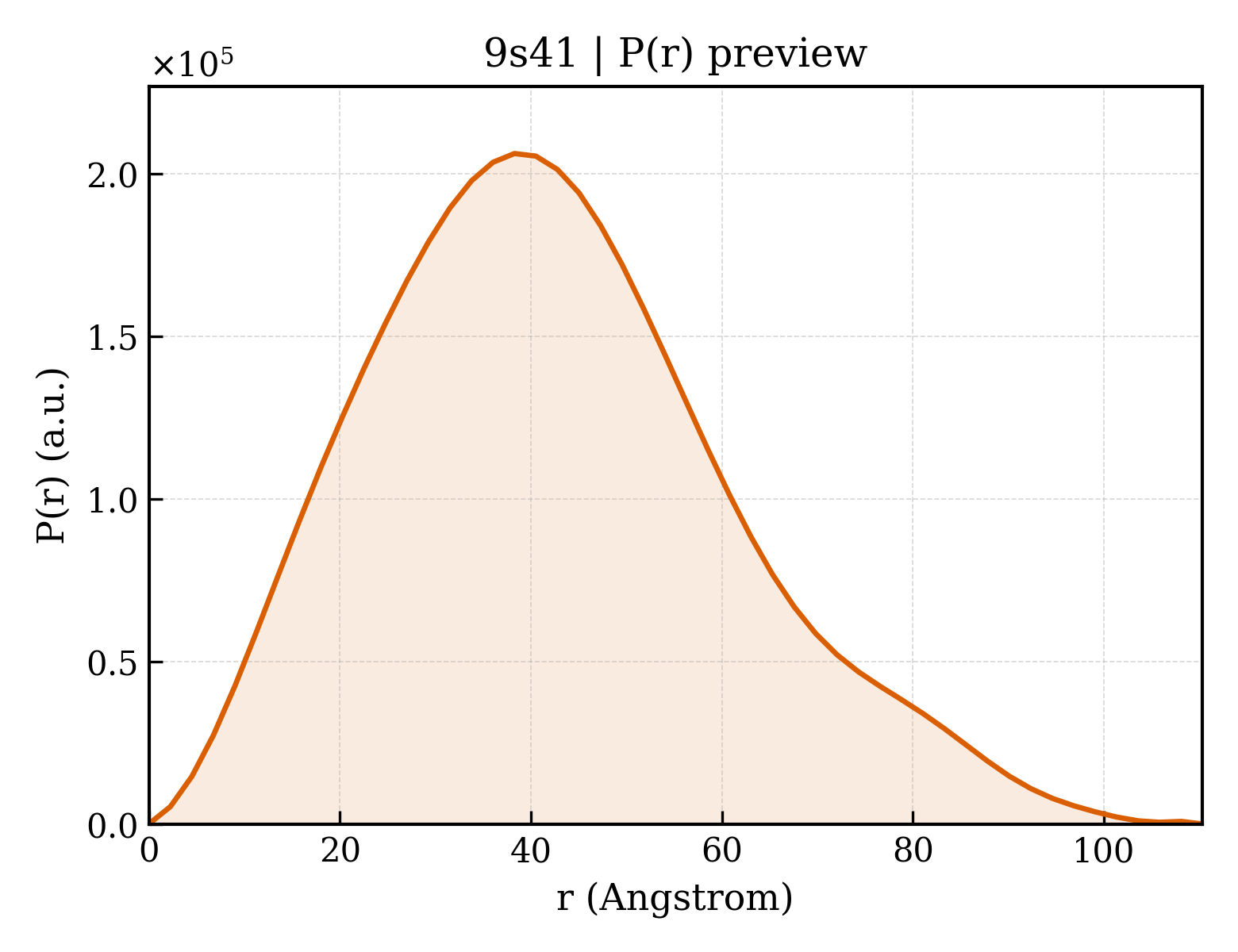

P(r) Distribution
