9s9g

S. islandicus CdvA filament (X-ray)

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division protein CdvA

Saccharolobus islandicus

UniProt M9U931

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count
2 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count
3 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count
4 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count
5 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count
6 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count
7 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer
9s9g 9s9g 9s9g 9s9g 9s9g 9s9g 9s9g 9s9i

8 assemblies

Homotetramer

None

Other homooligomers
9s9h

1 assemblies

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name M9U931_SACIS
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–238； UniProt 1–238 Author chain B； PDBConstruct 1–238； UniProt 1–238 Author chain C； PDBConstruct 1–238； UniProt 1–238 Author chain D； PDBConstruct 1–238； UniProt 1–238 Author chain E； PDBConstruct 1–238； UniProt 1–238 Author chain F； PDBConstruct 1–238； UniProt 1–238 Author chain G； PDBConstruct 1–238； UniProt 1–238 Author chain H； PDBConstruct 1–238； UniProt 1–238 Author chain I； PDBConstruct 1–238； UniProt 1–238 Author chain J； PDBConstruct 1–238； UniProt 1–238 Author chain K； PDBConstruct 1–238； UniProt 1–238 Author chain L； PDBConstruct 1–238； UniProt 1–238 Author chain M； PDBConstruct 1–238； UniProt 1–238 Author chain N； PDBConstruct 1–238； UniProt 1–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9s9g
Deposition date deposition_date2025-08-06
Last revision last_revision2026-01-28
Structure title titleS. islandicus CdvA filament (X-ray)
Keywords keywordscell division, archaea, CELL CYCLE; CELL CYCLE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9s9g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

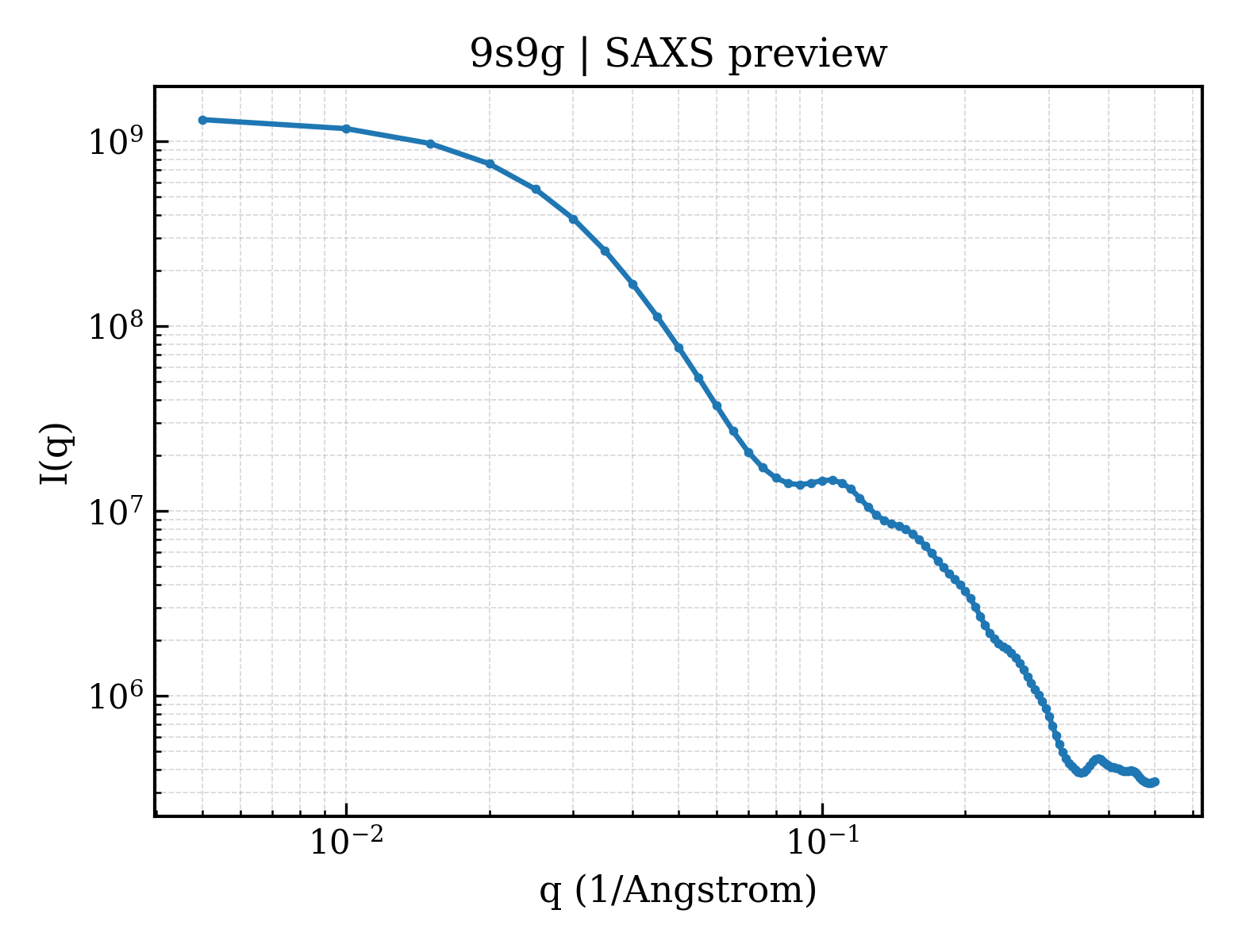

9s9g__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

9s9g__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）29.56 Å
Rg (electron density)29.24 Å
Total Rg29.69 Å
Atom count3145
Residues388
Excluded volume56501 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9s9g__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 9s9g__assembly_2__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
3 1 9s9g__assembly_3__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
4 1 9s9g__assembly_4__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
5 1 9s9g__assembly_5__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
6 1 9s9g__assembly_6__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
7 1 9s9g__assembly_7__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

7. Citations (1)
