9s9i
S. islandicus CdvA (non-polymerising mutant)

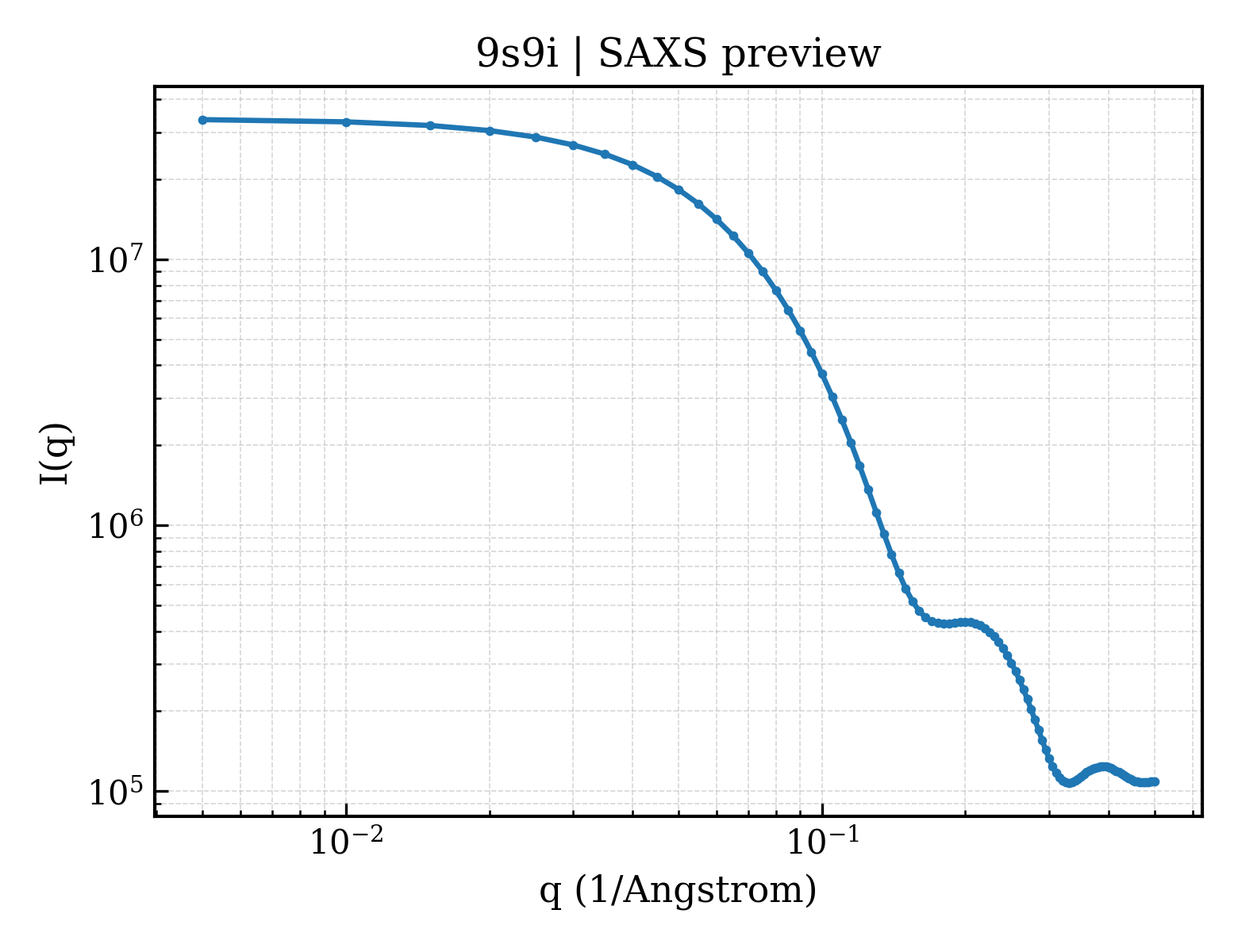

SAXS Profile

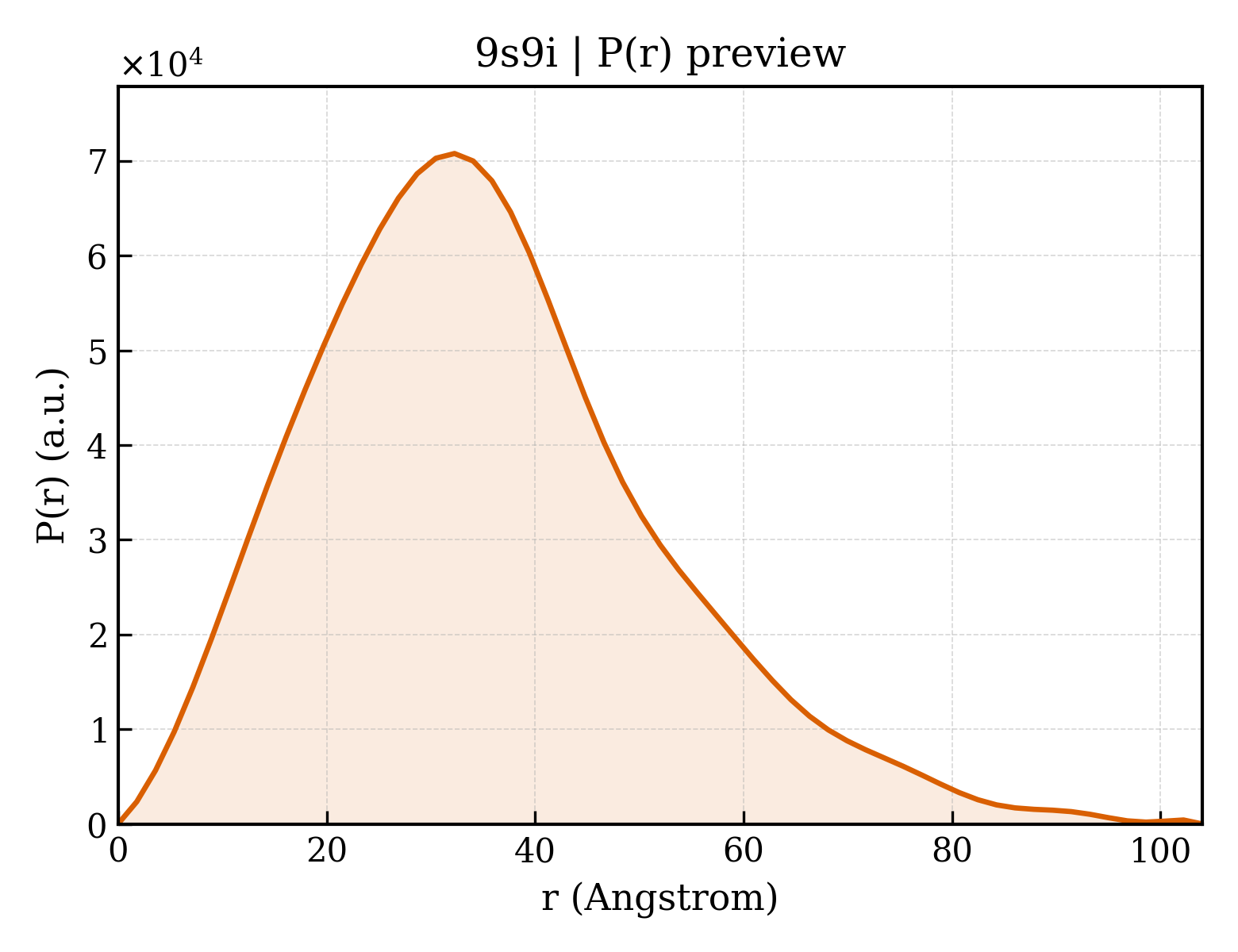

P(r) Distribution
1. Structure Basics
| entry_id | 9s9i |
| deposition_date | 2025-08-06 |
| last_revision | 2026-01-28 |
| title | S. islandicus CdvA (non-polymerising mutant) |
| keywords | cell division, archaea, CELL CYCLE; CELL CYCLE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.34 Å |
| rg_electron | 26.46 Å |
| i0 | 33792900.00 |
| molecular_weight | 44293.0 kDa |
| excluded_volume | 55416 ų |
| envelope_volume | 73860 ų |
| shell_volume | 25568 ų |
| envelope_diameter | 107.8 Å |
| shell_rg | 30.61 Å |
| envelope_rg | 26.70 Å |
| shape_rg | 26.50 Å |
| total_rg | 26.81 Å |
| total_atoms | 3110 |
| n_residues | 384 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 104.0 Å |
| rg_real | 27.55 Å |
| rg_real_error | 1.26 Å |
| i0_real | 3.3790e+07 |
| i0_real_error | 5.2630e+05 |
| rg_reciprocal | 27.48 Å |
| i0_reciprocal | 33790000.0000 |
| total_estimate | 0.7992 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 32.3 Å |
| skewness | 0.634 |
| kurtosis | 0.374 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3273000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.513; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.874; Smooth: 0.972 |
