9skv

Cryo-EM structure of H. neapolitanus CsoSCA in reducing conditions, dimer, major state, inactive conformation

Method: ELECTRON MICROSCOPY D_max: 108.6 Å Quality: GOOD

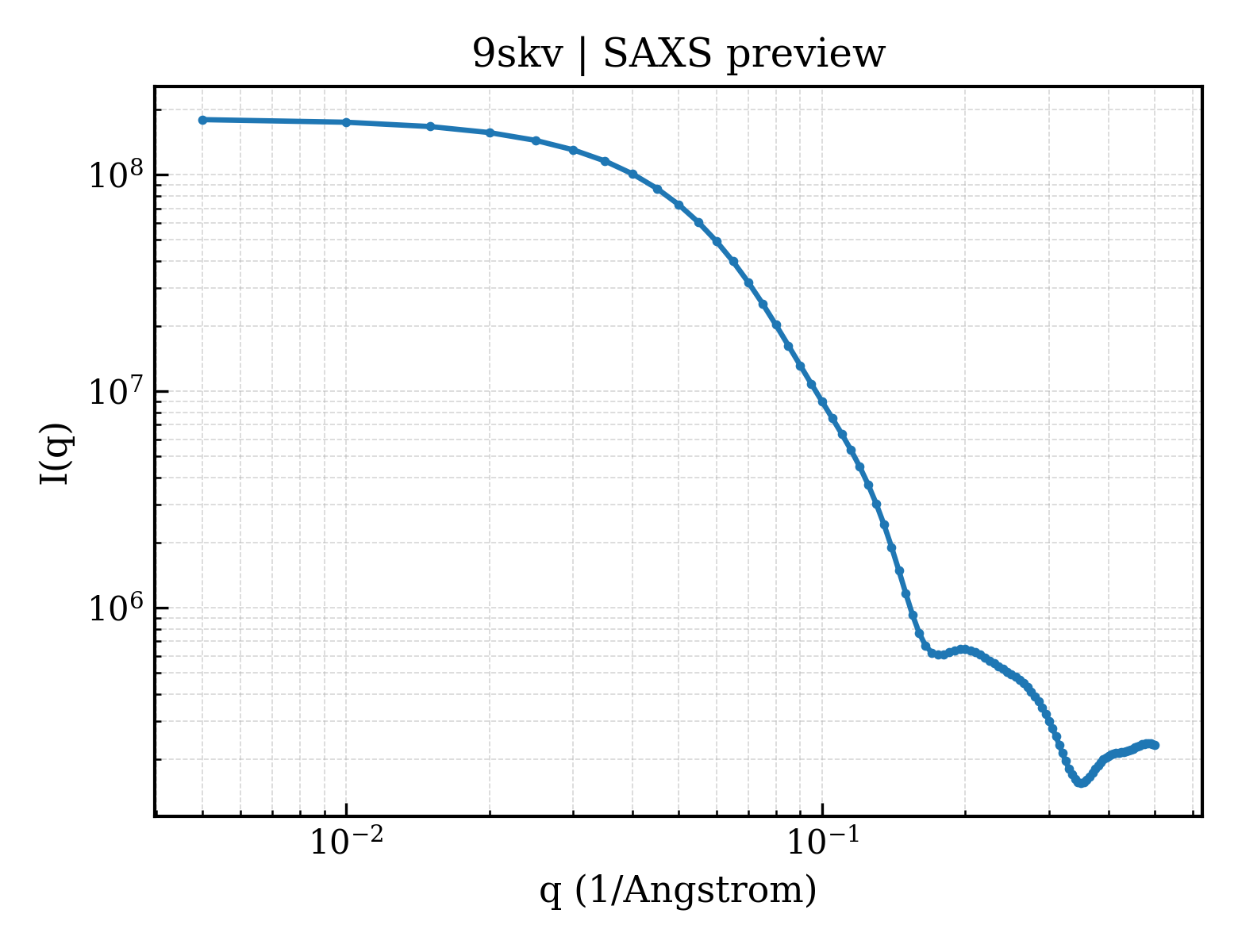

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9skv
deposition_date	2025-09-02
title	Cryo-EM structure of H. neapolitanus CsoSCA in reducing conditions, dimer, major state, inactive conformation
keywords	Carbonic anhydrase, carboxysome, CO2 concentration mechanism, LYASE; LYASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.17 Å
rg_electron	32.63 Å
i0	181413000.00
molecular_weight	105940.0 kDa
excluded_volume	131820 Å³
envelope_volume	167410 Å³
shell_volume	43141 Å³
envelope_diameter	115.2 Å
shell_rg	39.26 Å
envelope_rg	32.60 Å
shape_rg	32.62 Å
total_rg	33.17 Å
total_atoms	14618
n_residues	950
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	108.6 Å
rg_real	33.15 Å
rg_real_error	0.73 Å
i0_real	1.8140e+08
i0_real_error	2.6540e+06
rg_reciprocal	33.16 Å
i0_reciprocal	181400000.0000
total_estimate	0.8944
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	106.3 Å
skewness	0.299
kurtosis	-0.519
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	38980000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.959

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Maltose/maltodextrin-binding periplasmic protein,Carboxysome shell carbonic anhydrase
formula_weight	102044.8 kDa
ec_number	4.2.1.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	15016

MWSHPQFEKGSSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIEENLYFQSNANTRNTRSKQRAPFGVSSSVKPRLDLIEQAPNPAYDRHPACITLPERTCRHPLTDLEANEQLGRCEDSVKNRFDRVIPFLQVVAGIPLGLDYVTRVQELAQSSLGHTLPEELLKDNWISGHNLKGIFGYATAKALTAATEQFSRKIMSEKDDSASAIGFFLDCGFHAVDISPCADGRLKGLLPYILRLPLTAFTYRKAYAGSMFDIEDDLAQWEKNELRRYREGVPNTADQPTRYLKIAVYHFSTSDPTHSGCAAHGSNDRAALEAALTQLMKFREAVENAHCCGASIDILLIGVDTDTDAIRVHIPDSKGFLNPYRYVDNTVTYAQTLHLAPDEARVIIHEAILNANRSDGWAKGNGVASEGMRRFIGQLLINNLSQIDYVVNRHGGRYPPNDIGHAERYISVGDGFDEVQIRNLAYYAHLDTVEENAIDVDVGIKIFTKLNLSRGLPIPIAIHYRYDPNVPGSRERTVVKARRIYNAIKERFSSLDEQNLLQFRLSVQAQDIGSPIEEVASA

Source

organism	Halothiobacillus neapolitanus c2
ncbi_taxonomy_id	555778
host_organism	Escherichia coli BL21

Entity 2 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	398

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.120 Å
resolution_low	312.000 Å
r_factor	—
r_work	—
r_free	—

resolution	2.12 Å
resolution_method	—
num_particles	543321

fit	/app/data/saxs_computation/sk/9skv/9skv.fit
pddf	/app/data/pr_computation/sk/9skv/9skv.pr.out
profile	/app/data/saxs_computation/sk/9skv/9skv.dat
