9sky

Cryo-EM structure of H. neapolitanus CsoSCA C283A/C284A inactive mutant, dimer, state 1

Method: ELECTRON MICROSCOPY D_max: 105.8 Å Quality: GOOD

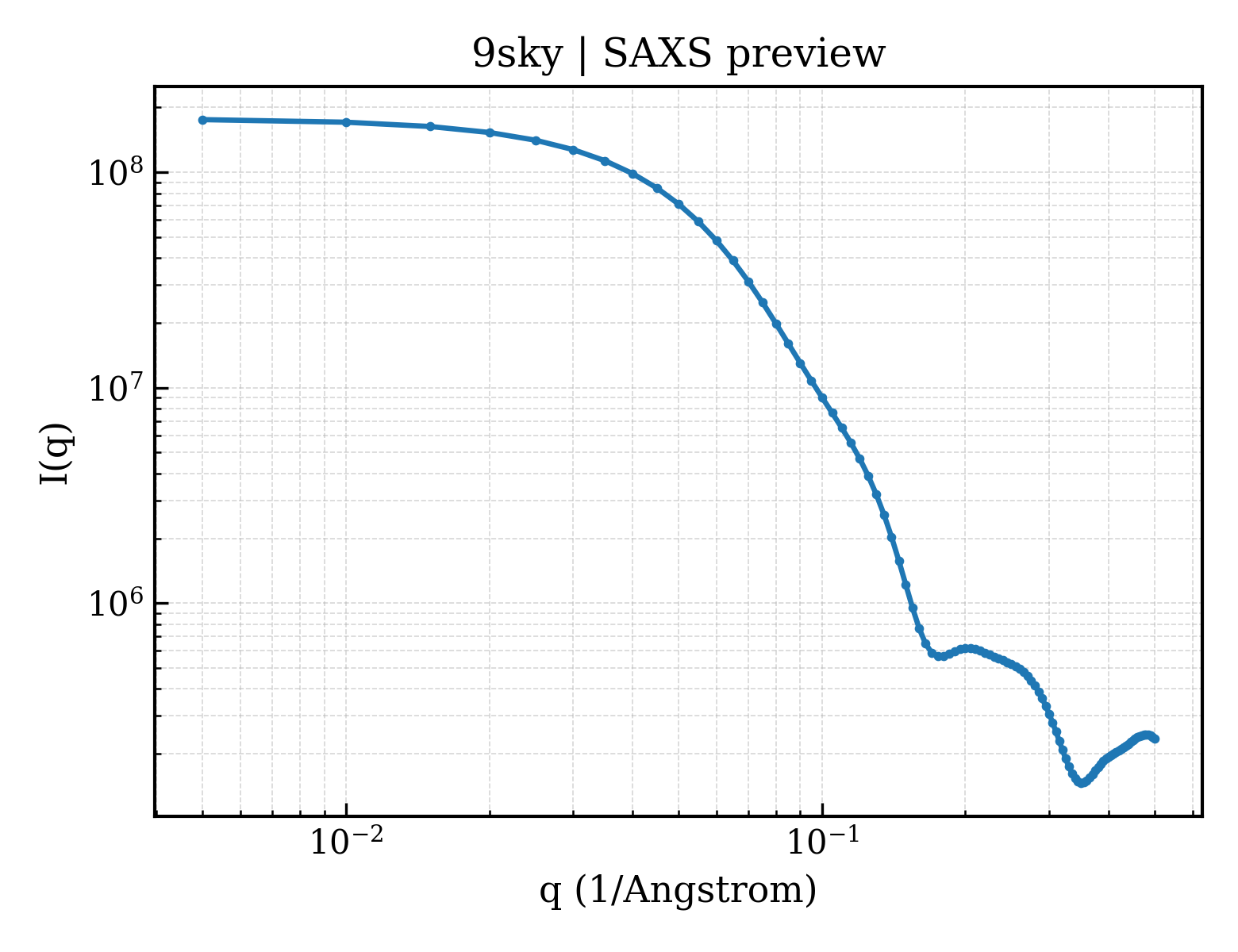

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9sky
deposition_date	2025-09-02
title	Cryo-EM structure of H. neapolitanus CsoSCA C283A/C284A inactive mutant, dimer, state 1
keywords	Carbonic anhydrase, carboxysome, CO2 concentration mechanism, LYASE; LYASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.14 Å
rg_electron	32.58 Å
i0	177269000.00
molecular_weight	104930.0 kDa
excluded_volume	130630 Å³
envelope_volume	164950 Å³
shell_volume	42688 Å³
envelope_diameter	111.3 Å
shell_rg	39.27 Å
envelope_rg	32.42 Å
shape_rg	32.57 Å
total_rg	33.11 Å
total_atoms	14494
n_residues	942
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	105.8 Å
rg_real	33.10 Å
rg_real_error	0.66 Å
i0_real	1.7730e+08
i0_real_error	2.6570e+06
rg_reciprocal	33.12 Å
i0_reciprocal	177300000.0000
total_estimate	0.8990
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	35.2 Å
skewness	0.277
kurtosis	-0.567
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	38040000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.917

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Maltose/maltodextrin-binding periplasmic protein,Carboxysome shell carbonic anhydrase
formula_weight	101980.6 kDa
ec_number	4.2.1.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	14747

MWSHPQFEKGSSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIEENLYFQSNANTRNTRSKQRAPFGVSSSVKPRLDLIEQAPNPAYDRHPACITLPERTCRHPLTDLEANEQLGRCEDSVKNRFDRVIPFLQVVAGIPLGLDYVTRVQELAQSSLGHTLPEELLKDNWISGHNLKGIFGYATAKALTAATEQFSRKIMSEKDDSASAIGFFLDCGFHAVDISPCADGRLKGLLPYILRLPLTAFTYRKAYAGSMFDIEDDLAQWEKNELRRYREGVPNTADQPTRYLKIAVYHFSTSDPTHSGCAAHGSNDRAALEAALTQLMKFREAVENAHAAGASIDILLIGVDTDTDAIRVHIPDSKGFLNPYRYVDNTVTYAQTLHLAPDEARVIIHEAILNANRSDGWAKGNGVASEGMRRFIGQLLINNLSQIDYVVNRHGGRYPPNDIGHAERYISVGDGFDEVQIRNLAYYAHLDTVEENAIDVDVGIKIFTKLNLSRGLPIPIAIHYRYDPNVPGSRERTVVKARRIYNAIKERFSSLDEQNLLQFRLSVQAQDIGSPIEEVASA

Source

organism	Halothiobacillus neapolitanus c2
ncbi_taxonomy_id	555778
host_organism	Escherichia coli BL21

Entity 2 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	253

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.180 Å
resolution_low	312.000 Å
r_factor	—
r_work	—
r_free	—

resolution	2.18 Å
resolution_method	—
num_particles	482720
