9snf
CTLH-CRA domain of murine RanBP10
SAXS Profile

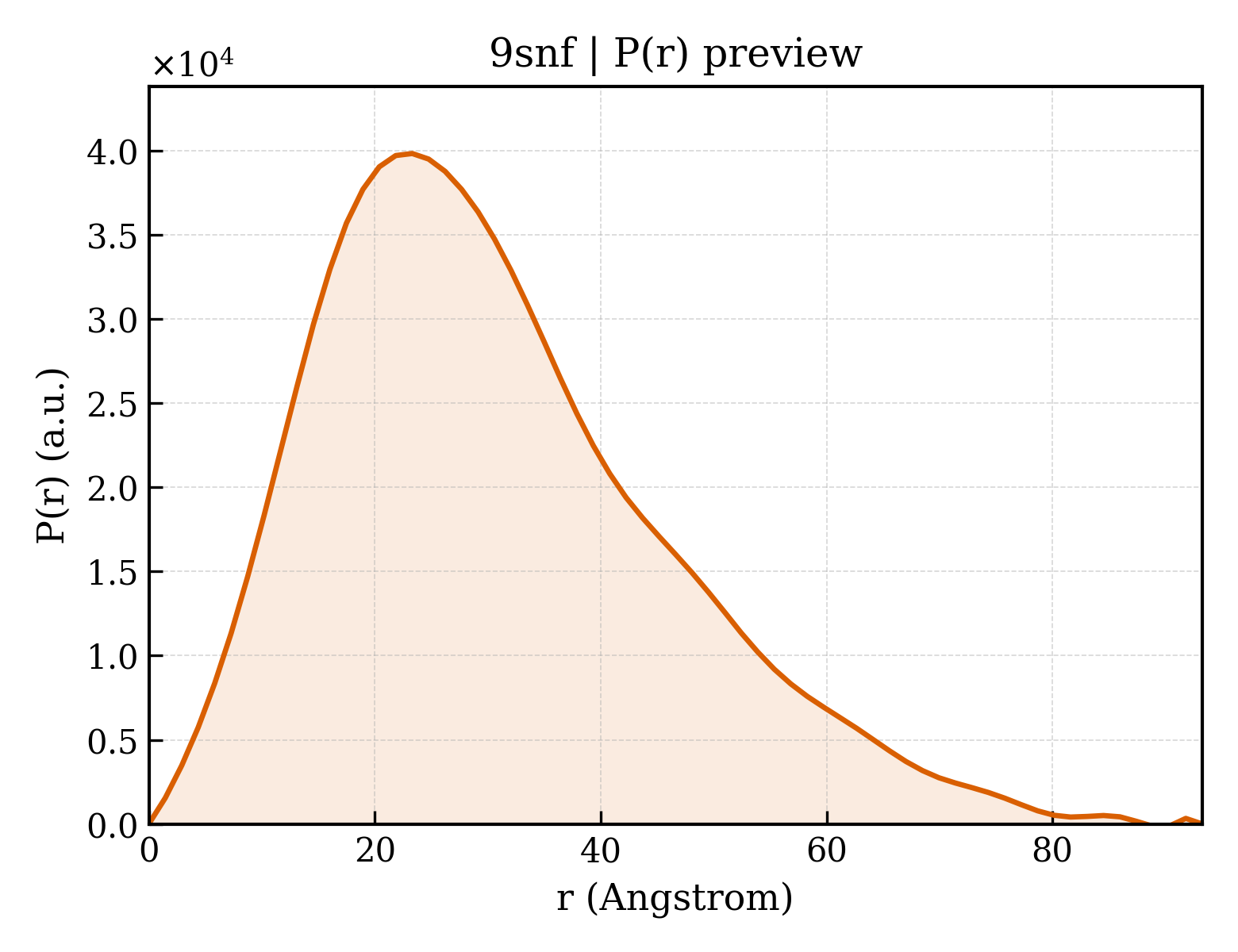

P(r) Distribution
1. Structure Basics
| entry_id | 9snf |
| deposition_date | 2025-09-10 |
| last_revision | 2026-02-18 |
| title | CTLH-CRA domain of murine RanBP10 |
| keywords | CTLH complex, Gid complex, E3 ligase, LIGASE; LIGASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.78 Å |
| rg_electron | 23.50 Å |
| i0 | 17379400.00 |
| molecular_weight | 30945.0 kDa |
| excluded_volume | 38530 ų |
| envelope_volume | 47199 ų |
| shell_volume | 18807 ų |
| envelope_diameter | 96.9 Å |
| shell_rg | 27.82 Å |
| envelope_rg | 23.83 Å |
| shape_rg | 23.48 Å |
| total_rg | 24.10 Å |
| total_atoms | 4333 |
| n_residues | 274 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 93.3 Å |
| rg_real | 24.11 Å |
| rg_real_error | 1.17 Å |
| i0_real | 1.7380e+07 |
| i0_real_error | 2.9090e+05 |
| rg_reciprocal | 24.03 Å |
| i0_reciprocal | 17380000.0000 |
| total_estimate | 0.6613 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 23.3 Å |
| skewness | 0.714 |
| kurtosis | 0.222 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3283000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.417; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.351; Smooth: 0.000 |
