9sng
CTLH-CRA domain of murine RanBP10 mutant Q519G, F543L, Y548F and V556F
SAXS Profile

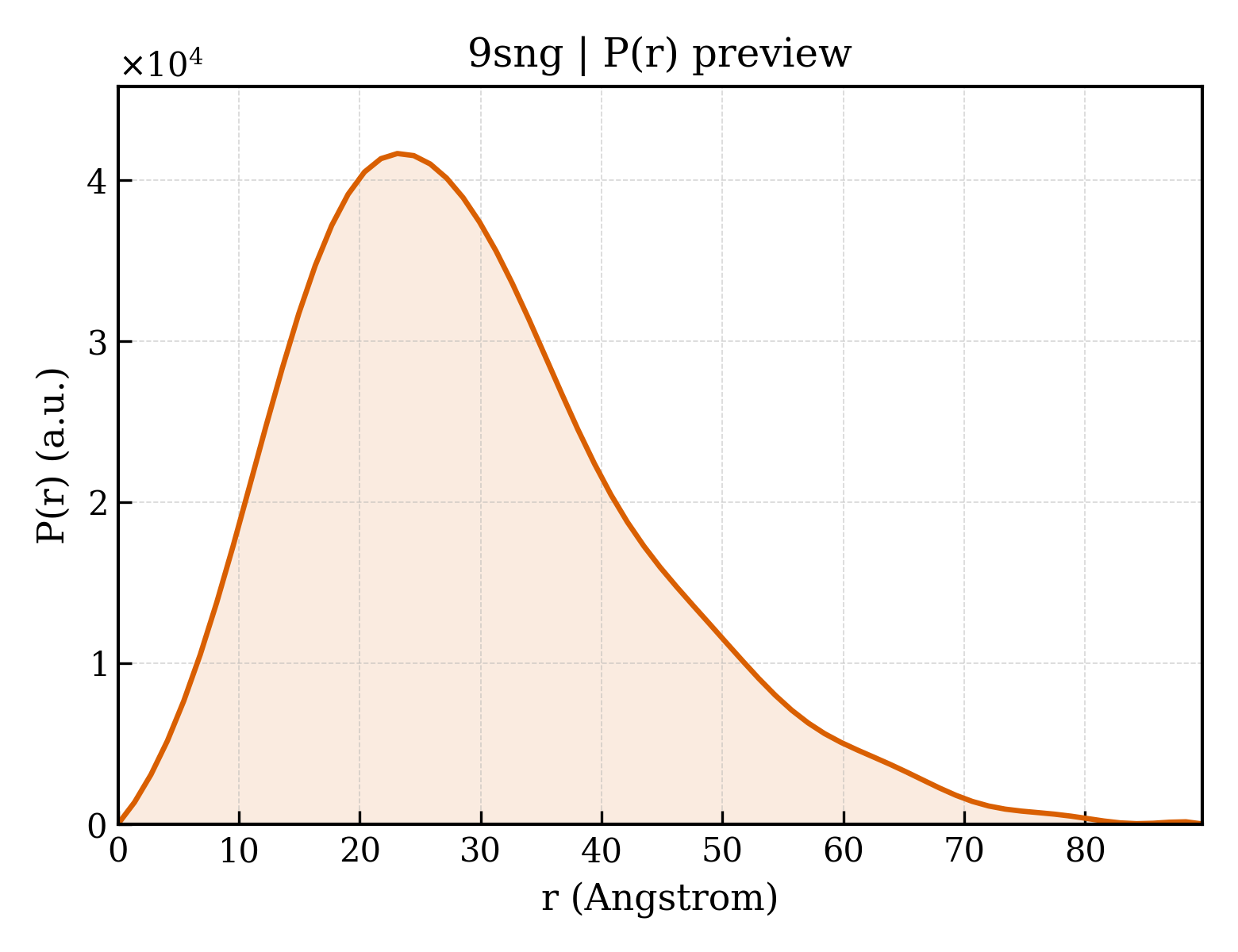

P(r) Distribution
1. Structure Basics
| entry_id | 9sng |
| deposition_date | 2025-09-10 |
| last_revision | 2026-02-18 |
| title | CTLH-CRA domain of murine RanBP10 mutant Q519G, F543L, Y548F and V556F |
| keywords | CTLH complex, Gid complex, E3 ligase, LIGASE; LIGASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.64 Å |
| rg_electron | 22.19 Å |
| i0 | 17185700.00 |
| molecular_weight | 30870.0 kDa |
| excluded_volume | 38510 ų |
| envelope_volume | 46108 ų |
| shell_volume | 18951 ų |
| envelope_diameter | 92.8 Å |
| shell_rg | 27.06 Å |
| envelope_rg | 22.69 Å |
| shape_rg | 22.18 Å |
| total_rg | 22.89 Å |
| total_atoms | 4330 |
| n_residues | 275 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.7 Å |
| rg_real | 22.86 Å |
| rg_real_error | 0.94 Å |
| i0_real | 1.7190e+07 |
| i0_real_error | 2.8180e+05 |
| rg_reciprocal | 22.81 Å |
| i0_reciprocal | 17190000.0000 |
| total_estimate | 0.7555 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | 0.689 |
| kurtosis | 0.298 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3731000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.425; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.556; Smooth: 0.985 |
