RACB with GSP and the fragment of RIPb protein bound (antiparallel)

entry_id	9t3e
deposition_date	2025-10-27
title	RACB with GSP and the fragment of RIPb protein bound (antiparallel)
keywords	RACB, Hordeum vulgare, GSP, RIPb, PLANT PROTEIN; PLANT PROTEIN
method	X-RAY DIFFRACTION

rg_guinier	26.29 Å
rg_electron	26.58 Å
i0	13346500.00
molecular_weight	26893.0 kDa
excluded_volume	33363 ų
envelope_volume	43724 ų
shell_volume	17030 ų
envelope_diameter	111.0 Å
shell_rg	26.63 Å
envelope_rg	29.49 Å
shape_rg	26.43 Å
total_rg	27.03 Å
total_atoms	1885
n_residues	239
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	107.5 Å
rg_real	27.48 Å
rg_real_error	1.46 Å
i0_real	1.3350e+07
i0_real_error	2.3070e+05
rg_reciprocal	27.10 Å
i0_reciprocal	13340000.0000
total_estimate	0.6238
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	105.7 Å
skewness	1.130
kurtosis	0.622
angular_range	— – 0.3000 Å−1
current_alpha	0.0000
highest_alpha	1774000.0000
n_real_points	61
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.044; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.007; Smooth: 0.967

Unit Cell

length_a	76.510 Å
length_b	139.450 Å
length_c	60.110 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

Refinement

resolution	2.300 Å
resolution_low	45.530 Å
r_factor	0.2618
r_work	0.2585
r_free	0.3175

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/t3/9t3e/pr_distribution.json
• pr_output /app/data/pr_computation/t3/9t3e/9t3e.pr.out

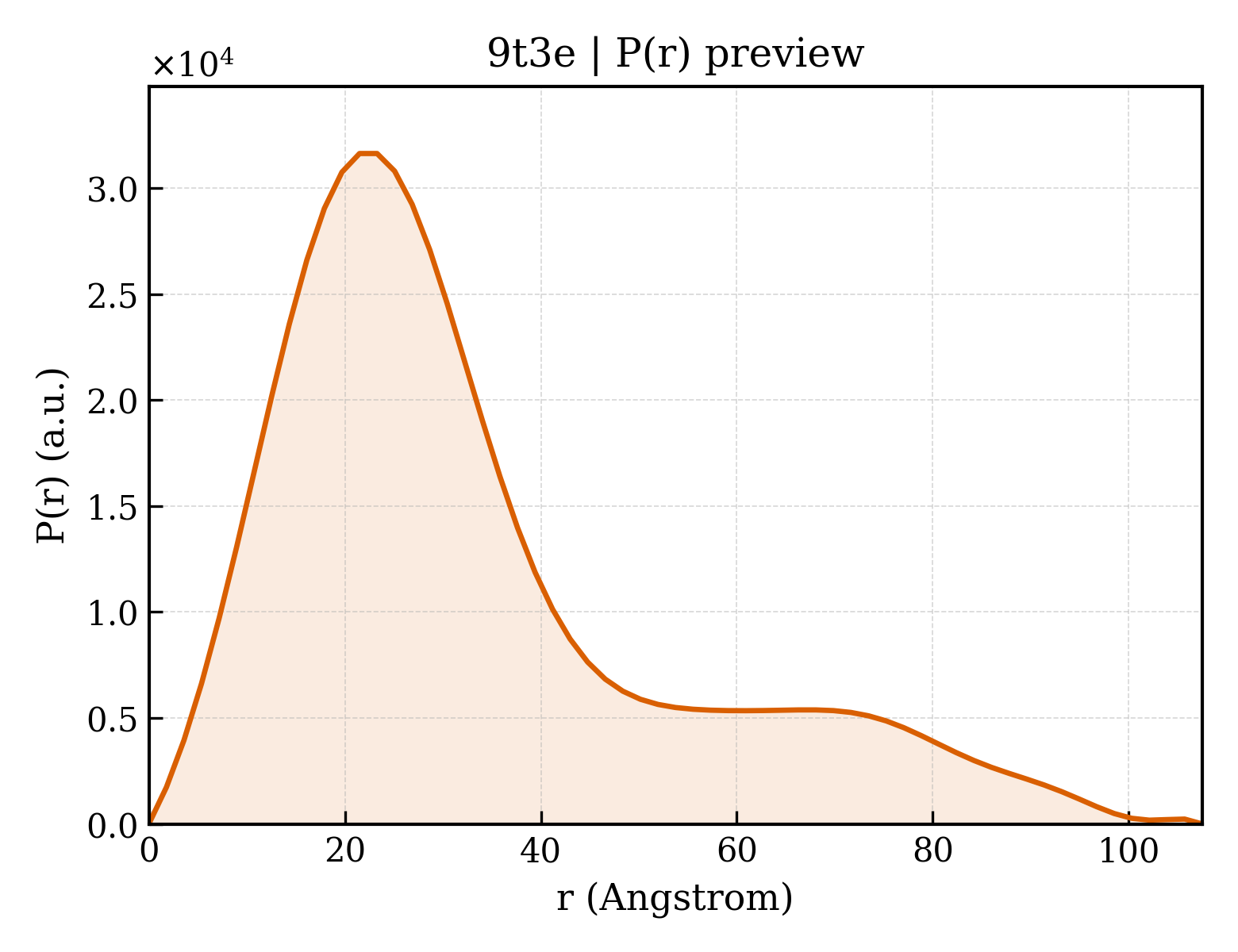

• pr_plot /app/data/visualization/pr_computation/t3/9t3e/9t3e_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/t3/9t3e/9t3e.dat
• saxs_fit /app/data/saxs_computation/t3/9t3e/9t3e.fit
• saxs_log /app/data/saxs_computation/t3/9t3e/9t3e.log
• saxs_plot /app/data/visualization/saxs_computation/t3/9t3e/9t3e_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/t3/9t3e/9t3e.fit
pddf	/app/data/pr_computation/t3/9t3e/9t3e.pr.out
profile	/app/data/saxs_computation/t3/9t3e/9t3e.dat
