9t5w

Cryo-EM structure of mutant R61H alphaM/beta2 headpiece complex

Method: ELECTRON MICROSCOPY D_max: 164.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 2 of Integrin alpha-M

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 5 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 17–770	Not recorded	Integrin beta-2 × 1 （P05107） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 2.74 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9T5W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BHO MAC-1 I DOMAIN MAGNESIUM COMPLEX Deposited 1998-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain 1 149–337（189 aa） Fragment：MAC-1 ALPHA DOMAIN Chain 2 149–337（189 aa） Fragment：MAC-1 ALPHA DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；CRYSTALS WERE GROWN BY VAPOR DIFFUSION ON SITTING DROP BRIDGES. THE WELL MIX OF 20-24% PEG6000 BUFFERED WITH 100 MM NA ACETATE PH 5.0 WAS MIXED 1:1 WITH 3 UL OF I DOMAIN PROTEIN (20-30 MG/ML, 50 MM HEPES PH 7.0, 0.025% NA AZIDE). CRYSTALS WERE STABLIZED IN 100MM MGCL2, 100 MM NA ACETATE 5.0, 26% PEG6000 FOR DATA COLLECTION., vapor diffusion - sitting drop	Resolution 2.70 Å
1BHQ MAC-1 I DOMAIN CADMIUM COMPLEX Deposited 1998-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain 1 149–337（189 aa） Fragment：MAC-1 ALPHA DOMAIN Chain 2 149–337（189 aa） Fragment：MAC-1 ALPHA DOMAIN	Not recorded	CD CADMIUM ION × 3 ACE ACETYL GROUP × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；CRYSTALS WERE GROWN BY VAPOR DIFFUSION ON SITTING DROP BRIDGES. THE WELL MIX OF 20-24% PEG6000 BUFFERED WITH 100 MM NA ACETATE PH 5.0 WAS MIXED 1:1 WITH 3 UL OF I DOMAIN PROTEIN (20-30 MG/ML, 50 MM HEPES PH 7.0, 0.025% NA AZIDE). CRYSTALS WERE STABLIZED IN 10MM CDCL2, 100 MM NA ACETATE 5.0, 26% PEG6000 FOR DATA COLLECTION., vapor diffusion - sitting drop	Resolution 2.70 Å
1IDN MAC-1 I DOMAIN METAL FREE Deposited 1998-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain 1 149–337（189 aa） Fragment：MAC-1 ALPHA DOMAIN Chain 2 149–337（189 aa） Fragment：MAC-1 ALPHA DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；CRYSTALS WERE GROWN BY VAPOR DIFFUSION ON SITTING DROP BRIDGES. THE WELL MIX OF 20-24% PEG6000 BUFFERED WITH 100 MM NA ACETATE PH 5.0 WAS MIXED 1:1 WITH 3 UL OF I DOMAIN PROTEIN (20-30 MG/ML, 50 MM HEPES PH 7.0, 0.025% NA AZIDE). CRYSTALS WERE STABLIZED IN 100 MM NA ACETATE 5.0; 26% PEG6000 FOR DATA COLLECTION., vapor diffusion - sitting drop	Resolution 2.70 Å
1IDO I-DOMAIN FROM INTEGRIN CR3, MG2+ BOUND Deposited 1996-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 148–331（184 aa） Fragment：I-DOMAIN	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 1.70 Å
1JLM I-DOMAIN FROM INTEGRIN CR3, MN2+ BOUND Deposited 1996-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 143–334（192 aa） Fragment：I-DOMAIN	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1M1U AN ISOLEUCINE-BASED ALLOSTERIC SWITCH CONTROLS AFFINITY AND SHAPE SHIFTING IN INTEGRIN CD11B A-DOMAIN Deposited 2002-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 139–331（193 aa） Fragment：CD11b A-domain, Residues 123-315	Mutation：C128S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；15% PEG8K, 0.1M Tris-HCl 8.2, 5mM CaCl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.248
1MF7 INTEGRIN ALPHA M I DOMAIN Deposited 2002-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 144–335（192 aa） Fragment：I domain	Mutation：A318C	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.25 Å R-free 0.223
1N9Z INTEGRIN ALPHA M I DOMAIN MUTANT Deposited 2002-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 144–335（192 aa） Fragment：alpha M I domain	Mutation：C128A D132C K315C	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3000, sodium chloride, hepes, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.278
1NA5 INTEGRIN ALPHA M I DOMAIN Deposited 2002-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 144–335（192 aa） Fragment：Alpha M I domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；298 K；PEG 8000, sodium chloride, potassium citrate, pH 4.2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.50 Å R-free 0.228
2LKE Structures and Interaction Analyses of the Integrin Alpha-M Beta-2 Cytoplasmic Tails Deposited 2011-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1129–1152（24 aa） Fragment：C-terminal domain, UNP residues 1129-1152	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.6；308 K；Pressure ambient NMR sample composition 0.7 mM [1H] MYR-ALPHA-M-1, 200 mM [U-99% 2H] Dodecylphosphocholine-2, 10 mM sodium phosphate-3, 10 % [U-99% 2H] D2O-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.7 mM [1H] MYR-ALPHA-M-5, 200 mM [U-99% 2H] Dodecylphosphocholine-6, 10 mM sodium phosphate-7, 100 % [U-99% 2H] D2O-8, 100% D2O \| 100% D2O	Resolution not provided
2LKJ Structures and Interaction Analyses of the Integrin Alpha-M Beta-2 Cytoplasmic Tails Deposited 2011-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1129–1152（24 aa） Fragment：C-terminal domain, UNP residues 1129-1152	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.6；308 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 0.7 mM [1H] MYR-P-ALPHA-M-1, 200 mM [U-99% 2H] Dodecylphosphocholine-2, 10 mM sodium phosphate-3, 10 % [U-99% 2H] D2O-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.7 mM [1H] MYR-P-ALPHA-M-5, 200 mM [U-99% 2H] Dodecylphosphocholine-6, 10 mM sodium phosphate-7, 100 % [U-99% 2H] D2O-8, 100% D2O \| 100% D2O	Resolution not provided
3Q3G Crystal Structure of A-domain in complex with antibody Deposited 2010-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 148–337（190 aa） Fragment：UNP residues 148-337	Not recorded	EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 5 NA SODIUM ION × 1 CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；15% PEG4000, Tris pH 8.2, 0.3M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.244
3Q3G Crystal Structure of A-domain in complex with antibody Deposited 2010-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 148–337（190 aa） Fragment：UNP residues 148-337	Not recorded	EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 3 CA CALCIUM ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；15% PEG4000, Tris pH 8.2, 0.3M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.244
3Q3G Crystal Structure of A-domain in complex with antibody Deposited 2010-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 148–337（190 aa） Fragment：UNP residues 148-337	Not recorded	EDO 1,2-ETHANEDIOL × 1 NA SODIUM ION × 2 CA CALCIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；15% PEG4000, Tris pH 8.2, 0.3M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.244
3Q3G Crystal Structure of A-domain in complex with antibody Deposited 2010-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 148–337（190 aa） Fragment：UNP residues 148-337	Not recorded	EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 3 CA CALCIUM ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；15% PEG4000, Tris pH 8.2, 0.3M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.244
3QA3 Crystal Structure of A-domain in complex with antibody Deposited 2011-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 148–337（190 aa） Fragment：UNP residues 148-337	Mutation：I316G	EDO 1,2-ETHANEDIOL × 4 GOL GLYCEROL × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；13% PEG8000, Tris pH 8.2, 0.25M NaCl, 10mM CaCl2, 1mM PMSF, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.224
3QA3 Crystal Structure of A-domain in complex with antibody Deposited 2011-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 148–337（190 aa） Fragment：UNP residues 148-337	Mutation：I316G	GOL GLYCEROL × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；13% PEG8000, Tris pH 8.2, 0.25M NaCl, 10mM CaCl2, 1mM PMSF, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.224
3QA3 Crystal Structure of A-domain in complex with antibody Deposited 2011-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 148–337（190 aa） Fragment：UNP residues 148-337	Mutation：I316G	EDO 1,2-ETHANEDIOL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；13% PEG8000, Tris pH 8.2, 0.25M NaCl, 10mM CaCl2, 1mM PMSF, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.224
3QA3 Crystal Structure of A-domain in complex with antibody Deposited 2011-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 148–337（190 aa） Fragment：UNP residues 148-337	Mutation：I316G	EDO 1,2-ETHANEDIOL × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；298 K；13% PEG8000, Tris pH 8.2, 0.25M NaCl, 10mM CaCl2, 1mM PMSF, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.224
4M76 Integrin I domain of complement receptor 3 in complex with C3d Deposited 2013-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 143–337（195 aa） Fragment：unp residues 143-337	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；PEG 3350, pH 7, vapor diffusion, hanging drop, temperature 298K	Resolution 2.80 Å R-free 0.242
4XW2 Structural basis for simvastatin competitive antagonism of complement receptor 3 Deposited 2015-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–337（193 aa） Fragment：UNP residues 145-337	Not recorded	MG MAGNESIUM ION × 1 SIM Simvastatin acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.2 M sodium malonate pH 7.0, 20% (w/v) PEG 3350	Resolution 2.00 Å R-free 0.232
6RHW Crystal structure of human CD11b I-domain (CD11b-I) in complex with Staphylococcus aureus octameric bi-component leukocidin LukGH Deposited 2019-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain C 143–337（195 aa）	Not recorded	DMS DIMETHYL SULFOXIDE × 24 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；Crystallization drops were prepared by mixing 1.0 uL LukGH/huCD11b-I complex (5.2 mg/mL) in 25 mM HEPES (pH 7.5), 1 mM MgCl2 with 0.5 uL reservoir solution containing 30% (v/v) Jeffamine-600 and 10% (v/v) DMSO.	Resolution 2.75 Å R-free 0.281
7AKK Structure of a complement factor-receptor complex Deposited 2020-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 143–337（195 aa） Chain H 143–337（195 aa）	Mutation：C128S,I316G Mutation：C128S,I316G	GOL GLYCEROL × 3 K POTASSIUM ION × 2 MG MAGNESIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；100 mM Tris-HCl (pH 8.0), 8% (w/v) polyethylene glycol (PEG) 8000	Resolution 3.40 Å R-free 0.229
7P2D Structure of alphaMbeta2/Cd11bCD18 headpiece in complex with a nanobody Deposited 2021-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 17–772（756 aa）	Not recorded	CA CALCIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；1:1 ratio with reservoir containing 1.25 M sodium malonate, 76 mM HEPES pH 8.0, 24 mM HEPES pH 6.5, and 0.5% Jeffamine ED2001 pH 7.0	Resolution 3.20 Å R-free 0.295
7USL Integrin alphaM/beta2 ectodomain in complex with adenylate cyclase toxin RTX751 and M1F5 Fab Deposited 2022-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 17–1104（1088 aa）	Not recorded	CA CALCIUM ION × 33 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
7USM Integrin alphaM/beta2 ectodomain Deposited 2022-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–1104（1088 aa）	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8CE6 Crystal structure of human Cd11b I domain in P212121 space group Deposited 2023-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 149–337（189 aa）	Not recorded	SO4 SULFATE ION × 7 GOL GLYCEROL × 7 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.15M ammonium sulfate 25% PEG4000 15% glycerol	Resolution 1.58 Å R-free 0.208
8CE9 Crystal structure of human Cd11b I domain in C121 space group Deposited 2023-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 149–337（189 aa）	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；25% PEG Smear Medium 0.1M cacodylate pH 5.5 0.2M ammonium sulfate	Resolution 2.11 Å R-free 0.239
8CE9 Crystal structure of human Cd11b I domain in C121 space group Deposited 2023-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 149–337（189 aa）	Not recorded	SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；25% PEG Smear Medium 0.1M cacodylate pH 5.5 0.2M ammonium sulfate	Resolution 2.11 Å R-free 0.239
8VOH HADDOCK models of human alphaM I-domain bound to the the N-terminal domain of the cytokine pleiotrophin Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 147–340（194 aa） Fragment：I-domain, residues 147-340	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure 1 NMR sample composition 0.2 mM [U-13C; U-15N] human alphaM I-domain, 1 mM The N-terminal domain of pleiotrophin, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-15N] human alphaM I-domain, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-15N] The N-terminal domain of pleiotrophin, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8VOI HADDOCK models of active human alphaM I-domain bound to the the C-terminal domain of the cytokine pleiotrophin Deposited 2024-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 148–331（184 aa） Fragment：I-domain, residues 148-331	Not recorded	MG MAGNESIUM ION × 1	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure 1 NMR sample composition 0.3 mM [U-100% 13C; U-100% 15N] active human alphaM I-domain, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] The C-terminal Domain of Pleiotrophin, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM The C-terminal Domain of Pleiotrophin, 0.2 mM [U-100% 13C; U-100% 15N; U-80% 2H] active human alphaM I-domain, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
9GMU Structure ofhuman aM ligand binding domain in complex with the aCR3 nanobody Deposited 2024-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 145–337（193 aa） Fragment：UNP residues 145-337	Not recorded	MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；100 mM HEPES, pH 7.0, 1.5 M Li2S04.	Resolution 3.80 Å R-free 0.298
9GMU Structure ofhuman aM ligand binding domain in complex with the aCR3 nanobody Deposited 2024-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 145–337（193 aa） Fragment：UNP residues 145-337	Not recorded	MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；100 mM HEPES, pH 7.0, 1.5 M Li2S04.	Resolution 3.80 Å R-free 0.298
9RM9 Cryo-EM structure of alphaM/beta2 headpiece complex without alphaM I-domain - the consensus map from alphaM/beta2:C3d-anti-CR3-Nb headpiece complex Deposited 2025-06-18	Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–770（754 aa）	Not recorded	CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 2.60 Å
9RMA Cryo-EM structure of alphaM I-domain:C3d-anti-CR3-Nb complex focused refinement from the alphaM/beta2:C3d-anti-CR3-Nb headpiece complex Deposited 2025-06-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–770（754 aa）	Not recorded	MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 3.94 Å
9T3Y Cryo-EM structure of alphaM/beta2:C3d-anti-CR3-Nb headpiece complex (HPO2 3D class reconstruction) Deposited 2025-10-30	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 17–770（754 aa）	Not recorded	CA CALCIUM ION × 5 MN MANGANESE (II) ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 3.44 Å
9T5V Cryo-EM structure of alphaM/beta2:C3d-anti-CR3-Nb headpiece complex (HPO1 3D class reconstruction) Deposited 2025-11-06	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 17–773（757 aa）	Not recorded	CA CALCIUM ION × 5 MN MANGANESE (II) ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 3.06 Å
9T5Z Cryo-EM structure of alphaM/beta2:MEM148-Fab headpiece complex (without alphaM I-domain) Deposited 2025-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 17–771（755 aa）	Not recorded	CA CALCIUM ION × 5 MN MANGANESE (II) ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

30 other PDB entries and 38 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ITAM_HUMAN
Isoform	P11215-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–754； UniProt 17–770

Integrin beta-2

Homo sapiens

UniProt P05107

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 5 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 23–482	Not recorded	Isoform 2 of Integrin alpha-M × 1 （P11215） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 2.74 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9T5W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1L3Y INTEGRIN EGF-LIKE MODULE 3 FROM THE BETA-2 SUBUNIT Deposited 2002-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 535–574（40 aa） Fragment：RESIDUES 535-574	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.2；298 K；Ionic strength (raw mmCIF value) 5mM NaPO4；Pressure ambient NMR sample composition 1 mM I-EGF3 U-15N, 5 mM NaPO4 \| 90% H2O/10% D2O NMR sample composition 1 mM I-EGF3, 5 mM NaPO4 \| 100% D2O	Resolution not provided
1YUK The crystal structure of the PSI/Hybrid domain/ I-EGF1 segment from the human integrin beta2 at 1.8 resolution Deposited 2005-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–125（103 aa） Fragment：PSI domain Chain B 365–482（118 aa） Fragment：I-EGF domain	Not recorded	NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；18% PEG 8000, 0.2M calcium acetate, 0.1M Sodium cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.253
2JF1 CRYSTAL STRUCTURE OF THE FILAMIN A REPEAT 21 COMPLEXED WITH THE INTEGRIN BETA2 CYTOPLASMIC TAIL PEPTIDE Deposited 2007-01-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain T 735–769（35 aa） Fragment：RESIDUES 735-769	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；1.6-1.58 M AMMONIUM SULPHATE, 0.1 M NA-ACETATE PH 4.6	Resolution 2.20 Å R-free 0.278
2P26 Structure of the PHE2 and PHE3 fragments of the integrin beta2 subunit Deposited 2007-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–122（100 aa） Fragment：PHE2 and PHE3 Chain A 362–535（174 aa） Fragment：PHE2 and PHE3	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2M Magnesium acetate, 0.1M sodium acetate, pH4.6, 18% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.75 Å R-free 0.253
2P28 Structure of the PHE2 and PHE3 fragments of the integrin beta2 subunit Deposited 2007-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–122（100 aa） Fragment：PHE2 fragment Chain B 362–574（213 aa） Fragment：PHE3 fragment	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2M ammonium sulphate, 15% PEG4000, 5% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.308
3K6S Structure of integrin alphaXbeta2 ectodomain Deposited 2009-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–700（678 aa） Fragment：residues 23-700	Not recorded	MAN alpha-D-mannopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；277 K；0.55M tri-sodium citrate, 0.1M imidazole, pH 6.5, EVAPORATION, temperature 277K	Resolution 3.50 Å R-free 0.335
3K6S Structure of integrin alphaXbeta2 ectodomain Deposited 2009-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；277 K；0.55M tri-sodium citrate, 0.1M imidazole, pH 6.5, EVAPORATION, temperature 277K	Resolution 3.50 Å R-free 0.335
3K6S Structure of integrin alphaXbeta2 ectodomain Deposited 2009-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；277 K；0.55M tri-sodium citrate, 0.1M imidazole, pH 6.5, EVAPORATION, temperature 277K	Resolution 3.50 Å R-free 0.335
3K6S Structure of integrin alphaXbeta2 ectodomain Deposited 2009-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；277 K；0.55M tri-sodium citrate, 0.1M imidazole, pH 6.5, EVAPORATION, temperature 277K	Resolution 3.50 Å R-free 0.335
3K6S Structure of integrin alphaXbeta2 ectodomain Deposited 2009-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain B 23–700（678 aa） Fragment：residues 23-700 Chain D 23–700（678 aa） Fragment：residues 23-700 Chain F 23–700（678 aa） Fragment：residues 23-700 Chain H 23–700（678 aa） Fragment：residues 23-700	Not recorded	MAN alpha-D-mannopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12 CA CALCIUM ION × 16 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；277 K；0.55M tri-sodium citrate, 0.1M imidazole, pH 6.5, EVAPORATION, temperature 277K	Resolution 3.50 Å R-free 0.335
3K71 Structure of integrin alphaX beta2 ectodomain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.55M tri-sodium citrate, 0.05M MgCl2, 0.1M imidazole, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.95 Å R-free 0.373
3K71 Structure of integrin alphaX beta2 ectodomain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.55M tri-sodium citrate, 0.05M MgCl2, 0.1M imidazole, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.95 Å R-free 0.373
3K71 Structure of integrin alphaX beta2 ectodomain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.55M tri-sodium citrate, 0.05M MgCl2, 0.1M imidazole, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.95 Å R-free 0.373
3K71 Structure of integrin alphaX beta2 ectodomain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.55M tri-sodium citrate, 0.05M MgCl2, 0.1M imidazole, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.95 Å R-free 0.373
3K71 Structure of integrin alphaX beta2 ectodomain Deposited 2009-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain B 23–700（678 aa） Fragment：residues 23-700 Chain D 23–700（678 aa） Fragment：residues 23-700 Chain F 23–700（678 aa） Fragment：residues 23-700 Chain H 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15 CA CALCIUM ION × 16 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.55M tri-sodium citrate, 0.05M MgCl2, 0.1M imidazole, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.95 Å R-free 0.373
3K72 Structure of integrin alphaX beta2 Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；0.915M sodium/potassium phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.70 Å R-free 0.335
3K72 Structure of integrin alphaX beta2 Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 4 MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；0.915M sodium/potassium phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.70 Å R-free 0.335
3K72 Structure of integrin alphaX beta2 Deposited 2009-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain B 23–700（678 aa） Fragment：residues 23-700 Chain D 23–700（678 aa） Fragment：residues 23-700	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14 CA CALCIUM ION × 16 MAN alpha-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；0.915M sodium/potassium phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.70 Å R-free 0.335
4NEH An internal ligand-bound, metastable state of a leukocyte integrin, aXb2 Deposited 2013-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–696（674 aa） Fragment：CD18	Mutation：N190D, N232K, V674C	CA CALCIUM ION × 5 MG MAGNESIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CL CHLORIDE ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；297 K；6% PEG 8000, 0.2 M Mg acetate, 0.1 M Na cacodylate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 297K	Resolution 2.75 Å R-free 0.225
4NEN An internal ligand-bound, metastable state of a leukocyte integrin, aXb2 Deposited 2013-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–696（674 aa） Fragment：CD18	Mutation：N190D, N232K and V696C	CA CALCIUM ION × 5 MG MAGNESIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；297 K；6% PEG 8000, 0.2 M Mg acetate, 0.1 M Na cacodylate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 297K	Resolution 2.90 Å R-free 0.264
5E6R Structures of leukocyte integrin aLb2: The aI domain, the headpiece, and the pocket for the internal ligand Deposited 2015-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–482（460 aa） Fragment：UNP residues 23-482	Mutation：N232R	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES pH 6.5, 15% PEG 3350	Resolution 2.90 Å R-free 0.229
5E6S Structures of leukocyte integrin aLB2: The aI domain, the headpiece, and the pocket for the internal ligand Deposited 2015-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–482（460 aa） Fragment：UNP residues 23-482	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；277 K；0.1 M Tris, pH 8, 0.1 M NaCl, and 8% polyethylene glycol (PEG) 20,000	Resolution 2.15 Å R-free 0.234
5E6S Structures of leukocyte integrin aLB2: The aI domain, the headpiece, and the pocket for the internal ligand Deposited 2015-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–482（460 aa） Fragment：UNP residues 23-482	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；277 K；0.1 M Tris, pH 8, 0.1 M NaCl, and 8% polyethylene glycol (PEG) 20,000	Resolution 2.15 Å R-free 0.234
5E6S Structures of leukocyte integrin aLB2: The aI domain, the headpiece, and the pocket for the internal ligand Deposited 2015-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–482（460 aa） Fragment：UNP residues 23-482	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；277 K；0.1 M Tris, pH 8, 0.1 M NaCl, and 8% polyethylene glycol (PEG) 20,000	Resolution 2.15 Å R-free 0.234
5E6S Structures of leukocyte integrin aLB2: The aI domain, the headpiece, and the pocket for the internal ligand Deposited 2015-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 23–482（460 aa） Fragment：UNP residues 23-482 Chain D 23–482（460 aa） Fragment：UNP residues 23-482 Chain F 23–482（460 aa） Fragment：UNP residues 23-482	Not recorded	MG MAGNESIUM ION × 3 CA CALCIUM ION × 15 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；277 K；0.1 M Tris, pH 8, 0.1 M NaCl, and 8% polyethylene glycol (PEG) 20,000	Resolution 2.15 Å R-free 0.234
5E6U Structures of leukocyte integrin aLb2: The aI domain, the headpiece, and the pocket for the internal ligand Deposited 2015-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–482（460 aa） Fragment：UNP residues 23-482	Not recorded	MG MAGNESIUM ION × 2 CA CALCIUM ION × 4 CL CHLORIDE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Mg-formate dehydrate and 15% PEG 3350	Resolution 2.50 Å R-free 0.226
5E6V Re-refinement of the Crystal Structure of the Plexin-Semaphorin-Integrin Domain/Hybrid Domain/I-EGF1 Segment from the Human Integrin b2 Subunit Deposited 2015-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–125（103 aa） Fragment：UNP residues 23-125, 365-482 Chain A 365–482（118 aa） Fragment：UNP residues 23-125, 365-482	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å R-free 0.229
5E6W Re-refinement of the Crystal Structure of the Plexin-Semaphorin-Integrin Domain/Hybrid Domain/I-EGF1 Segment from the Human Integrin b2 Subunit Deposited 2015-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–122（100 aa） Fragment：UNP residues 23-122, 362-574 Chain A 362–574（213 aa） Fragment：UNP residues 23-122, 362-574	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.270
5E6X Re-refinement of the Crystal Structure of the Plexin-Semaphorin-Integrin Domain/Hybrid Domain/I-EGF1 Segment from the Human Integrin b2 Subunit Deposited 2015-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–122（100 aa） Fragment：UNP residues 23-122 and 362 535 Chain A 362–535（174 aa） Fragment：UNP residues 23-122 and 362 535	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.75 Å R-free 0.245
5ES4 RE-REFINEMENT OF INTEGRIN ALPHAXBETA2 ECTODOMAIN IN THE CLOSED/BENT CONFORMATION Deposited 2015-11-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–696（674 aa） Fragment：UNP residues 23-696	Not recorded	CA CALCIUM ION × 4 MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.55M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE, PH 6.5, EVAPORATION, TEMPERATURE 277K	Resolution 3.30 Å R-free 0.307
5ES4 RE-REFINEMENT OF INTEGRIN ALPHAXBETA2 ECTODOMAIN IN THE CLOSED/BENT CONFORMATION Deposited 2015-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–696（674 aa） Fragment：UNP residues 23-696	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.55M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE, PH 6.5, EVAPORATION, TEMPERATURE 277K	Resolution 3.30 Å R-free 0.307
5ES4 RE-REFINEMENT OF INTEGRIN ALPHAXBETA2 ECTODOMAIN IN THE CLOSED/BENT CONFORMATION Deposited 2015-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–696（674 aa） Fragment：UNP residues 23-696	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.55M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE, PH 6.5, EVAPORATION, TEMPERATURE 277K	Resolution 3.30 Å R-free 0.307
5ES4 RE-REFINEMENT OF INTEGRIN ALPHAXBETA2 ECTODOMAIN IN THE CLOSED/BENT CONFORMATION Deposited 2015-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 23–696（674 aa） Fragment：UNP residues 23-696	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.55M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE, PH 6.5, EVAPORATION, TEMPERATURE 277K	Resolution 3.30 Å R-free 0.307
5XR1 Structure of FLN IG21 domain in complex with C-terminal peptide of beta-2 Deposited 2017-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 752–763（12 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.2；298 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition 300 uM [U-13C; U-15N] FLN IG21 domain, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5ZAZ Solution structure of integrin b2 monomer tranmembrane domain in bicelle Deposited 2018-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 689–739（51 aa）	Mutation：C695S	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；303 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.6 mM [U-13C; U-15N] integrin b2, 20 mM Bis-Tris, 240 mM DHPC, 48 mM POPC, 24 mM POPG, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
9ECL Structure of the human integrin beta2 transmembrane domain Deposited 2024-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 696–735（40 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；313.2 K；Ionic strength (raw mmCIF value) 0.025；Pressure 1 NMR sample composition 1.2 mM [U-100% 13C; U-100% 15N; U-80% 2H] alphaX peptide, 350 mM 1,2-dihexanoyl-sn-glycero-3-phosphoholine, 105 mM 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine, 25 mM HEPES, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
9RM9 Cryo-EM structure of alphaM/beta2 headpiece complex without alphaM I-domain - the consensus map from alphaM/beta2:C3d-anti-CR3-Nb headpiece complex Deposited 2025-06-18	Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–482（460 aa）	Not recorded	CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 2.60 Å
9T3Y Cryo-EM structure of alphaM/beta2:C3d-anti-CR3-Nb headpiece complex (HPO2 3D class reconstruction) Deposited 2025-10-30	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–482（460 aa）	Not recorded	CA CALCIUM ION × 5 MN MANGANESE (II) ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 3.44 Å
9T5V Cryo-EM structure of alphaM/beta2:C3d-anti-CR3-Nb headpiece complex (HPO1 3D class reconstruction) Deposited 2025-11-06	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–485（463 aa）	Not recorded	CA CALCIUM ION × 5 MN MANGANESE (II) ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；0.02 % w/v CHAPS added to sample just before vitrification	Resolution 3.06 Å
9T5Z Cryo-EM structure of alphaM/beta2:MEM148-Fab headpiece complex (without alphaM I-domain) Deposited 2025-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–485（463 aa）	Not recorded	CA CALCIUM ION × 5 MN MANGANESE (II) ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

24 other PDB entries and 40 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ITB2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–460； UniProt 23–482

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

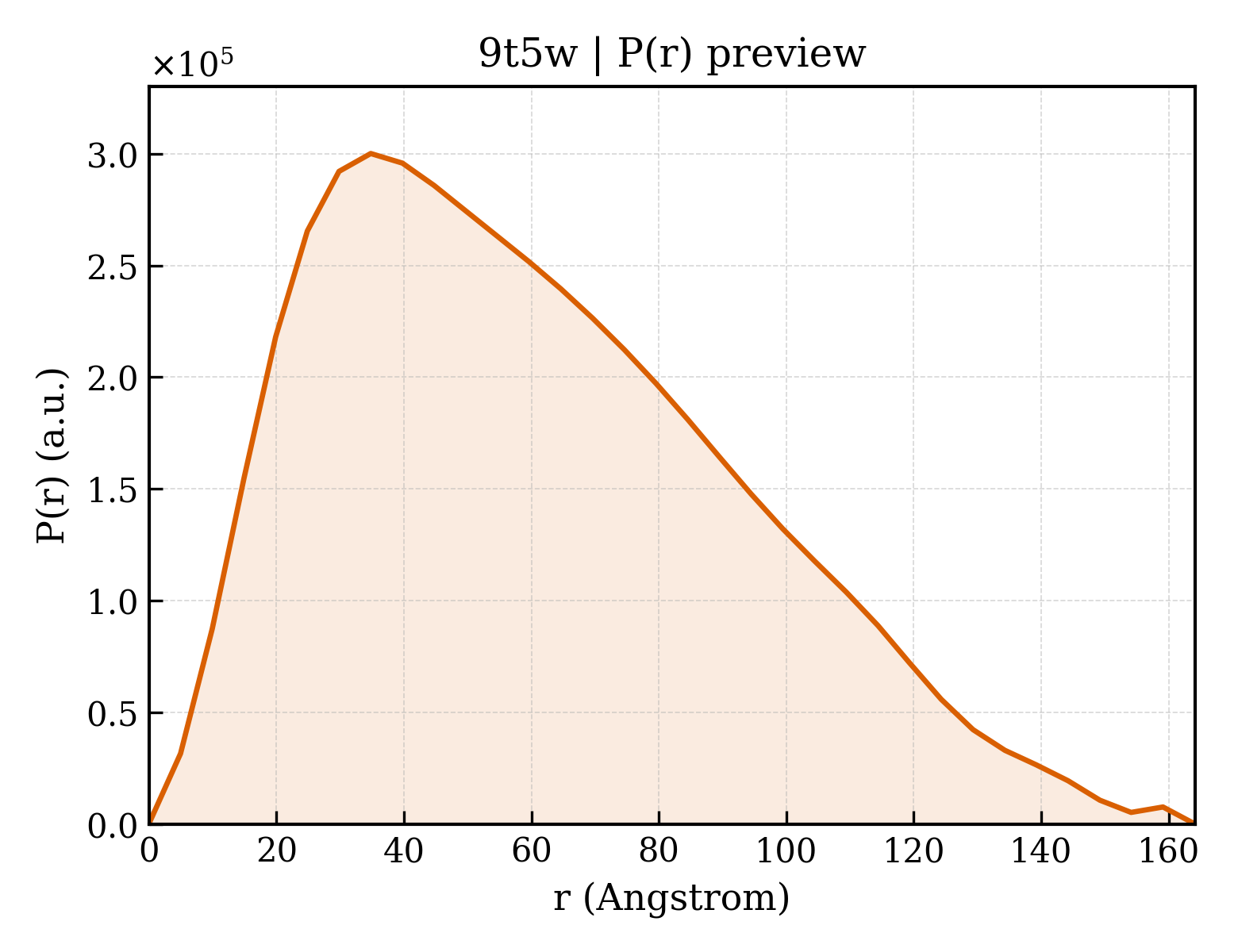

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9t5w
Deposition date deposition_date	2025-11-06
Structure title title	Cryo-EM structure of mutant R61H alphaM/beta2 headpiece complex
Keywords keywords	phagocytosis, integrin, opsonisation, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.61 Å
Radius of gyration Rg (electron density) rg_electron	48.02 Å
Forward intensity I(0) i0	300139000.00
Molecular weight molecular_weight	137540.0 kDa
Excluded volume excluded_volume	170680 Å³
Envelope volume envelope_volume	247110 Å³
Hydration-shell volume shell_volume	48833 Å³
Envelope diameter envelope_diameter	175.0 Å
Shell Rg shell_rg	43.23 Å
Envelope Rg envelope_rg	49.90 Å
Shape Rg shape_rg	47.94 Å
Total Rg total_rg	48.06 Å
Total atoms total_atoms	19071
Residues n_residues	1210
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	164.1 Å
Rg (real space) rg_real	48.32 Å
Rg uncertainty (real space) rg_real_error	2.08 Å
I(0) (real space) i0_real	3.0010e+08
I(0) uncertainty (real space) i0_real_error	6.6960e+06
Rg (reciprocal space) rg_reciprocal	47.61 Å
I(0) (reciprocal space) i0_reciprocal	299900000.0000
Solution quality estimate total_estimate	0.7860
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.8 Å
Skewness Skewness skewness	0.533
Kurtosis Kurtosis kurtosis	-0.392
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19170000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.658; Smooth: 0.404

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Isoform 2 of Integrin alpha-M
Molecular weight formula_weight	83970.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	19078

FNLDTENAMTFQENARGFGQSVVQLQGSRVVVGAPQEIVAANQRGSLYQCDYSTGSCEPIHLQVPVEAVNMSLGLSLAATTSPPQLLACGPTVHQTCSENTYVKGLCFLFGSNLRQQPQKFPEALRGCPQEDSDIAFLIDGSGSIIPHDFRRMKEFVSTVMEQLKKSKTLFSLMQYSEEFRIHFTFKEFQNNPNPRSLVKPITQLLGRTHTATGIRKVVRELFNITNGARKNAFKILVVITDGEKFGDPLGYEDVIPEADREGVIRYVIGVGDAFRSEKSRQELNTIASKPPRDHVFQVNNFEALKTIQNQLREKIFAIEGTQTGSSSSFEHEMSQEGFSAAITSNGPLLSTVGSYDWAGGVFLYTSKEKSTFINMTRVDSDMNDAYLGYAAAIILRNRVQSLVLGAPRYQHIGLVAMFRQNTGMWESNANVKGTQIGAYFGASLCSVDVDSNGSTDLVLIGAPHYYEQTRGGQVSVCPLPRGQRARWQCDAVLYGEQGQPWGRFGAALTVLGDVNGDKLTDVAIGAPGEEDNRGAVYLFHGTSGSGISPSHSQRIAGSKLSPRLQYFGQSLSGGQDLTMDGLVDLTVGAQGHVLLLRSQPVLRVKAIMEFNPREVARNVFECNDQVVKGKEAGEVRVCLHVQKSTRDRLREGQIQSVVTYDLALDSGRPHSRAVFNETKNSTRRQTQVLGLTQTCETLKLQLPNCIEDPVSPIVLRLNFSLVGTPLSAFGNLRPVLAEDAQRLFTALFPFEKNTGGENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Integrin beta-2
Molecular weight formula_weight	52281.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QECTKFKVSSCRECIESGPGCTWCQKLNFTGPGDPDSIRCDTRPQLLMRGCAADDIMDPTSLAETQEDHNGGQKQLSPQKVTLYLRPGQAAAFNVTFRRAKGYPIDLYYLMDLSYSMLDDLRNVKKLGGDLLRALNEITESGRIGFGSFVDKTVLPFVNTHPDKLRNPCPNKEKECQPPFAFRHVLKLTNNSNQFQTEVGKQLISGNLDAPEGGLDAMMQVAACPEEIGWRNVTRLLVFATDDGFHFAGDGKLGAILTPNDGRCHLEDNLYKRSNEFDYPSVGQLAHKLAENNIQPIFAVTSRMVKTYEKLTEIIPKSAVGELSEDSSNVVHLIKNAYNKLSSRVFLDHNALPDTLKVTYDSFCSNGVTHRNQPRGDCDGVQINVPITFQVKVTATECIQEQSFVIRALGFTDIVTVQVLPQCECRCRDQSRDRSLCHGKGFLECGICRCDTGYIGKNCEPAAENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.740 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.74 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	367572

fit	/app/data/saxs_computation/t5/9t5w/9t5w.fit
pddf	/app/data/pr_computation/t5/9t5w/9t5w.pr.out
profile	/app/data/saxs_computation/t5/9t5w/9t5w.dat

Cryo-EM structure of mutant R61H alphaM/beta2 headpiece complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 2 of Integrin alpha-M

State in the Current Structure

Other States of the Same Protein in the Database

Integrin beta-2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 branched

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
