9t6s
Crystal Structure of the Listeria monocytogenes CadC with Cadmium
SAXS Profile

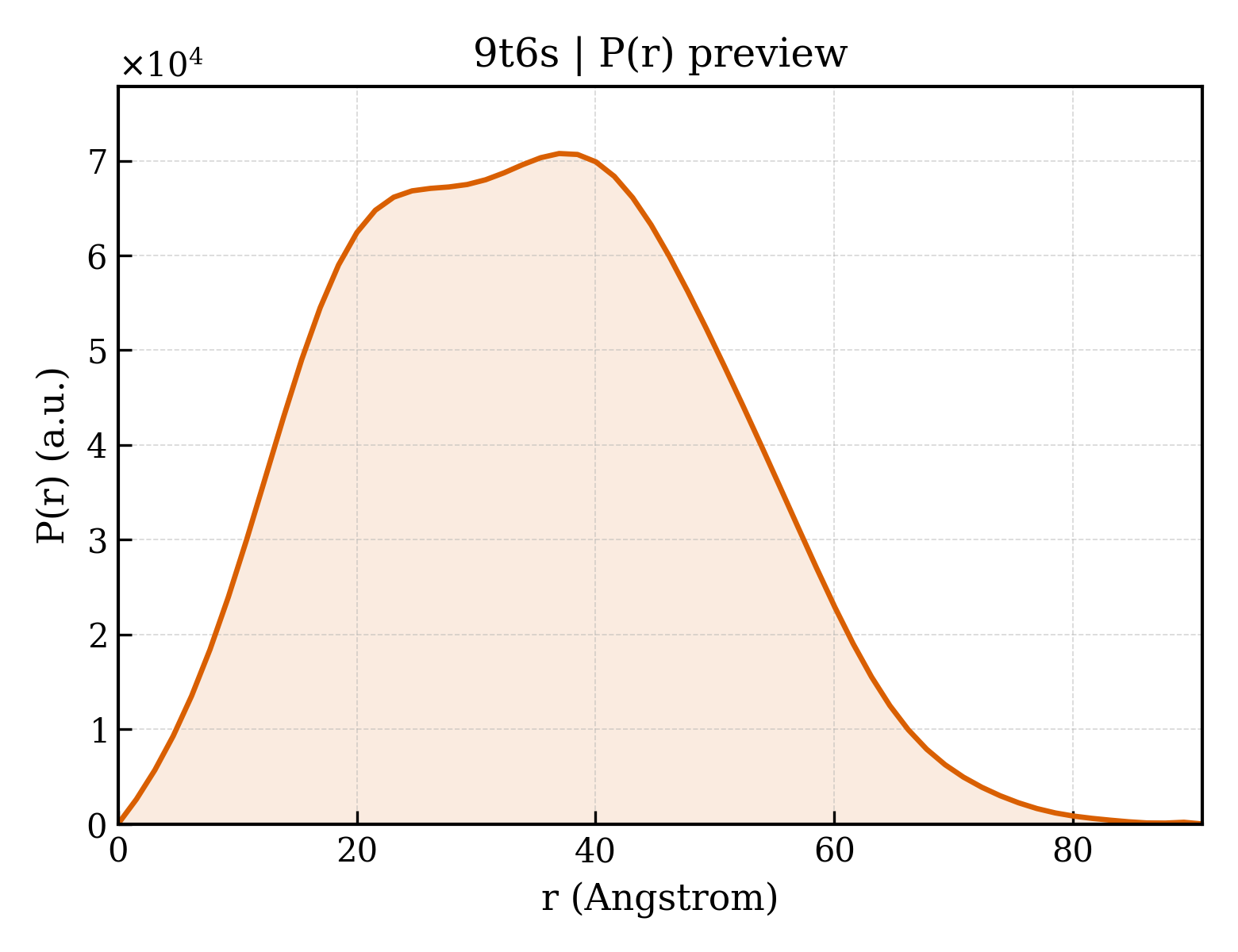

P(r) Distribution
1. Structure Basics
| entry_id | 9t6s |
| deposition_date | 2025-11-07 |
| last_revision | 2026-05-06 |
| title | Crystal Structure of the Listeria monocytogenes CadC with Cadmium |
| keywords | Metal-responsive transcriptional repressor, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.84 Å |
| rg_electron | 25.76 Å |
| i0 | 38712500.00 |
| molecular_weight | 50124.0 kDa |
| excluded_volume | 63742 ų |
| envelope_volume | 77698 ų |
| shell_volume | 25497 ų |
| envelope_diameter | 97.4 Å |
| shell_rg | 32.40 Å |
| envelope_rg | 25.55 Å |
| shape_rg | 25.65 Å |
| total_rg | 26.91 Å |
| total_atoms | 3477 |
| n_residues | 443 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 90.8 Å |
| rg_real | 26.79 Å |
| rg_real_error | 0.72 Å |
| i0_real | 3.8710e+07 |
| i0_real_error | 6.1940e+05 |
| rg_reciprocal | 26.81 Å |
| i0_reciprocal | 38710000.0000 |
| total_estimate | 0.6724 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 37.0 Å |
| skewness | 0.207 |
| kurtosis | -0.527 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9877000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 0.089; Positv: 1.000; Valcen: 0.919; Smooth: 0.986 |
