SAXSdb — 9u0g

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine/threonine-protein kinase BRI1-like 2

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 3	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRL2_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–733； UniProt 1–733 Author chain B； PDBConstruct 1–733； UniProt 1–733

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9u0g
Deposition date deposition_date	2026-01-27
Last revision last_revision	2026-02-25
Structure title title	Crystal structure of the apo BRL2 ectodomain from Arabidopsis thaliana (monoclinic crystal form).
Keywords keywords	membrane receptor kinase, leucine-rich repeat, steroid receptor, brassinosteroid, island domain, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9u0g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

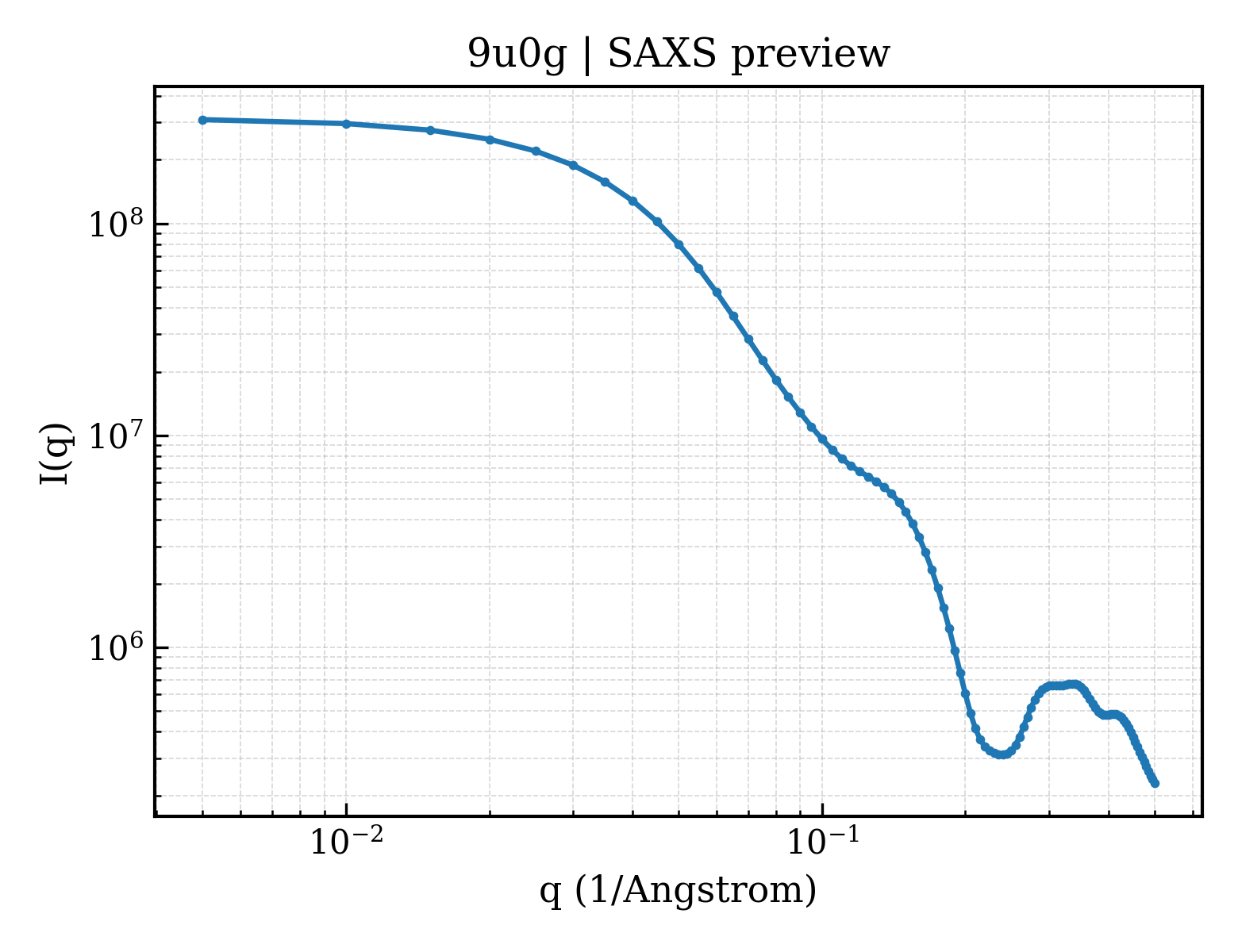

9u0g__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

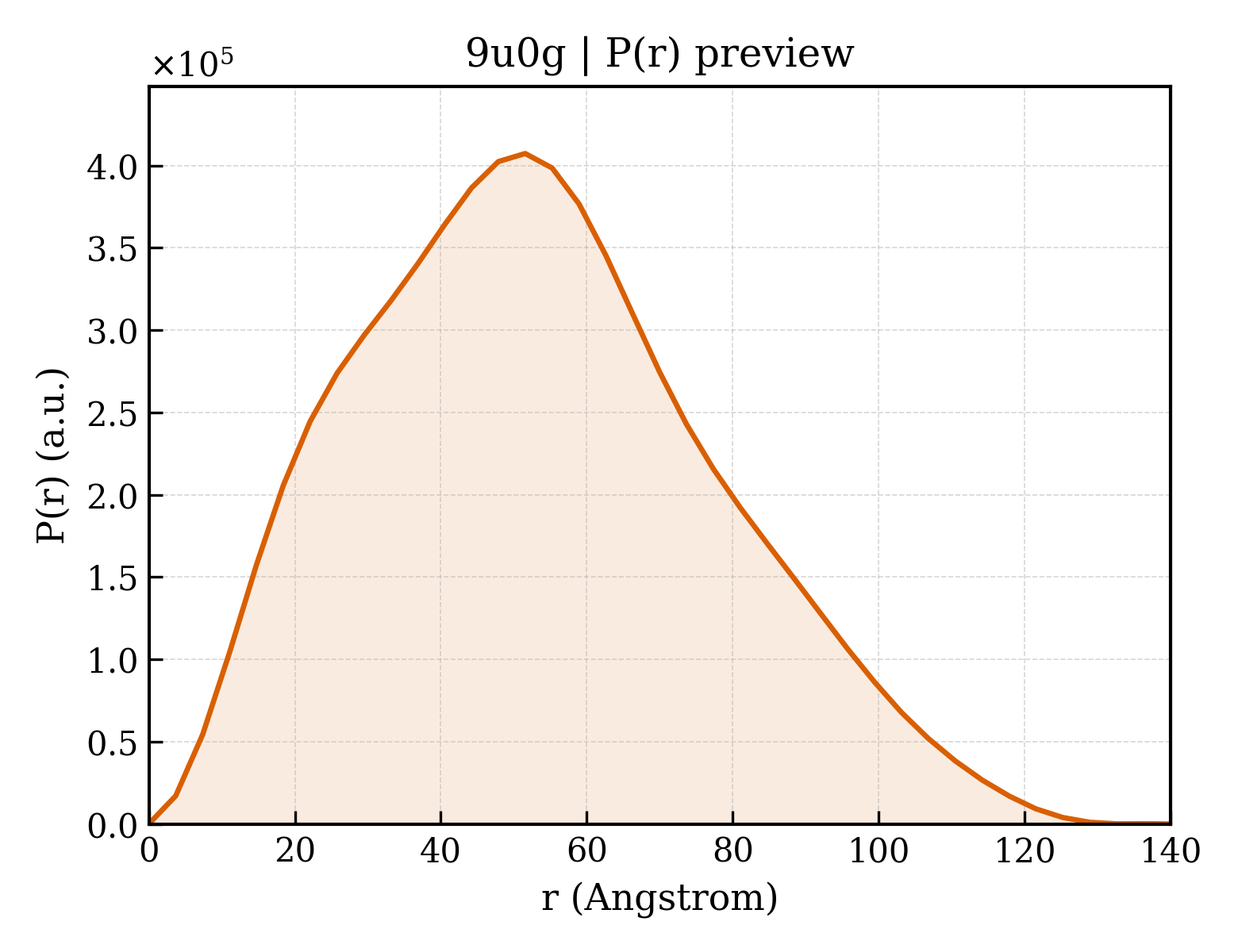

9u0g__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.81 Å
Rg (electron density)	34.18 Å
Total Rg	34.83 Å
Atom count	5154
Residues	659
Excluded volume	92153 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9u0g__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9u0g__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Serine/threonine-protein kinase BRI1-like 2
Molecular weight formula_weight	85615.6 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10366

MTTSPIRVRIRTRIQISFIFLLTHLSQSSSSDQSSLKTDSLSLLSFKTMIQDDPNNILSNWSPRKSPCQFSGVTCLGGRVTEINLSGSGLSGIVSFNAFTSLDSLSVLKLSENFFVLNSTSLLLLPLTLTHLELSSSGLIGTLPENFFSKYSNLISITLSYNNFTGKLPNDLFLSSKKLQTLDLSYNNITGPISGLTIPLSSCVSMTYLDFSGNSISGYISDSLINCTNLKSLNLSYNNFDGQIPKSFGELKLLQSLDLSHNRLTGWIPPEIGDTCRSLQNLRLSYNNFTGVIPESLSSCSWLQSLDLSNNNISGPFPNTILRSFGSLQILLLSNNLISGDFPTSISACKSLRIADFSSNRFSGVIPPDLCPGAASLEELRLPDNLVTGEIPPAISQCSELRTIDLSLNYLNGTIPPEIGNLQKLEQFIAWYNNIAGEIPPEIGKLQNLKDLILNNNQLTGEIPPEFFNCSNIEWVSFTSNRLTGEVPKDFGILSRLAVLQLGNNNFTGEIPPELGKCTTLVWLDLNTNHLTGEIPPRLGRQPGSKALSGLLSGNTMAFVRNVGNSCKGVGGLVEFSGIRPERLLQIPSLKSCDFTRMYSGPILSLFTRYQTIEYLDLSYNQLRGKIPDEIGEMIALQVLELSHNQLSGEIPFTIGQLKNLGVFDASDNRLQGQIPESFSNLSFLVQIDLSNNELTGPIPQRGQLSTLPATQYANNPGLCGVPLPECKNGNNQAAAENLYFQGSAWSHPQFEKGGGSGGGSGGSAWSHPQFEKGAHHHHHHHHH

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	47

▶

Unit-cell length a length_a	151.900 Å
Unit-cell length b length_b	211.610 Å
Unit-cell length c length_c	67.170 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	112.61 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	63.910 Å
R factor r_factor	0.2320
R_work r_work	0.2306
R_free r_free	0.2591

Crystal structure of the apo BRL2 ectodomain from Arabidopsis thaliana (monoclinic crystal form).
