9uap

cryo-EM structure of ligand-free active-state M1 muscarinic acetylcholine receptor with alpha5 helix of G11 protein complex

Method: ELECTRON MICROSCOPY D_max: 87.0 Å Quality: GOOD

SAXS Profile

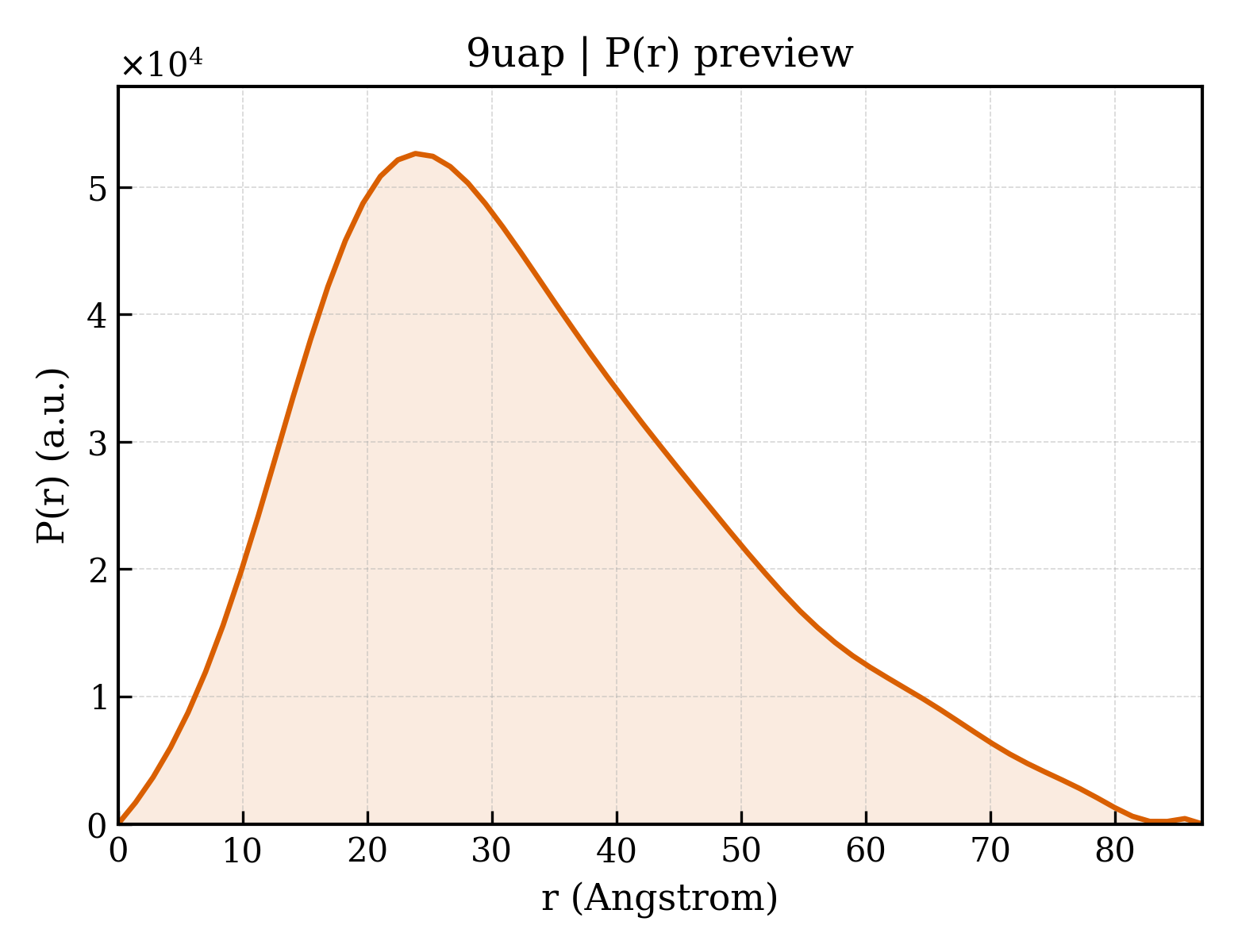

P(r) Distribution

▼

1. Structure Basics

entry_id	9uap
deposition_date	2025-04-01
title	cryo-EM structure of ligand-free active-state M1 muscarinic acetylcholine receptor with alpha5 helix of G11 protein complex
keywords	GPCR, active-state, ligand-free, de novo protein, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.60 Å
rg_electron	25.17 Å
i0	24479600.00
molecular_weight	38395.0 kDa
excluded_volume	48345 Å³
envelope_volume	63395 Å³
shell_volume	22595 Å³
envelope_diameter	88.5 Å
shell_rg	30.66 Å
envelope_rg	25.53 Å
shape_rg	25.17 Å
total_rg	25.90 Å
total_atoms	2718
n_residues	399
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	87.0 Å
rg_real	25.82 Å
rg_real_error	0.74 Å
i0_real	2.4480e+07
i0_real_error	3.1560e+05
rg_reciprocal	25.75 Å
i0_reciprocal	24480000.0000
total_estimate	0.8342
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	23.9 Å
skewness	0.591
kurtosis	-0.166
angular_range	— – 0.3100 Å⁻¹
current_alpha	0.0000
highest_alpha	8385000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.721; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.851; Smooth: 0.827

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	M1 muscarinic acetylcholine receptor, de novo design protein
formula_weight	42070.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2718

VAFIGITTGLLSLATVTGNLLVLISFKVNTELKTVNNYFLLSLACADLIIGTFSMNLYTTYLLMGHWALGTLACDLWLALDYVASNASVMNLLLISFDRYFSVTRPLSYRAKRTPRRAALMIGLAWLVSFVLWAPAILFWQYLVGERTVLAGQCYIQFLSQPIITFGTAMAAFYLPVTVMCTLYWRIYRETKRAGERLAKLLEKFEALPLEDIVAALKALLATNRPEIQLAVKTIVENFPEIKKEAEKLTPEQKAKLAALEAQLADLPEELRKVLLSMYLTGLLYGGSEENRKRAIEKAARTLSAILLAFILTWTPYNIMVLVSTFCKDCVPETLWELGYWLCYVNSTINPMCYALCNKAFRDTFRLLLLCR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein subunit alpha-11
formula_weight	3152.7 kDa
ec_number	3.6.5.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

TPENIRFVFAAVKDTILQLNLKEYNLV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.62 Å
resolution_method	—
num_particles	155176

fit	/app/data/saxs_computation/ua/9uap/9uap.fit
pddf	/app/data/pr_computation/ua/9uap/9uap.pr.out
profile	/app/data/saxs_computation/ua/9uap/9uap.dat
