9ubx

The atomic coordinates of the mouse CatSper trimer

Method: ELECTRON MICROSCOPY D_max: 308.9 Å Quality: EXCELLENT

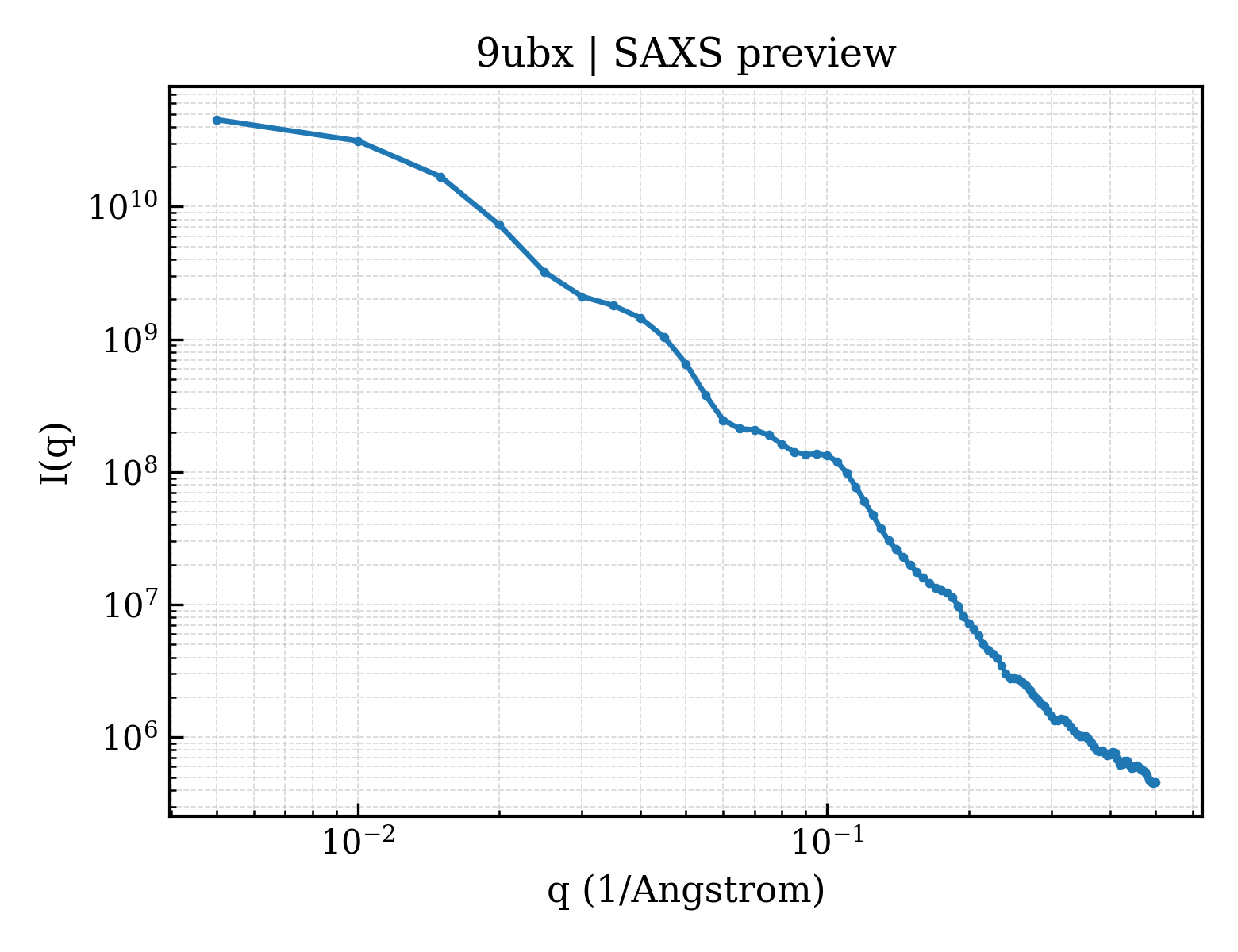

SAXS Profile

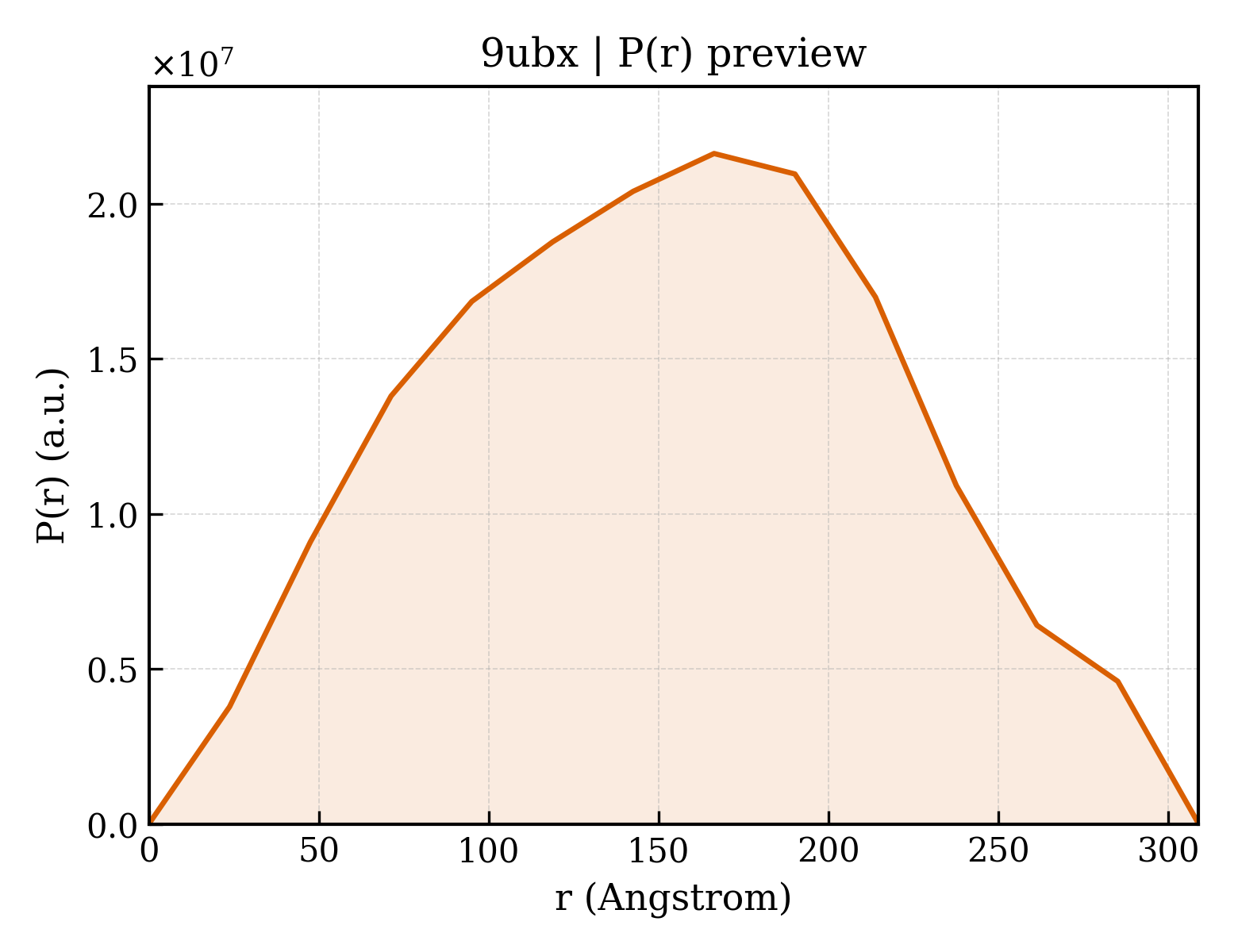

P(r) Distribution

▼

1. Structure Basics

entry_id	9ubx
deposition_date	2025-04-03
title	The atomic coordinates of the mouse CatSper trimer
keywords	sperm, hyperactivation, calcium channel, PROTEIN TRANSPORT; PROTEIN TRANSPORT
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	— Å
rg_electron	120.20 Å
i0	51161700000.00
molecular_weight	2052500.0 kDa
excluded_volume	2609200 Å³
envelope_volume	5427200 Å³
shell_volume	371040 Å³
envelope_diameter	395.1 Å
shell_rg	123.00 Å
envelope_rg	114.00 Å
shape_rg	120.30 Å
total_rg	120.10 Å
total_atoms	144816
n_residues	18063
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	308.9 Å
rg_real	116.90 Å
rg_real_error	0.82 Å
i0_real	4.9020e+10
i0_real_error	9.5960e+08
rg_reciprocal	121.00 Å
i0_reciprocal	51020000000.0000
total_estimate	0.9057
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	166.3 Å
skewness	0.021
kurtosis	-0.734
angular_range	— – 0.0650 Å⁻¹
current_alpha	0.8239
highest_alpha	3092000000.0000
n_real_points	14
gnom_version	4.1.3
quality_criteria	AN1: 0.001; Oscil: 0.996; Stabil: 0.970; Sysdev: 1.000; Positv: 1.000; Valcen: 0.877; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (21)

Entity 1 polymer

description	Cation channel sperm-associated protein 1
formula_weight	29080.7 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,n,a
atom_count	144816

LLGLQQMILSLTQSLGFETFIFIVVCLNTVILVAQTFTELEIRGEWYFMVLDSIFLSIYVLEAVLKLIALGLEYFYDPWNNLDFFIMVMAVLDFVLLQINSLSYSFYNHSLFRILKVFKSMRALRAIRVLRRLSILTSLHEVAGTLSGSLPSITAILTLMFTCLFLFSVVLRALFQDSDPKRFQNIFTTLFTLFTMLTLDDWSLIYIDNRAQGAWYIIPILMIYIVIQYFIFLNLVIAVLVDNFQMALLKG

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 2 polymer

description	Cation channel sperm-associated protein 2
formula_weight	33115.5 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	B,o,b

PLSLWAGWVLDSSVFSKFIISLIFLNTFVLMVEIELMESTNTALWPVKLALEVADWFILLSFIVEILLMWLASFSLFWKDAWNVFDFFVTLLSLLPELVVLLGVPAHSVWLQLLRVCRVLRSLKLFARFRQIKVILLALVRALKSMTFLLMLLLIFFYIFAVTGVYFFREYSRSTIEGLEYNMFFSDLLNSLVTVFILFTLDHWYAVLQDIWKVPESSRVFSSIYVILWLLLGSIIFRNIIVAMMVTNFQNIRSELSEEMSHLEVQYKADMFKQQIIQRRQ

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 3 polymer

description	Cation channel sperm-associated protein 3
formula_weight	32308.9 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,p,c

ECQAYFRKVIKSTFFQIVMITTVTTNSFLLVLGTNYDIQFEFFRTFEVSELFFVSVYVCEFLMKVYVDPITYWKDGYNILDVIILIILTIPYLLRKIKGNHSAYLHFADGIQSLRILKLISYSRGIRTLIIAVGETVYTVASVLTLLFLLMFVFAILGFCLFGVTDRGDLENWGNLASAFFTLFSLATVDGWTDLQEELDKRKFTVSRAFTILFILLASFIFLNMFVGVMIMHTEDSMKKFERDLTLERNLAIMEEKQIILKRQQEEVNRLMNTQKSG

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 4 polymer

description	Cation channel sperm-associated protein 4
formula_weight	28880.4 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	D,q,d

DVMEKKDAWDVQEFITQMYIKQLLRHPAFQLLLAFLLLSNAITIALRTNSYLGQKHYELFSTIDDIVLTILICEVLLGWLNGFWIFWKDGWNILNFAIVFILFMGFFIKQLDMVAITYPLRVLRLVHVCMAVEPLARIIKVILQSMPDLANVMALILFFMLVFSVFGVTLFGAFVPKHFQNMGVALYTLFICITQDGWLDIYTDFQMDEREYAMEVGGAIYFAVFITLGAFIGLNLFVVVVTTNLEQMMK

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 5 polymer

description	Cation channel sperm-associated auxiliary subunit beta
formula_weight	121580.6 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	E,r,e

VIHNKGKERTYFSCSGEGILTGLHTIKLFLTMDNLKVRCFFRNENQSPSKEILGLFTSGGLAPNMIITNSTFYGGYYFKLTPFSNRLEWLIDIPRQNITVNTDIAAVEQWMIKITMHEGLNIYDTEGTLLDLVREPILQWNLGRVLTEMEVRDLYPEVNDIKVTKSPCANDVALIGFMMKPSSNGVFIGKTISGFWTYKECIWHDLTEIIYAELKDEHQGLTVIDLVLTNHFLVILTSLGLYVSSDLRYPTTSQIKLSRAEFCGFERVDYIRGNLWYNEKCFANRESFEVDYVTITFNRNRTLSESSSCFFSKEPFLHWLPCVFSTIKNEKSIPRVITFLIDQETDSGIYLFNVQDTKETYVTVAMLKDGKPSPRPKFPSFHFPSTFTLPLGMIFHPRSHFLYVYGSQIWVSMDGGNTFEMLCNLFSHHVTKTSNSFYTSDIVFIVEDGRILTTKAGLTTYSELGILKDAIFTLYYDQLGYIHKLTPENFDAGSKLLGHGNSGSIFGKRPDLGFEAILVPQYISTNEMYFFAHVPLTMPTNIQWKKRFKTIHLGKTIEFSKTGLANIKNVYMHKTEPVGFQTSIHTEIIVPFGIENSKDSPCLLSDLEITYSGKLYYTIKLLSKNPLHELKSTDVEKSVLIPGYSSFLIMNITDKWTASALATMPQAIKSNLKFLTGSWFLYNFGTAGGRKWSISTRQCNYWIQQDSLDFMSLNLVKYIDVGNTIDFQFKIIPKAMSTFPIPPVSMVVGNPGLVEVKTQGVFDLNENYYLDIHVSGRFFQKGSTSIALVLWEGSSKCYAITLLPTIKSSCSYLRTMHHTPGRHIPPEDWISGVHKDSQGFNMIKTLPINYRPPSHMGISIPLTDNFYHADPSKPIPRNQFHKSKETGKYKQCANVTSRAMCNCSEHQKFSHAVAFSDCKEKVHRFKFPVTQYPVVLEIFNERDKISAEPPYLVTMTEVNMRKNWQLKHNEPENVKKMKHYLEPLLKTPVYNPLGLNLTIQGSELFHFKVSVVPGVSFCELSEEFQIYVDEVPLPFPGHALIAVATSVVLGVLIFIAFVFQLRNIH

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 6 polymer

description	Cation channel sperm-associated auxiliary subunit gamma 2
formula_weight	119864.4 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	F,f,s

HCTWLLVLNKFEKVGLHLSKDRFQDHEPIDTVAKVFQKLTDSPIDPSENYLSFPYYLQINFSCPGQNIEELARKGHLMGMKPMVQINYMYSVNFYRWEMENVQILMEAAPMRSTGYCPAEAMCVLNWYTPMPFKNGSVVSSVDIYTNGIGPFVSKKRFYVNMNGFLKRDASGKSLFAIGYESLVLKSSHFRLSKSRPLWYTVNHAPVFILGGFYDEKSILFSDSNFQDYVLLELSIDSCWVGSFYCPILGFSATIHDAIATESTLFIRQNQLVYYFTGTYITLFDKSHGSSRWVRVLPSECIKRLCPVYASGNGSEYVLALTTGKNEGYIHIGTITDGLVSFEMVPDGWSVCEKLPGKNCSIDWATYIADERNLLLLVKIDSGQFYLVNFNTEFKTLNILYKIPEFIPEAKELDFLVLLDTVTYTNTPMTPKGLFFNTLNNMLYIWGNFILQSYNREEFIFLADFPKESTIKYMVNSFKGQMAVVTENEEIWYFLEGGYDVYQVVPSQGWETYHNLQKMQKSSFHSEDESLVSLFFEDGKLFQLVYLFDVGKERLVKRLLPVGTLMEYNLPKPFTVVNQGNYQAISFTHTCPFKEIHLIDVPKKHHASRTESYVALPPLVSESLGFHNNNTLAVYQGLVYYLLWLHSKYDKPYADPVHDPTWRWWQHKTKDKDYFFYLFSNRLAAEGIYINMNAYQKLYNMSGDYGIPDLFFLDKGNWFTITVVLLSHQDTFTSSDSQGPTINVDKKLAIAVTIADPECLSVTVTQDVLLNRNAVINKIKVIDKKRCSEQGMIGRNIKKTSMMLKVLGAPGNCIQRTYLGGIIQGFKVVPIFIGCPPGKRLAFDVSYTIMHSEEINKHYFDCVIKDAEMPCFLFRDLFQPFFLVQDLVTGDSGSFLGSYVLKVVGGGRTLNTIRDYTEEEIFRYNSPLDTTNSLIWKTKVERTTEDKKFYIMSHESPGVEWLCLENSPCYDIIPQSIYPPEFFFKLLVSNRGVDNSTYCDYKLTFIVHIHGLPLSSKRTSFIVMVSTSFFIALVVFYILFCL

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 7 polymer

description	Cation channel sperm-associated auxiliary subunit delta
formula_weight	82834.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	G,t,g

HTLCRVHTVRTGKVFKSNIQLQGDPLFYAFPNTFVLKNVCKADISVYLGQKVFLTIDNFESSLLPLTVPKSLAVGVPSITSAHFVSGSLVLFVISGKGYSYDYYENTWRKLEGISEPVSHISGDVCCFKGSFCLELSNNLFAYLRGGQIPGTNIYFSDNGGFSFQLMNTDKLSHLTGTLGGIFHLHSMSQVGVLMVENNLGTFHYMEYPLNHSMGIAFSYKNLLEVIMKPYQRGFMVLWNQKSILVSSNSGQIVEHVRLIDQKIFTDLDVEHANINIYSVASNAYELAFLVAEDHLYYGSQSYMGTYVIKLPHQPLWSTHTSIYFEDIGILQVLTPVADPHFAAYDFDKCTVNVQSSLMDEKLALQPCNVELLESTMINTMFTIDMNSKLKLSALMIPRKGENPTPLVMVSNPHALGFKANLNEFGNTFDGNSKYKLDIELKQQHHWGNSDFNFTASIKRHAISSVTVDIADKTLSCVDLKPLSTLISVGCDMTKKIVVQNKISACTMGILNPVQLQKNYTYTIEKEAYDPINHNGEAQDDLIVFYEYKDLGCPRLVYYDKPWKPVVELWKNGIVEEIMNAEYVISEINGLVTYSYSLTAATANCRSQPQNWSTFESDIENEEPFLWNRENYVSCHEDNKDNPLLWPNVEYQVLGGQTNNKIIFGQRNGIYTFHLSVVDPYYSYCNLNTIFSVYVHGALPVTKFQPLLTILLMVTTTLLTAWLAYAIPKQLRS

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 8 polymer

description	Cation channel sperm-associated auxiliary subunit epsilon
formula_weight	107004.0 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,u,h

LWRYYINSQDYSIFSTRSSIKLEYEGNSFVSWKIPESCKVENTTSPKTTLHCKRAGIHTIKPIAGNQEVERHLTVDNSYICYLWYFTVVDVYYNLSQIVTIWVYDPESASTEELIWTAKKPSLSSRVLTKQMNTLGQRPFIFTVEKRLTYHPGPLTSEGTWVIHLPMSSDDIAKVIRGNKVAFQDCFIANLYFMLTYPMTIISEPPGYEPLTVPPGSPLMLSWDTCISTFALLATDQETFQTNDSFQTWTRVRAPPGILSDAQRHSLRDVIIFDQGTLFLVDGTVYLRTEDEFTKLDESRGISETGILGFSKRRWCQIRYLYKLASKKSILIAWSKTTVYAGYATFRFVTLTDTAKLKDFLKLPQTDTLEVMSVEYLWHPLEAAVLLSHCSVCTTNTRNIRIVIYSAIFQTWTLQDFELQLPKEAILEFRFLYSAMPDIIMWDQHHVYYSYKNFTVVGTISTPSGETNLSSLSQGSKIHQVLTDRIGNVVVKMENNVMFYIKADITEAVILHTWVNTTAKTVVLFDKSFEVCILYYNENLDEKYQLQTQPYPLILELQSINKDLGDWCPYLAFQHNIHSQFYHMDKGESLTIWSQIVYPENRGLYIVVEHYGSSVMTWTQNLEYEIASGFCTKTMITRFFQTTNYELVDNYYQLQKENTGLMLLQFRPSEFSRTCLTAKPVFEIDVGCDSSKYIMVRGFNKSRCQRRDFSYVIDKELLRESLSDNLKVRYDVAKYGCPLTLELGQMFQPIVELYDENGFIKIVDANFILWEIHGRNDYTFNSTMEQNGCINEAQTWDSMIEENPDIPLDDVWGPQNYRPCFSYAIGKPGDLGQPYEILNYSNKNHIKWPMTYAGMYVYRLKILDPNYSFCNLTTIFAIESLGMIPRSSVYLVAALIFVLMLTFISILVLSYFWYLKIYRQF

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 9 polymer

description	EF-hand calcium-binding domain-containing protein 9
formula_weight	20942.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	I,i,Q

MKLTPGCFLWYLYMDKIYCLLSLRNVKALMVYFHLLDVHHRNTLNDVLFFHFLQHVTNLNKSQIGMIFDLLDWTAVGEIGFDQFYVLICILLAHQDHLEDHFMYRHSRPVFELLDLDGEMNIGAANFQNYRFLFNIKKQELRDLFHDFDITGDRLLNYKEFKLYTIFCTDKSID

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 10 polymer

description	Cation channel sperm-associated auxiliary subunit TMEM249
formula_weight	19898.6 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	J,w,j

MCWVMPPSVFVLEYYLDTLWKGTMLFIICLVFISCNVLREVKYQETWCFPAYGMVIGLWLMLSSIPQRRLVLNHTRGMYHFSIQGRTVCQGPMHLVYVRLALSSDAYGGRFFQLVLCGHKLEPLVLVQLSERYEQMEFLGRHLARKLNINYFDYLASSYRHVVRHWPL

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 11 polymer

description	Cation channel sperm-associated auxiliary subunit zeta
formula_weight	17504.6 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	K,x,k

TANVSVSDVCEDFDEEGKSVRNRIRKYSQTISIRDSLNLEPEEIQQQARRELELCHGRSLEHGEDHEESETSLASSTSESLIFSLWKPHRTYWTEQQNRLPLPLMELMETEVLDILKKALITYRSTIGRNHFMTKELQGYIEGIRKRRN

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 12 polymer

description	Solute carrier organic anion transporter family member 6C1
formula_weight	68349.7 kDa
mutation	A224G
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	L,y,l

PIVLPFVQRFNNIDGFMTLYVAAVLIHGALFAVVDMTLNIYQVQFSLTRTEWYLMDFSDYIASFVVAIIIAHFGSKGNRTRWIAASCILMGLESMLFAFPFFTYEIIIPGRQSIELCMEENEKRNIICGNSVPNRSKCIYFHIGGQCIHGIAGMPIYILGITFIFDHIPTSSCGFYLAIGHSAYLIGYLLGMVGGLQNFQPPPKEKTVEIEPAKVYQLLQSGWWKTFLIIAAISFCVSFMMVCFPTSLPGAHKLRLAKRKEPPTIDRRLKDMKIQPHLKGFLHNIWHILKNPLMLTQAICKVSEYLTFNTSLYFLPHHLQTQFLITPGIASLLTGAFVLPGGIIGHFLGGLIVDRLEMTNKNKLKFTLVTTVVSVGLFLLIFFVECQTTTFAGINEDYDGYGQLGNLTADCNEYCDCTTSLYTSICGRDEKEYFSPCFAGCKATKVSQTEKTYYNCSCIKEGLAASDDEGQFIDAIAGTCDSDCLKLPLFFAFYFSATVFSNMCSIPVISIILQSVPANFTSLSLGVTYAIVKFVASVPAPLLFRLSSAIACIYWDNNRCGGKERCWIYNKNILVYEFMGIWMSSQLIIVLLNIYAIQIHDVVVHGEITE

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 13 polymer

description	Cation channel sperm-associated auxiliary subunit TMEM262
formula_weight	13350.9 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	M,z,m

MRWRDRIAVLCFPPGLMLTVAALILFFIHMGVFASDVHNFCVIHNYDHMSFRYTVVLIFSQVISIGWAAMGSLYAEMTGDKFLRCFALTILILNGAMFFNRLCLEFLAINYREER

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 14 polymer

description	Unknown protein
formula_weight	2401.0 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	N,P,O

XXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 15 branched

description	;beta-D-mannopyranose-(1-2)-beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1235.1 kDa
src_method	man
entity_count	3

Entity 16 branched

description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	586.5 kDa
src_method	man
entity_count	15

Entity 17 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	6

Entity 18 branched

description	;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1235.1 kDa
src_method	man
entity_count	3

Entity 19 branched

description	;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	910.8 kDa
src_method	man
entity_count	3

Entity 20 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	man
entity_count	27

Entity 21 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	3

▶

6. Citations (1)

▶

resolution	6.80 Å
resolution_method	—
num_particles	69708

fit	/app/data/saxs_computation/ub/9ubx/9ubx.fit
pddf	/app/data/pr_computation/ub/9ubx/9ubx.pr.out
profile	/app/data/saxs_computation/ub/9ubx/9ubx.dat
